127
WWW.VORONDESIGN.COM

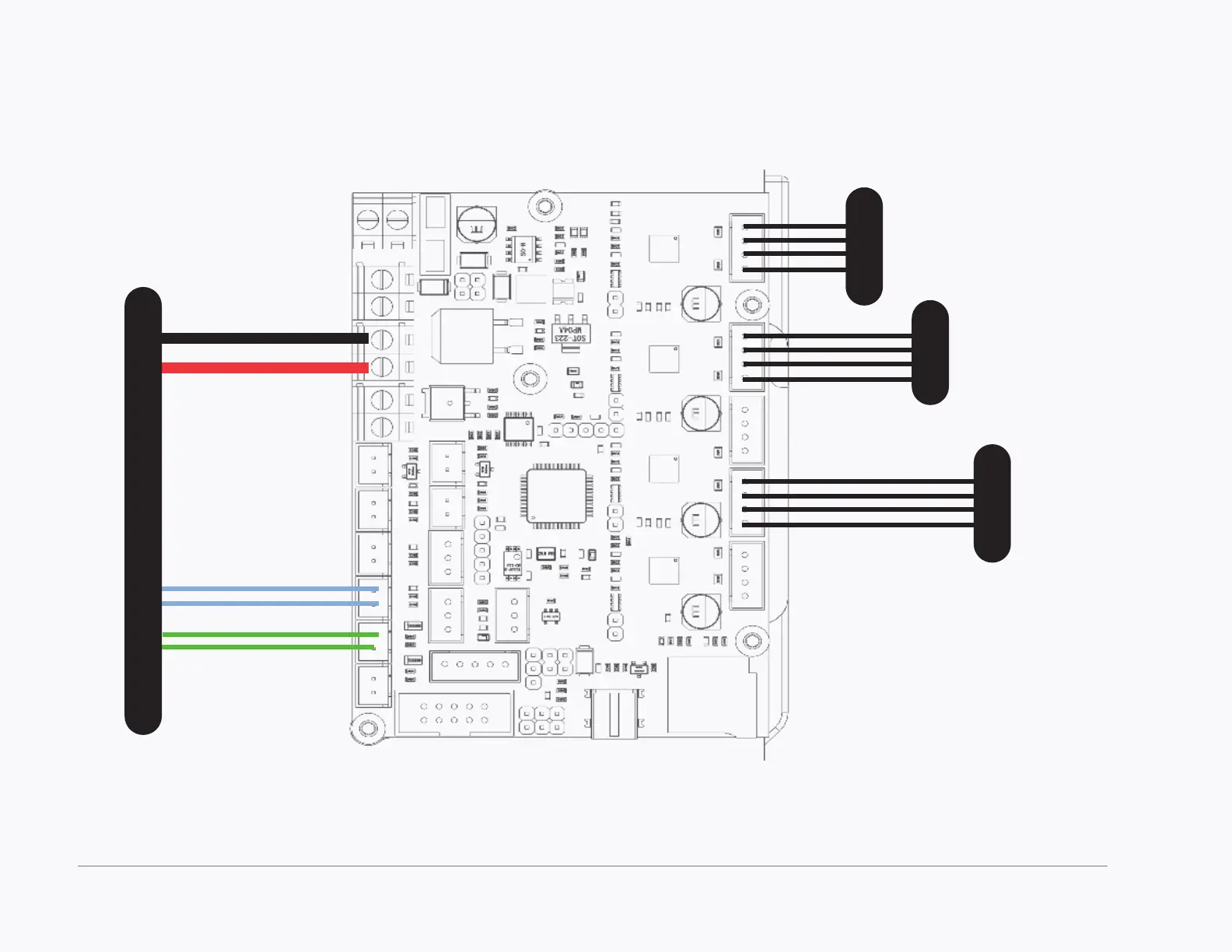

“X” Motor
Y Motor
“Z” Motor
MOTOR CONNECTIONS
4x 0.25mm²(AWG24) or larger
Y ENDSTOP
2x 0.25mm²(AWG24) or larger
BED THERMISTOR
2x 0.25mm²(AWG24) or larger
Bed
BED HEATER
2x 1mm²(AWG18) or larger
CONTROLLER WIRING
