FRAME
VERIFY DIMENSIONS

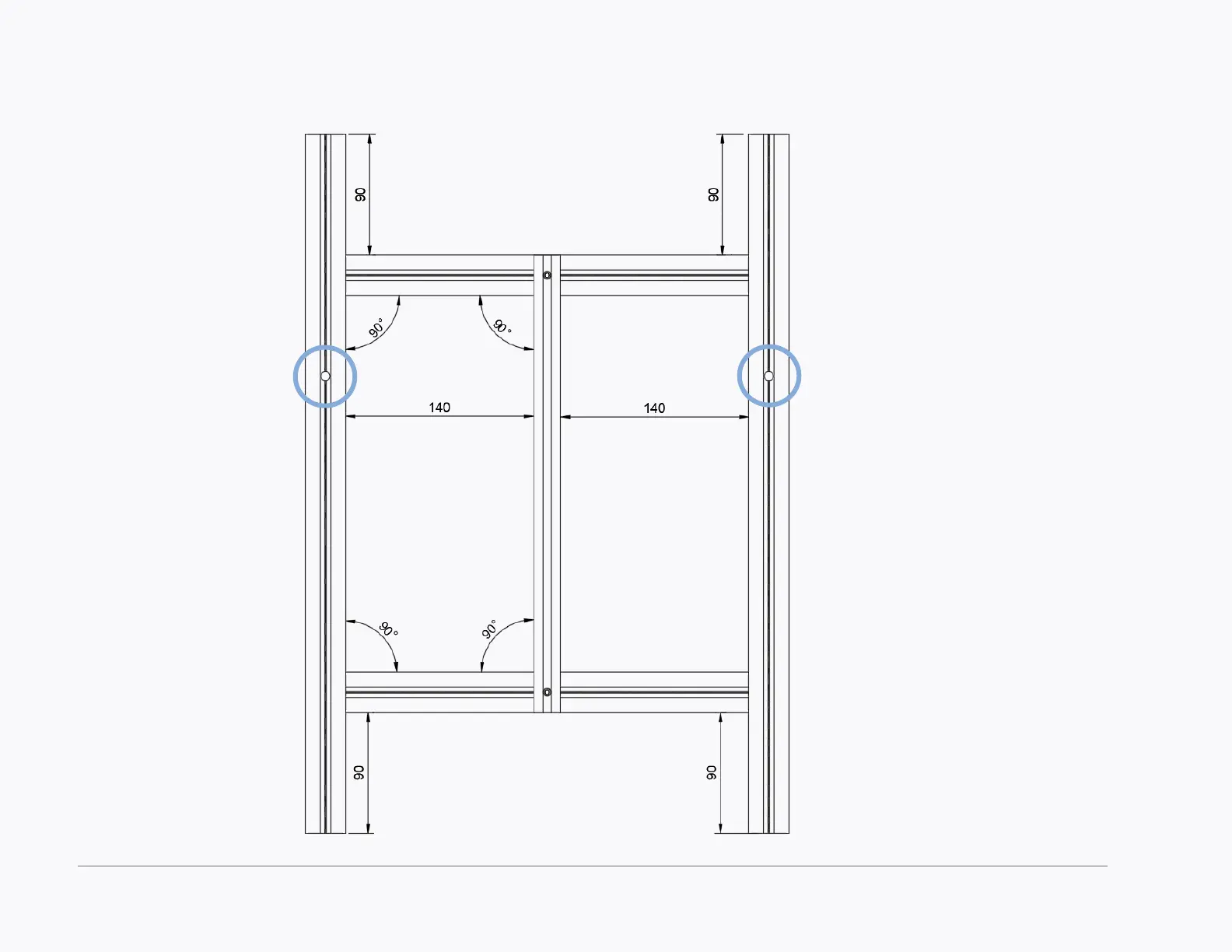

Make sure the frame is square and that all
positions are set correctly before moving on.
Check the 90° angles with a machinist square.
MIND ACCESS HOLE POSITION
We do our best to call out things that may bite
you later in the assembly process but may skip
things that seem obvious to us. If in doubt
please refer to the CAD model, it might save
you some considerable time down the road.
