18
WWW.VORONDESIGN.COM
M5x10 BHCS
M3x8 SHCS
M5x10 BHCS

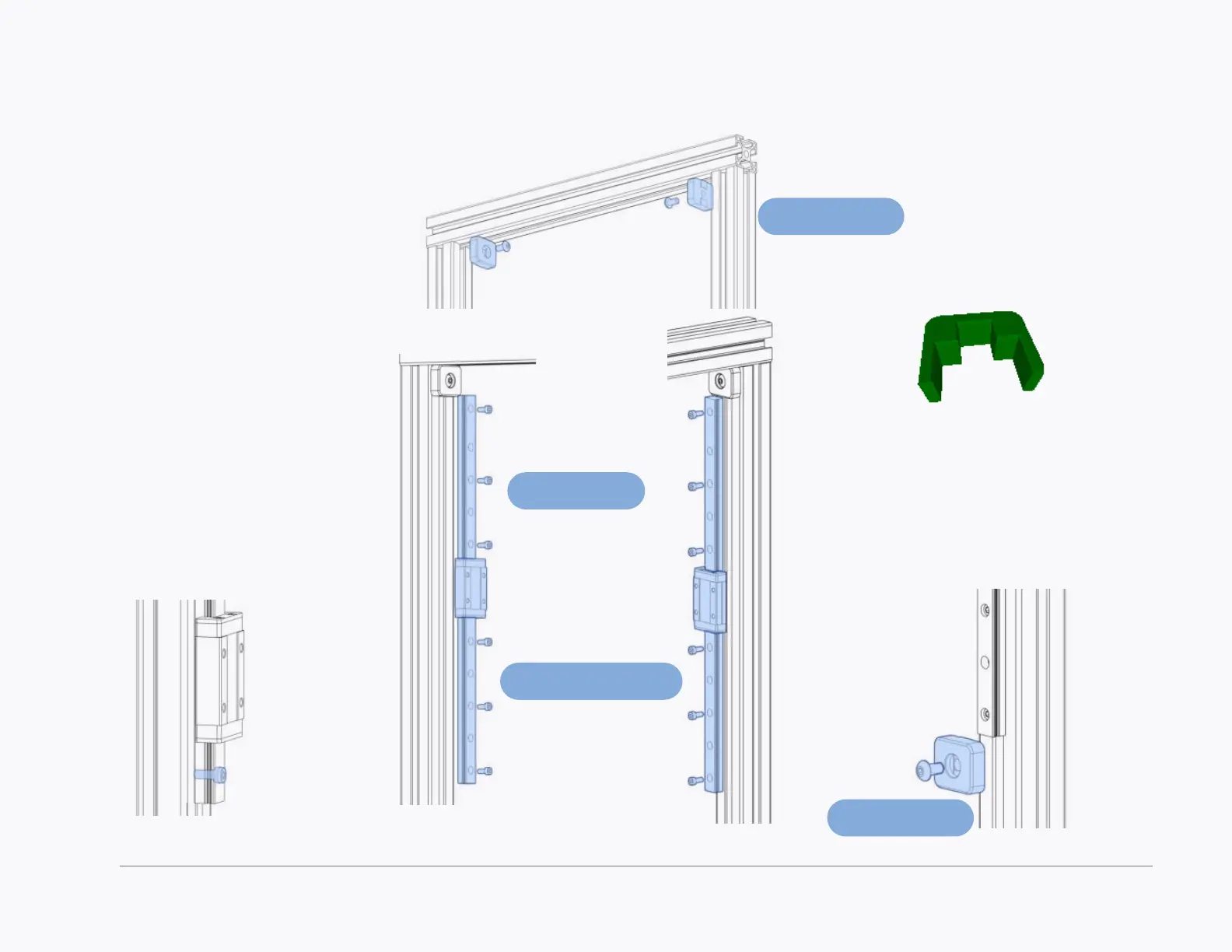

MGN12 Linear Rail
Z RAILS
CENTERED RAIL INSTALLATION GUIDE
Use the guides to position the rail in the center
of the extrusion prior to fastening the bolts.
NO STOPPER ON LEFT RAIL
The left rail does not have a stopper in place
to prevent the carriage from sliding off the rail.
Some rails come with little plastic stop pins,
you can leave the bottom one in place.
If your rail does not have these stop pins leave
the last bolt slightly loose to act as a stopper.
Tip: Mark the location with some tape to draw
your attention to it later.
MIND THE CARRIAGE
The carriages are designed to slide along the rail easily.
This unfortunately also includes sliding off the rails.
Dropping the carriage likely irreparably damages it.
