M3x8 SHCS
BED CARRIAGE
CARRIAGE MODIFICATION
If you sourced an unmodied carriage (e.g. a Prusa
replacement part) you’ll need to modify the hole pattern.
Temporarily mount the drill jig to the carriage.

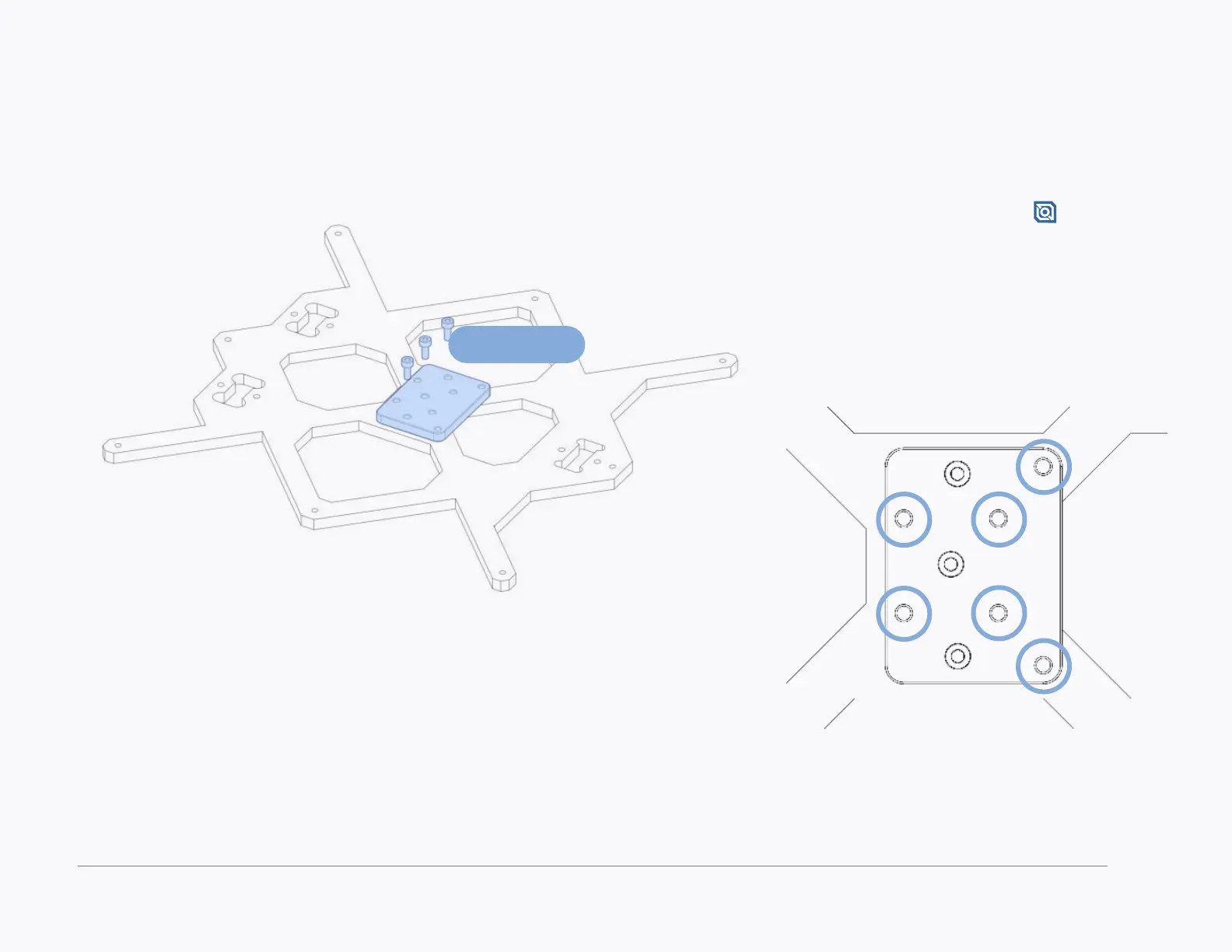

Drill the 6 holes marked on the right with a 3mm or 3.2mm
drill bit.
Remove the jig after you have drilled the holes.
FINISHED CARRIAGE
Some vendors offer carriages with the bolt pattern
required for the Voron Switchwire.
If you sourced a premachined carriage you can skip this
step.
