X AXIS
CHECK ORIENTATION

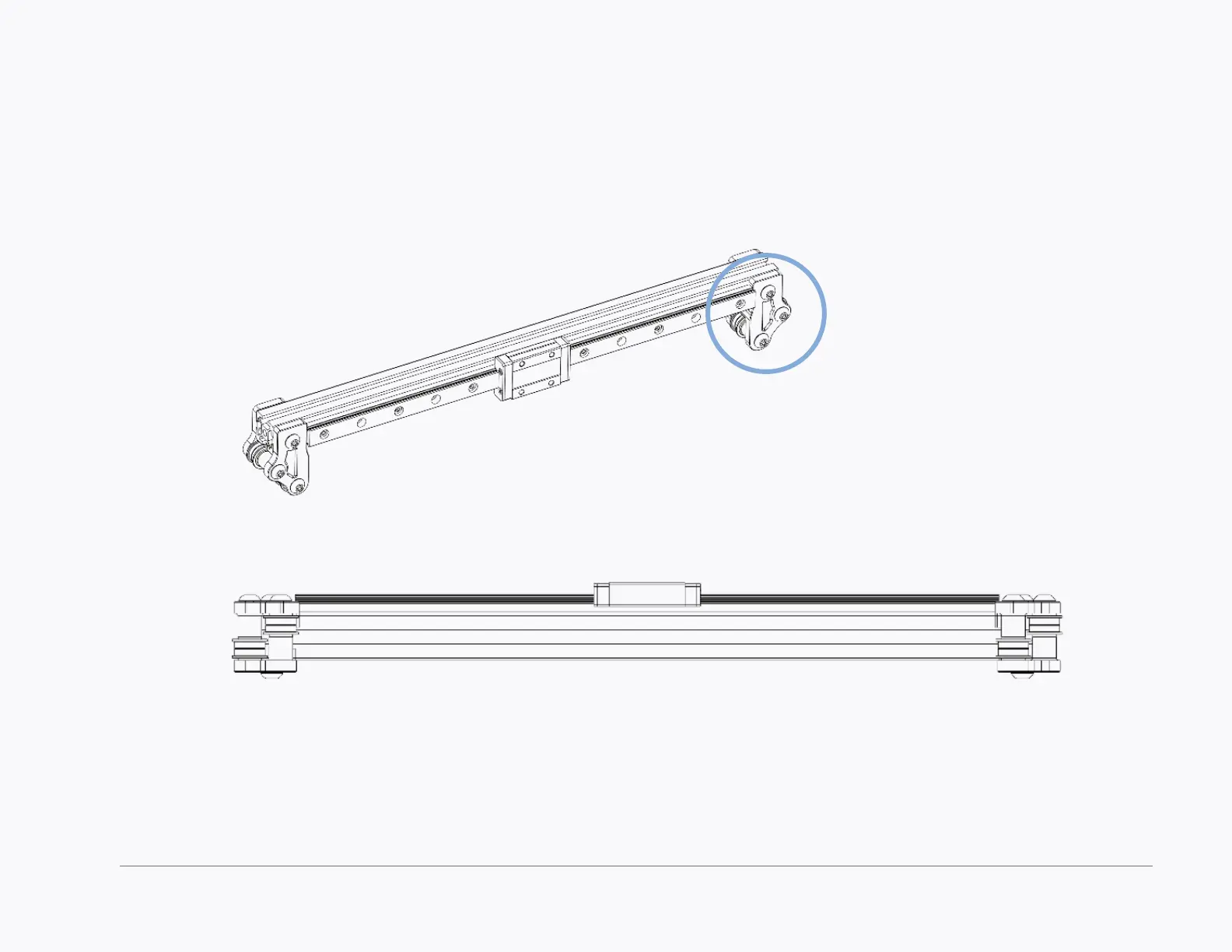

Make sure the XZ joints are oriented
correctly. The reliefed/cutout section points
towards the front.
The idlers towards the bottom.
