61
WWW.VORONDESIGN.COM

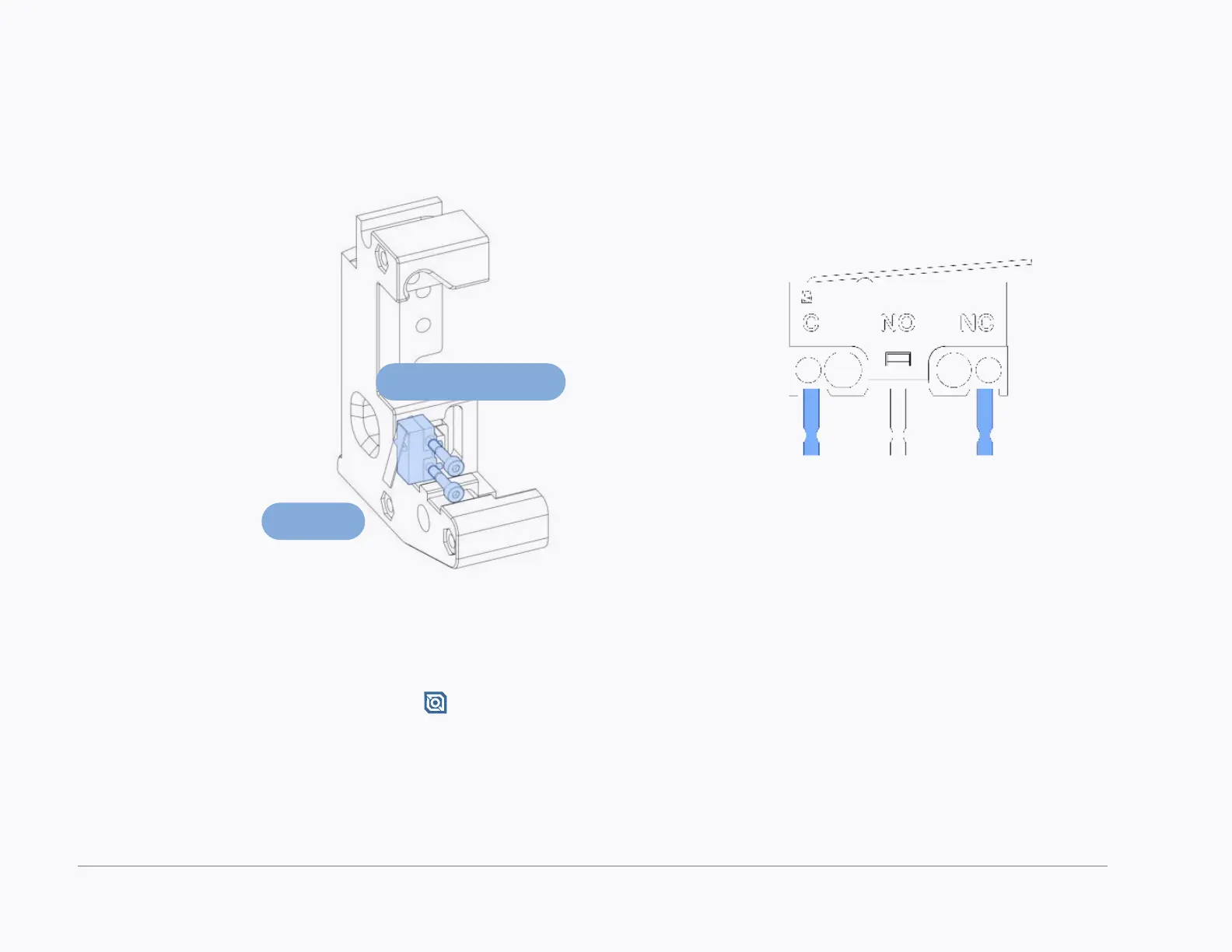

END-STOP SWITCHES FOR X AND Y
End-stops are wired in a “Normally Closed” conguration.
On microswitches those are the 2 outer terminals indicated by
C and NC.
Prepare the switches for X by soldering 150mm of wire to
each of the outer terminals.
Microswitch
M2x10 Self Tapping
PRESOLDERED WIRES
Route the wires through the slot to the front of the
carriage. Only attach the connector on the crimps after
you routed them to the front.
LDO MOTORS
®
To Next Page
