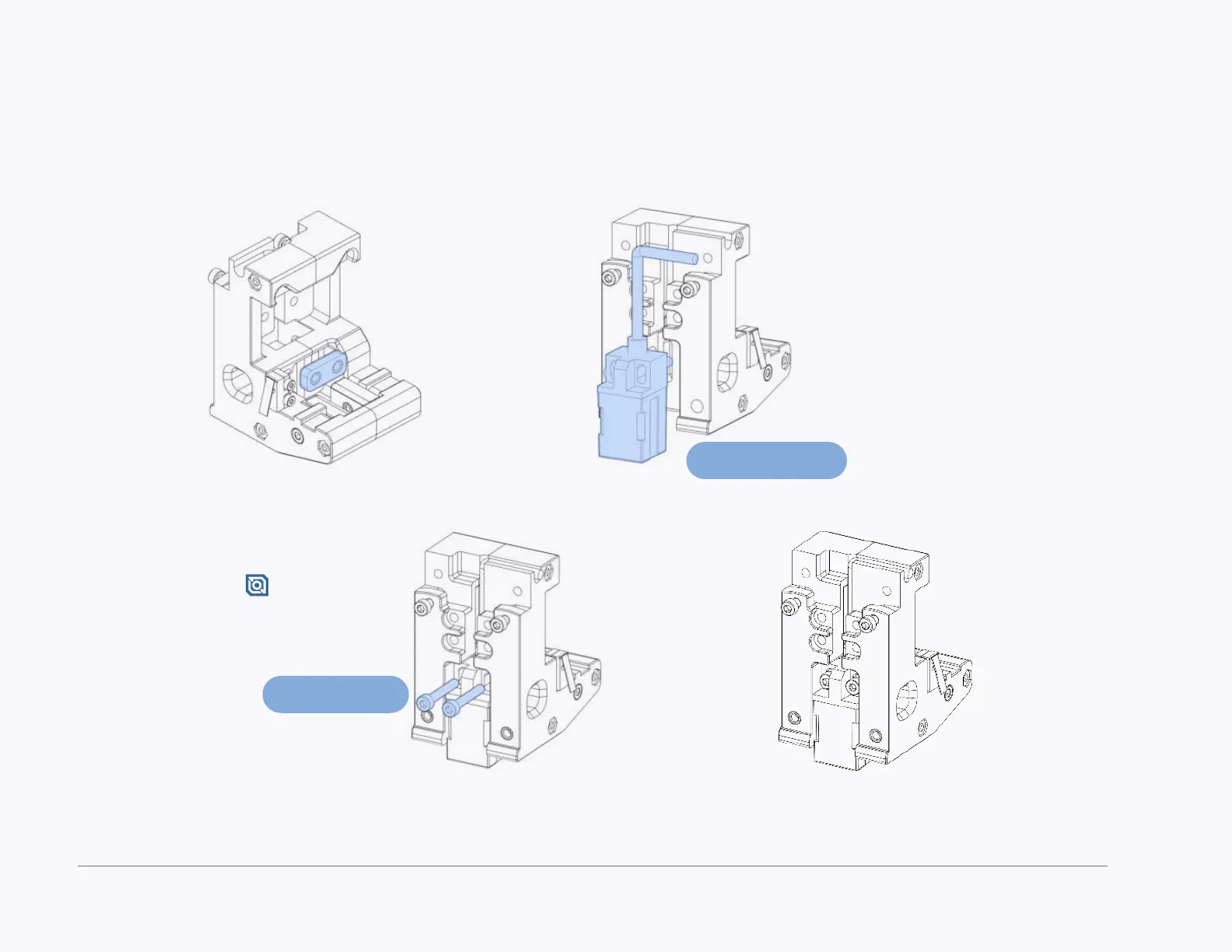

Inductive Probe
M3x20 SHCS
X CARRIAGE
PROBE WIRES
Unless your probe comes preterminated cut
the probes wires to about 15cm. Don’t cut
them ush with the carriage frame.
OTHER PROBE TYPES
The picture shows a PL-08 probe. The
recommended Omron TL-Q5MC probe will
t in the same space but requires M3x25
SHCS.
Other probes with a similar form factor and
characteristics might work as well.
