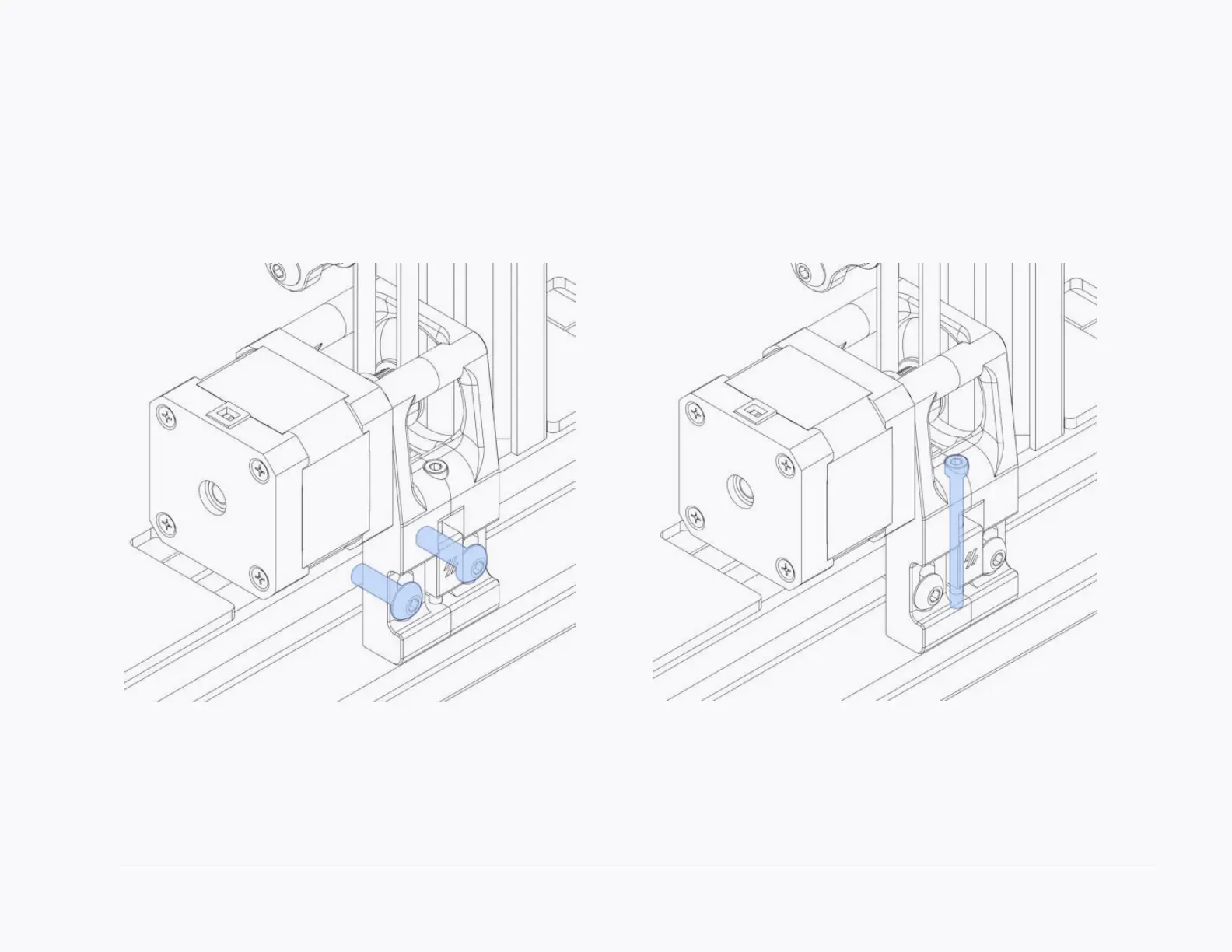

BELT TENTIONER
ADJUSTMENT SCREW
Turn the screw clockwise to pull a higher tension
on the belt.
LOCK SCREWS
Slightly loosen these screws before adjusting
the belt tension.
Fasten them again after adjusting the tension.
BELT TENTIONER FOR “X” AND “Z”
The motor mounts for the “X” and the “Z” motors have build in tentioners.
