CLOCKWORK

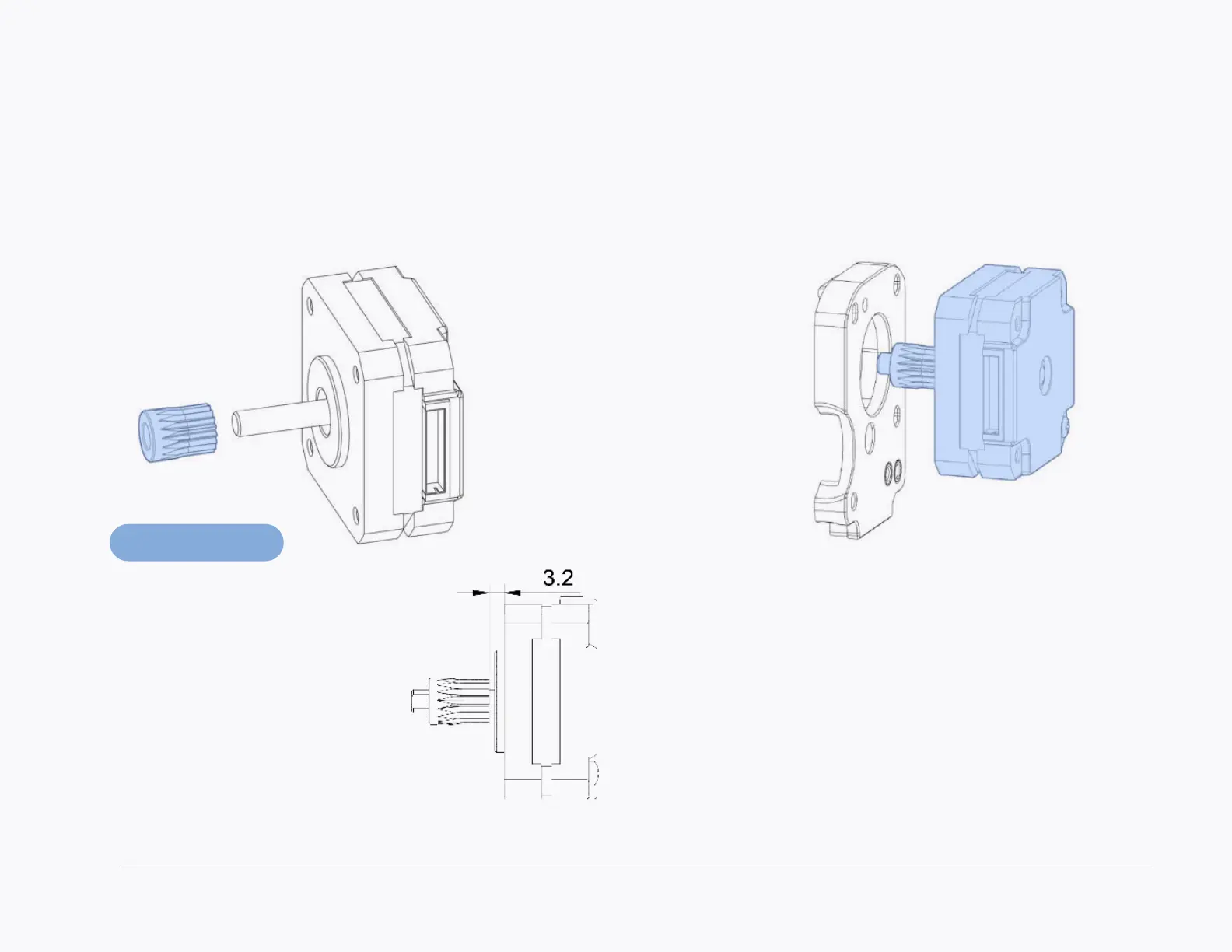

BMG Drive Pinion
ALL UNITS ARE METRIC
If a unit is not specied
assume it’s metric.
MOTOR ORIENTATION
Rotate the motor in such a way that
the connector/wires are on the left side
when looking at it from the back.
This side will be covered by the cable
cover later.
