The displayed HCD yardage number is corrected for shot angle
and needs no extra user input; shooters simply use the appropriate
level ground bullet drop and
wind adjustment for the
range displayed and shoot.
Archers use the appropriate
level ground sight pin for the
range displayed and shoot.
HCD Mode
The Ranger 1000 provides two range modes: HCD (Horizontal
Component Distance) and LOS (Line of Sight). Both modes
offer a Scan feature.
Using the HCD Mode
Use the HCD range mode in the following situations:
• Rifle shooting on level ground at any range.
• Rifle shooting out to ranges of 800 yards with mild slopes
(less than 15 degrees).
• Rifle shooting out to ranges of 400 yards with moderate
slopes (15 to 30 degrees).
• For all archery shooting.

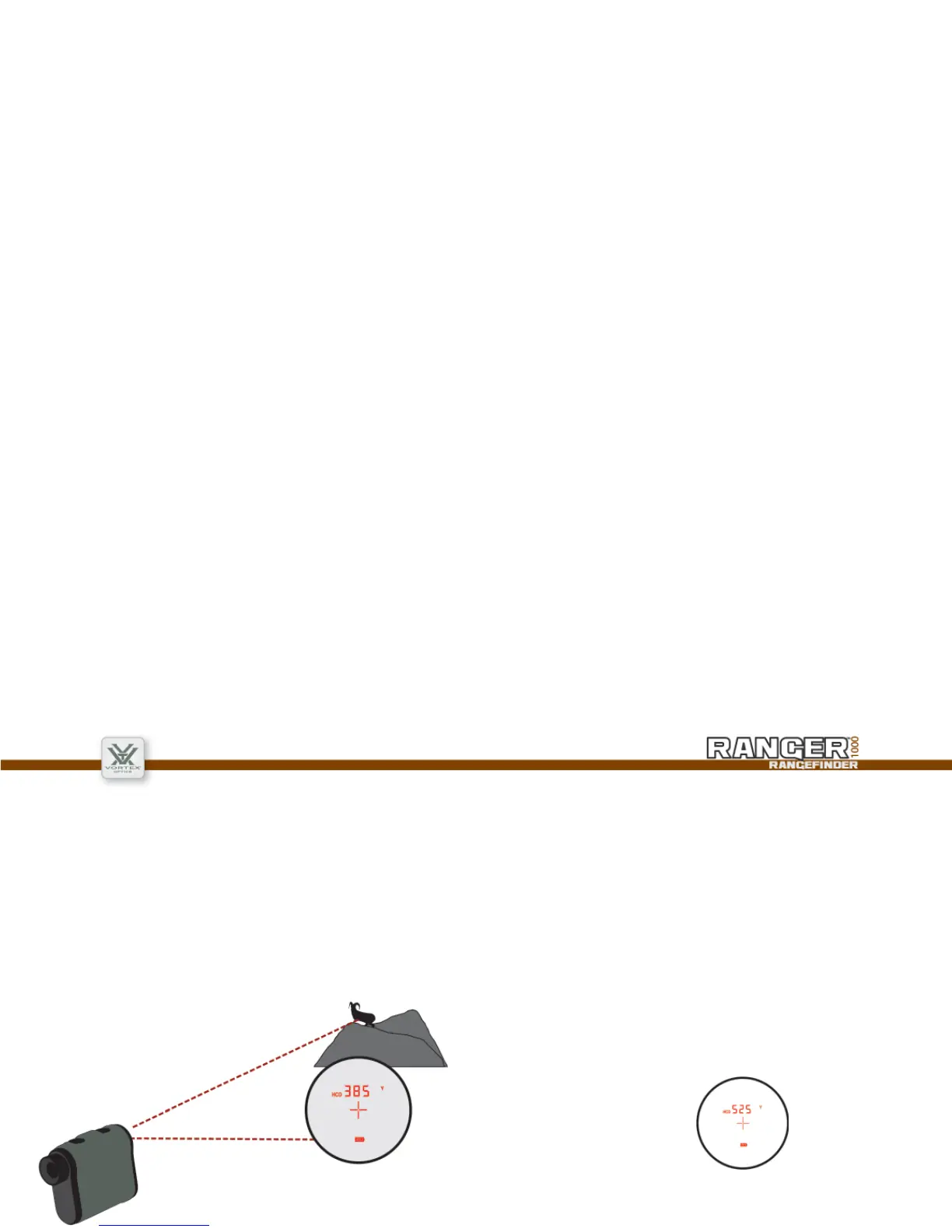

RANGING MODE EXPLANATIONS
8 9
500 Yard Line of Sight
Horizontal Component Distance
385 Yards
The Ranger 1000’s HCD range display is intended to be the
primary mode—used for most all rifle and archery shooting
conditions. The yardage number displayed is the critical
horizontal component distance.
Use 525 yard level
ground drop data to
make shot.
Note: See LOS mode, page 13, for method of reading slope degree.
