Vtron C-DX503 - Page 24

User Manual Visionpro
®
C Series Display Cube
- -
17
3）Ethernet Port
Connector Type
RJ45
Port Type
Standard 100M/10M Self-adaptive Ethernet Port
 CP30DSC Main Control Board(For VCL-3+ interface box only)

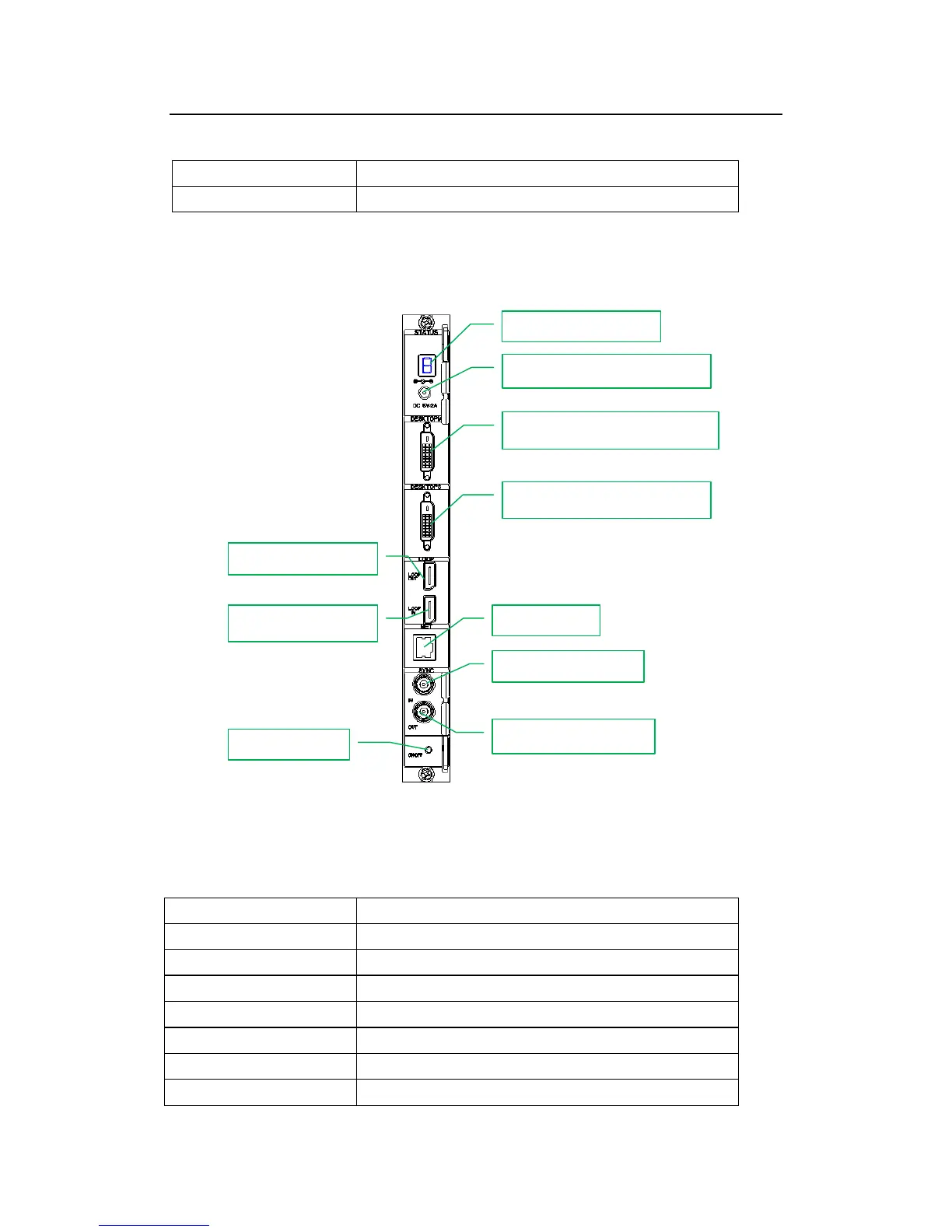

CP30DSC Main Control Board (3D Display Cube）
 Specifications of CP30DSC Main Control Board (3D Display Cube)
DVI Output Port
Connector Type
DVI-I
Signal Format
TMDS
Dot Clock Frequency
65MHz-330MHz
Horizontal Frequency
35KHz-135KHz
Vertical Frequency
60Hz/120Hz
Resolution
1024×768/1400×1050/1920×1080
Color Depth
24bit
Control Mode
I
2
C，SCL Frequency<100KHz
7-SEG LED indicator
Power output port(low voltage)
Master desktop signal input port
Slave desktop signal input port
Signal loop-out port
Signal loop-in port
Ethernet port
Sync signal input port
Sync signal output port
ON/OFF button
