 E-CP30SDI02 Signal Processing Board ( Optional)
CP30SDI02 Signal Processing Board
 Specifications of E-CP30SDI02 Signal Processing Board
SDI Signal Input Port
SDI
Connector Type
BNCx2
Signal Format
SDI
Resolution
480i, 576i, 720p, 1080i, 1080p
Vertical Frequency
23.98Hz~60Hz
Signal Amplitude
0.8Vpp

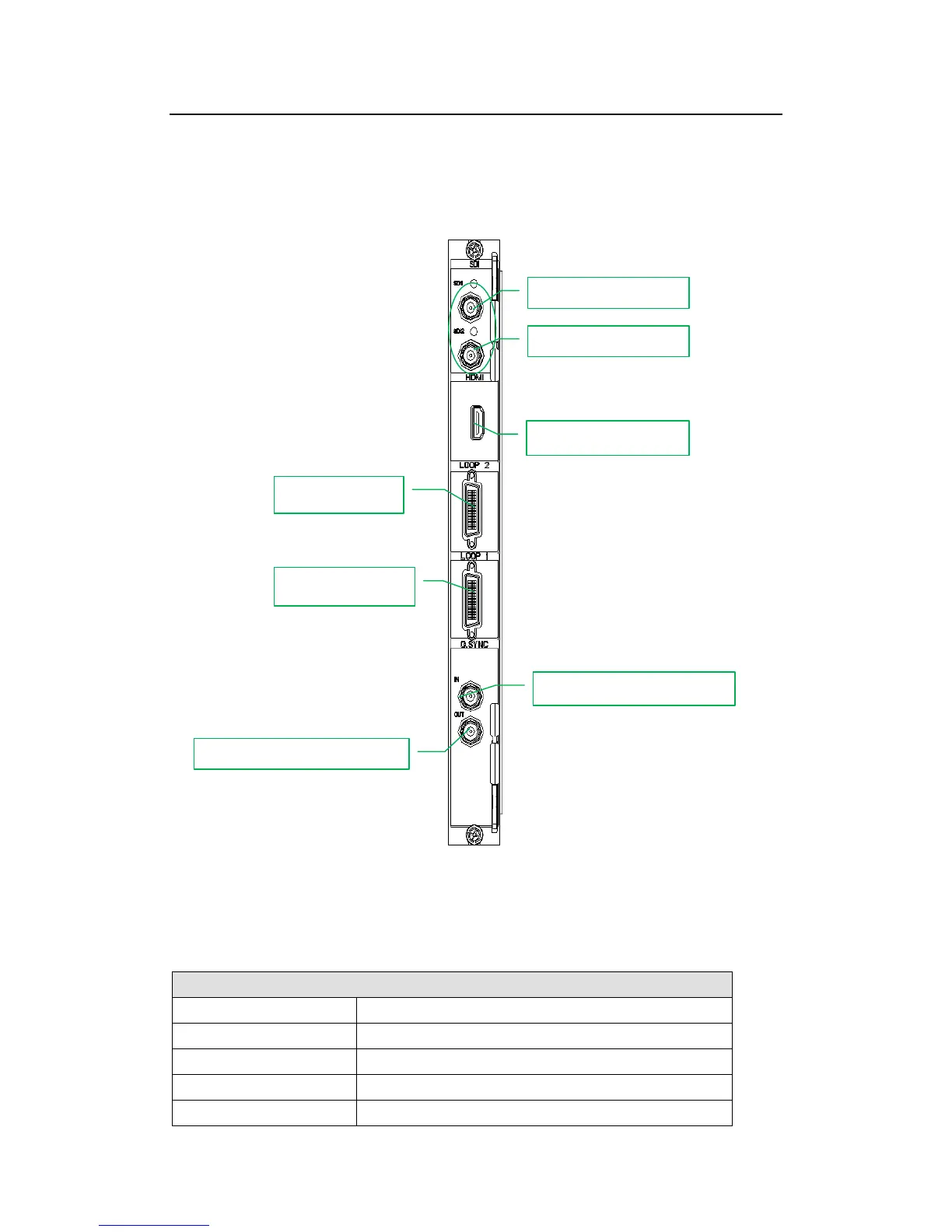

HDMI signal input port
Signal loop2 port
Signal loop1 port
SDI1 signal input port
Genlock sync signal input port
Vertical sync signal output port
SDI2 signal input port
