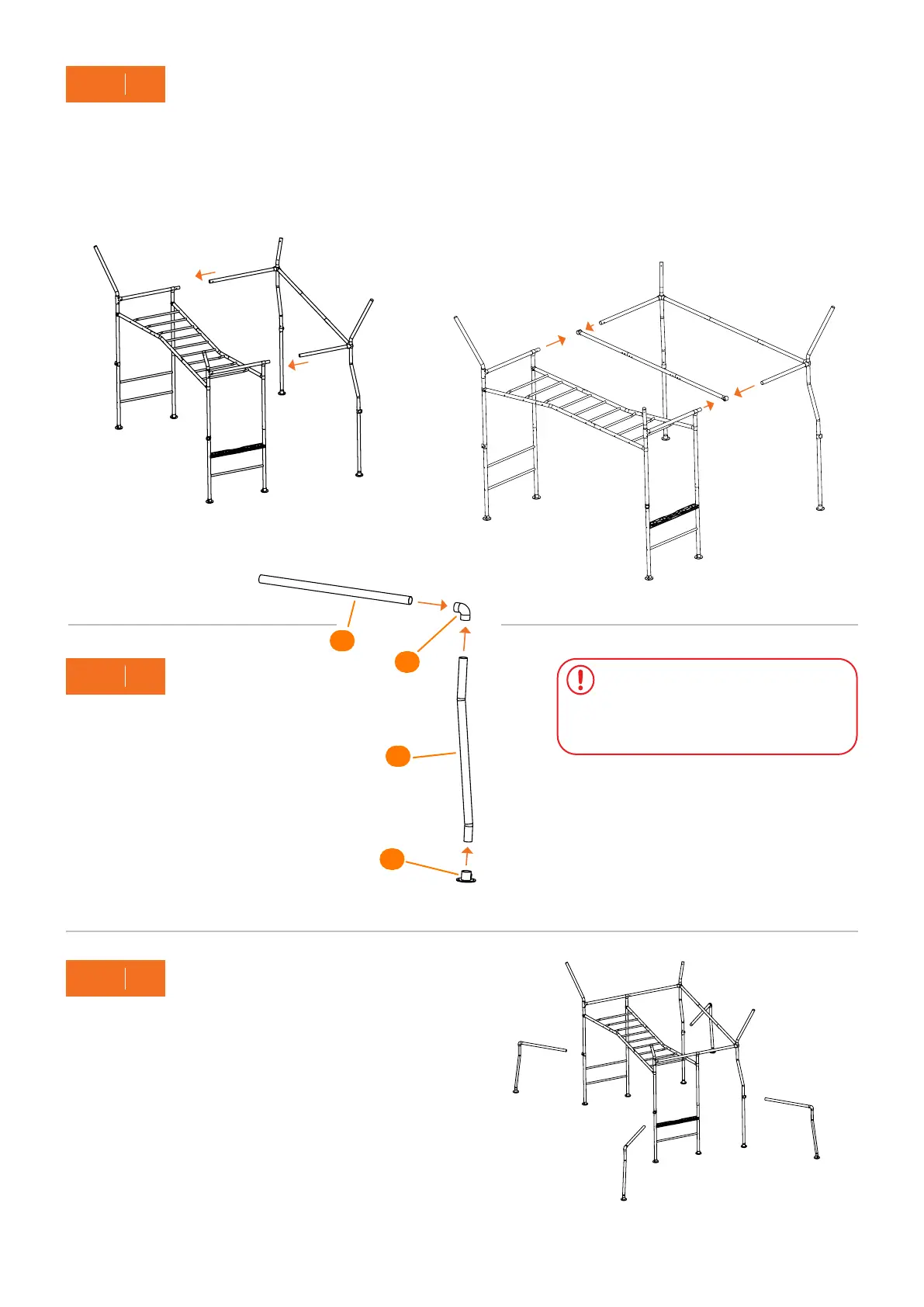

Slide the Long Side Rail and Short Side Rail into the Top
Rails above the climbing bars.
Important: Ensure that your frame matches the below –
particularly the Shade Tubes.
A.
If you are installing a Flying Fox attachment.
Position your Flying Fox Rail and connectors here.
B.
B. Repeat for the 3 remaining Flip Rails,
Angled Joiners, Flip Tubes and Feet.
WARNING: Do not force any part
too far into the Angled Joiner. This
will block the part on the other side
from connecting completely.
22
STEP
Insert the completed flip sections into the T-Joiners
around the frame, as indicated below for your model.
Important: Make sure the outer sections are positioned
at 45º, relative to the climbing frame section.
23
STEP
21
STEP
C1
C2
C3
B5
A. Slide a Flip Rail (C1) into one end
of an Angled Joiner (C3), and a Flip
Tube (C2) into the other. Insert a
Foot (B5) into the bottom.
To Next Page
