16
A.
B.

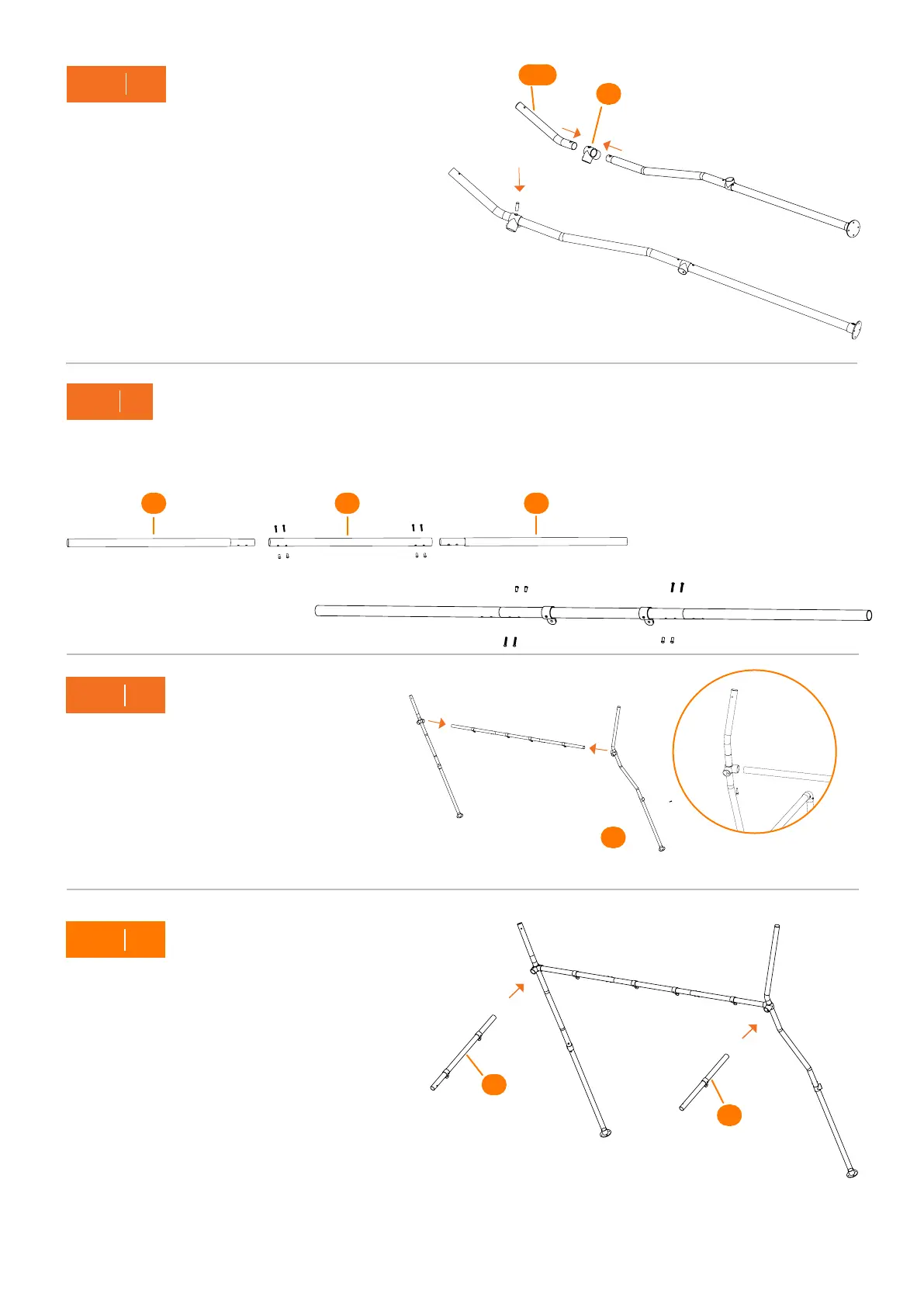

Insert an End Rail (E1) into either end of a Middle Rail
(E2).
If you will attach Standard Accessories:
Slide on the Accessory Joiners now, where you want to
position your accessories.
18
STEP
Insert the Short Side Rail (E4) into the 4-way Joiner
with the Long Outer Shade Tube, and insert the Long
Side Rail (E3) into the side with the Short Outer
Shade Tube.
Connect the completed Middle Rail and End Rail
set into the 4-way Joiners on the Outer Tube sets
from Step 17. Fasten the bolts on the End Rails.
Note: Accessory Joiners must face downwards.
Note: If you will attach Accessory Joiners to these
rails, connect them now.
19
STEP
20
STEP
E1
E2
E1
E3
E4
A.
B.
Insert a 4-way Joiner (F4) into the top of both
Upper Outer Tubes.
Connect a Long Outer Shade Tube (L1) through
the top end of one 4-way Joiner (F4), and a Short
Outer Shade Tube (L3) on the top of the other
4-way Joiner.
If you will not attach a Shade Cover: Connect Spacers here instead.
Note: Make sure all screws face
downwards.
17
STEP
F4
L1/3
I
1 : 5
Insure the fasten bolt
Notice：make sure two side tube's hole face downwards
Note: The two End Rail
holes must face downwards.
E1
To Next Page
