W'eau WMP-003 - Exploded Diagram

- 12 -

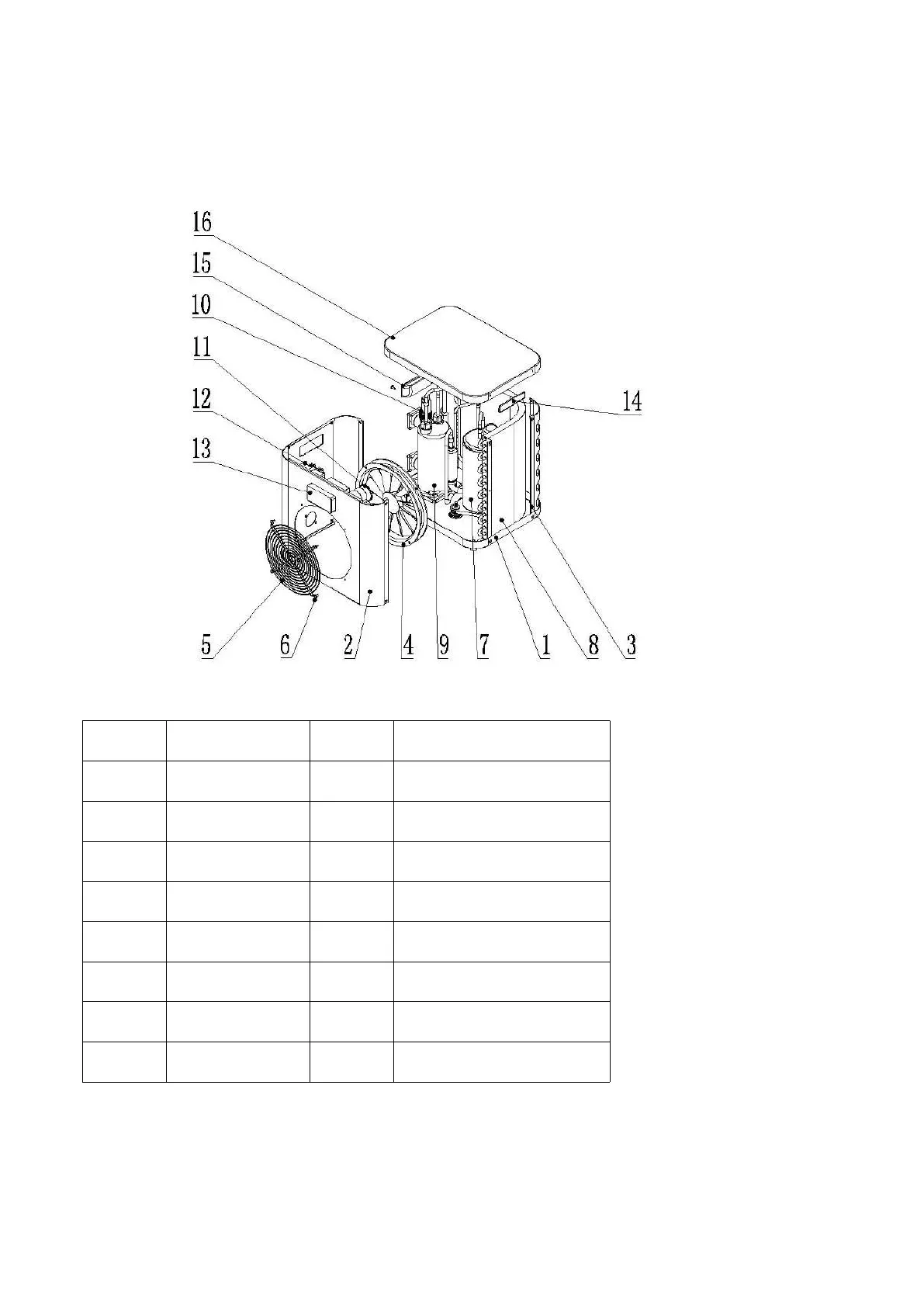

7.Exploded diagram
No.
Name
No.
Name
1
Base tray
9
Titanium heat exchanger
2
Front panel
10
Water flow switch
3
Back pillar
11
Capacitor
4
Fan blade
12
Switch
5
Fan grill
13
Controller
6
Screw
14
Lift
7
Compressor
15
Lift
8
Evaporator
16
Top cover
