5 System Configurations
51
WABCO Maintenance Manual MM-0112 (Revised 07-18)

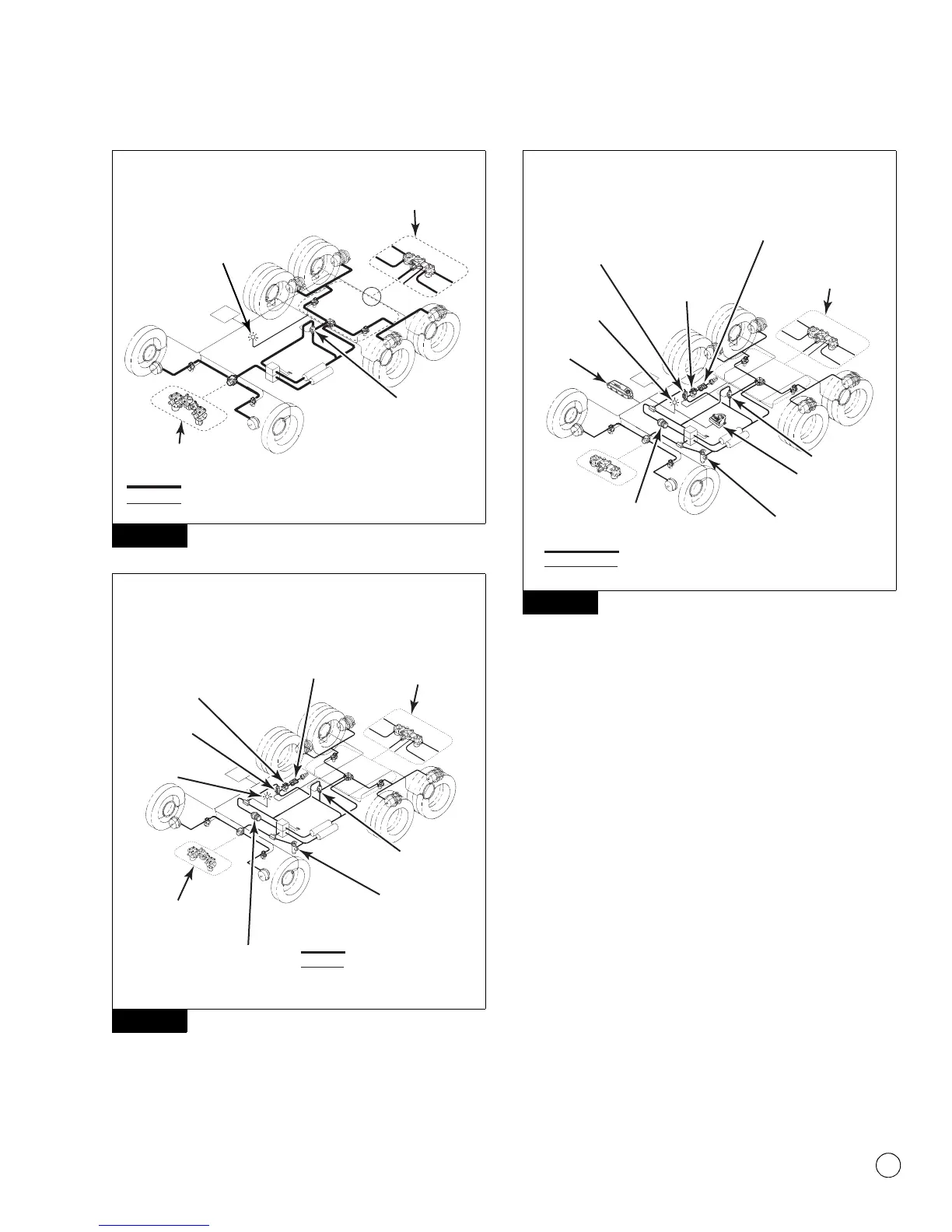

Figure 5.5
Figure 5.6
Figure 5.7
Figure 5.5
Figure 5.6
1003367e
AIR LINES
ELECTRICAL LINES
VALVE PACKAGE
INSTALLATION (REAR)
6S/4M ABS/ATC
LAMPS
ATC VALVE
VALVE PACKAGE
INSTALLATION (FRONT)
4007813b
VALVE PACKAGE
INSTALLATION
(REAR)
AIR LINES
ELECTRICAL LINES
4S/4M RSC/ATC
(ALSO AVAILABLE IN 6S CONFIGURATIONS)
VALVE PACKAGE
INSTALLATION
(FRONT)
LAMPS
TRAILER
ACTIVE
BRAKING
VALVE
TRAILER STABILITY
CONTROL
MODULATOR
(OPTIONAL)
PRESSURE
SENSOR
(OPTIONAL)
ATC VALVE
FRONT AXLE
ACTIVE
BRAKING
VALVE
(OPTIONAL)
TRACTOR
PROTECTION
VALVE
Figure 5.7
4007814b
VALVE PACKAGE
INSTALLATION
(REAR)
AIR LINES
ELECTRICAL LINES
4S/4M ESC/ATC
(ALSO AVAILABLE IN 6S CONFIGURATIONS)
ESC
MODULE
LAMPS
TRAILER
ACTIVE
BRAKING
VALVE
TRAILER STABILITY
CONTROL
MODULATOR
(OPTIONAL)
PRESSURE
SENSOR
ATC VALVE
SAS
FRONT AXLE
ACTIVE
BRAKING
VALVE
TRACTOR
PROTECTION VALVE
