3. Drilling stands B1200 | B1230

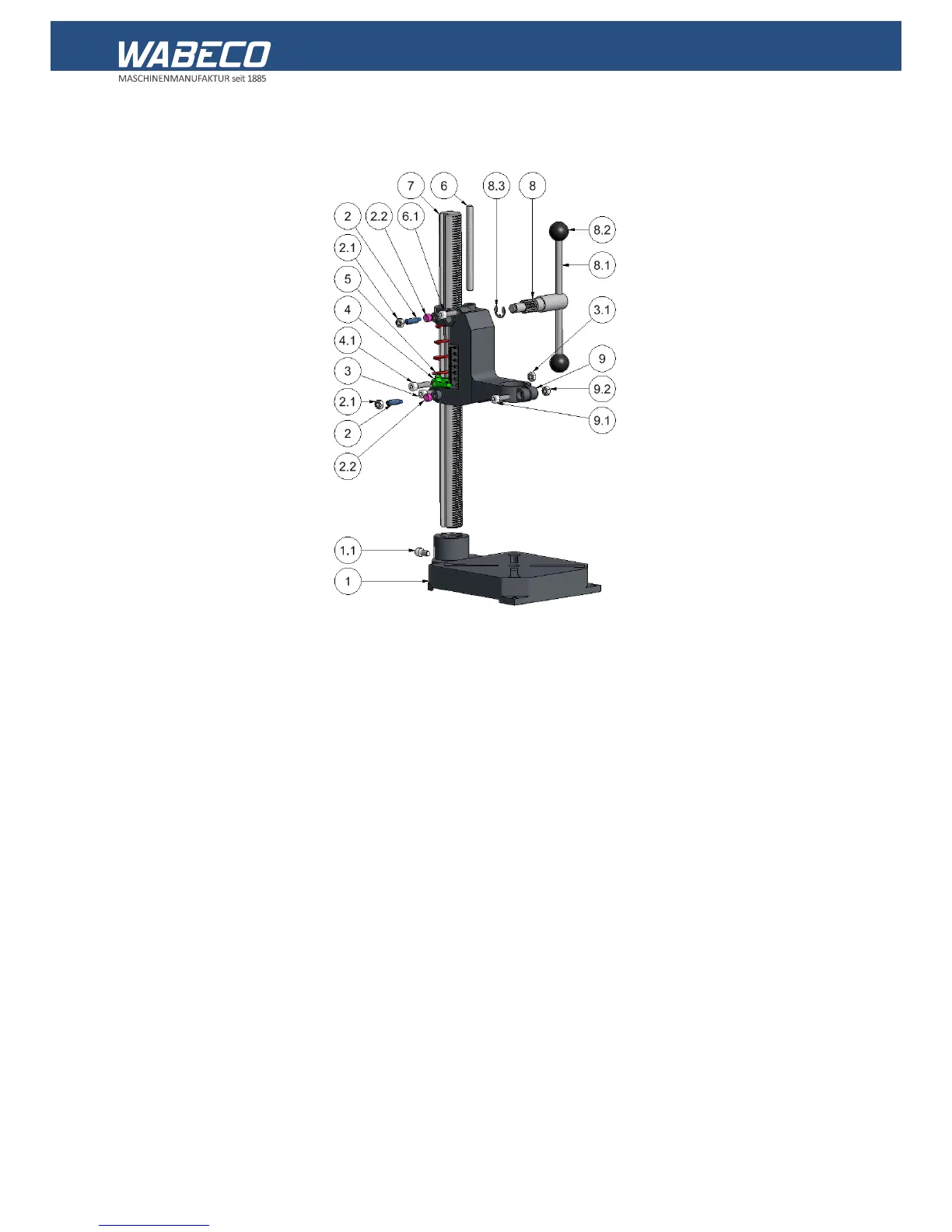

3.8 Drawing and legend B1230
Part no. Pieces Order no. Designation
1 1 51006831-0003 Base plate
1.1 1 16191200008016 Clamping screw
2 2 51508591 Eccentric setscrew
2.1 2 16193400008000 Nut
2.2 2 51508019 Guiding roller
3 1 16191200008025 Screw
3.1 1 16198500008000 Nut
4 1 51006831-0002 Locking ring
4.1 1 16191200008030 Clamping screw
5 1 51502028 Retaining spring
6 1 51004010-0002 Depth stop
6.1 1 16191200008025 Screw
7 1 51004035-0002 Steel column
8 1 51004025-0001 Feed shaft
8.1 1 51004010-0003 Feed lever
8.2 2 51508311 Ball
8.3 1 16067990012000 Locking washer
9 1 51006831-0001 Machine support
9.1 1 16191200008025 Clamping screw
9.2 1 16198500008000 Nut
