5. Work table order no. 22310
5.1 Rotate and swivel the work table
The work table (3) can be swiveld by 360° and be rotated by its rotating unit (2).
To rotate the work table please proceed as follows:
1. Loosen clamping screw (2.1)
2. Rotate the work table (3) to the desired position
3. Retighten the locking screw (2.1)
To swivel the work table please proceed as follows:
1. Loosen clamping screw (2.1)
2. Remove the work table (3) from the rotating unit (2).
3. Loosen the locking screw (2.2) by approximately 3-4 mm using an Allen key.
4. Pull the rotating unit (2) out of the notches at the frontal sides.
5. Turn the work table to the required position and re-engage it in the notches (this adjustment can only be made in
steps of 15° each!)
6. Retighten the locking screw (2.1).
7. Replace the work table (3)
8. Retighten the clamping screw (2.2)
By loosen the clamping screw (1.1) the work table can be adjusted in its height respectively it can be rotated 360°
around the steel column (7).

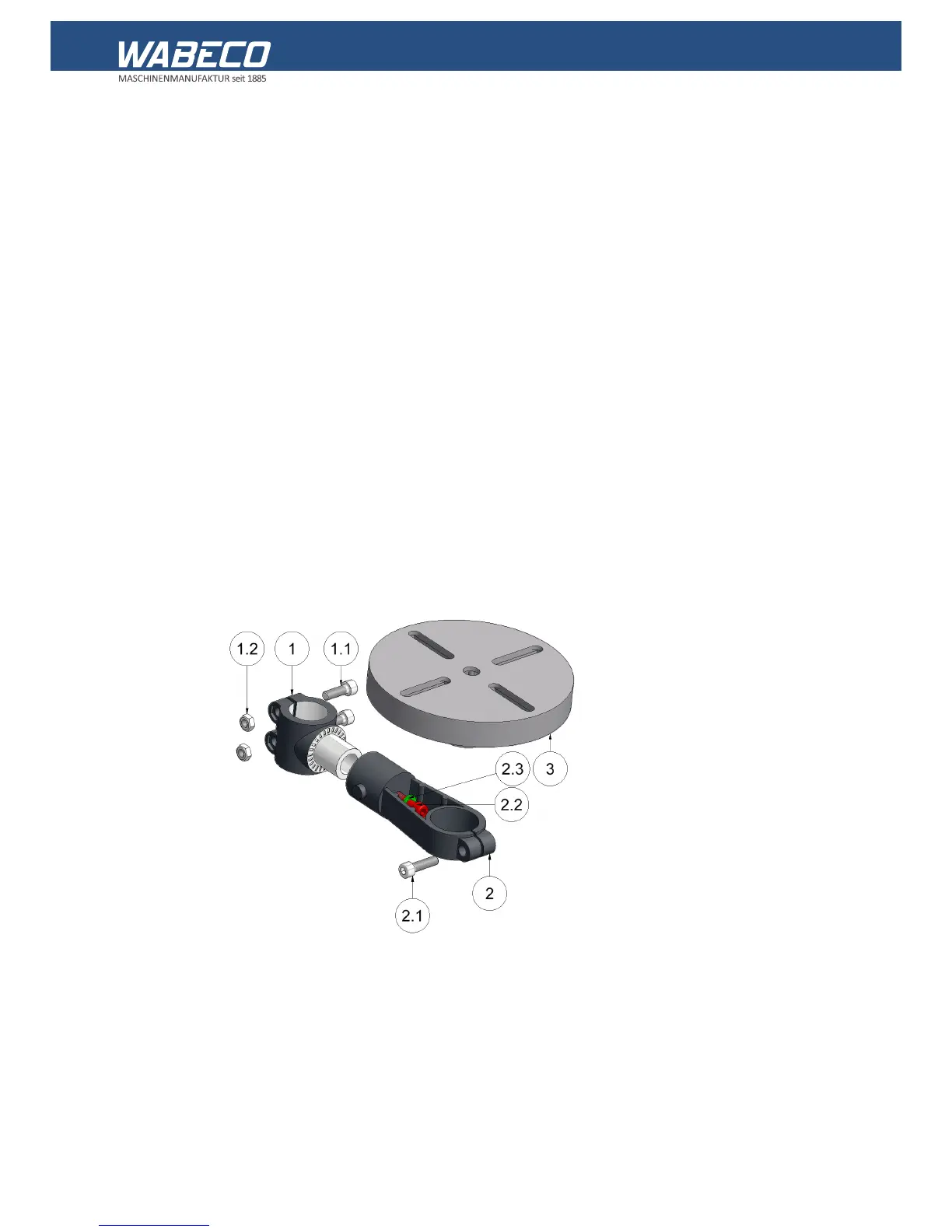

5.2 Drawing and legend
Part no. Pieces Order no. Designation
1 1 51006831-0007 Post mount
1.1 2 16191200008025 Screw
1.2 2 16193400008000 Nut
2 1 51006831-0008 Rotating unit
2.1 1 16191200008030 Clamping screw
2.2 1 16191200008045 Screw
2.3 1 16112500008001 Washer
3 1 51006831-0009 Work table
