4. Drilling milling stands BF1240 | BF1242 | BF1243 | BF1244
4.1 Versions
Drilling milling stand BF1240
Solid steel column 500 mm, hexagonal steel boom 350 mm
No. 24400 without work table
No. 24404 with work table Ø 180 mm
Drilling milling stand BF1242
Solid steel column 500 mm, hexagonal steel boom 500 mm
No. 24401 without work table
No. 24408 with work table Ø 180 mm
Drilling milling stand BF1243
Solid steel column 750 mm, hexagonal steel boom 500 mm
No. 24500 without work table
No. 24504 with work table Ø 180 mm
Drilling milling stand BF1244
Solid steel column 1000 mm, hexagonal steel boom 500 mm
No. 24454 without work table
No. 24457 with work table Ø 180 mm

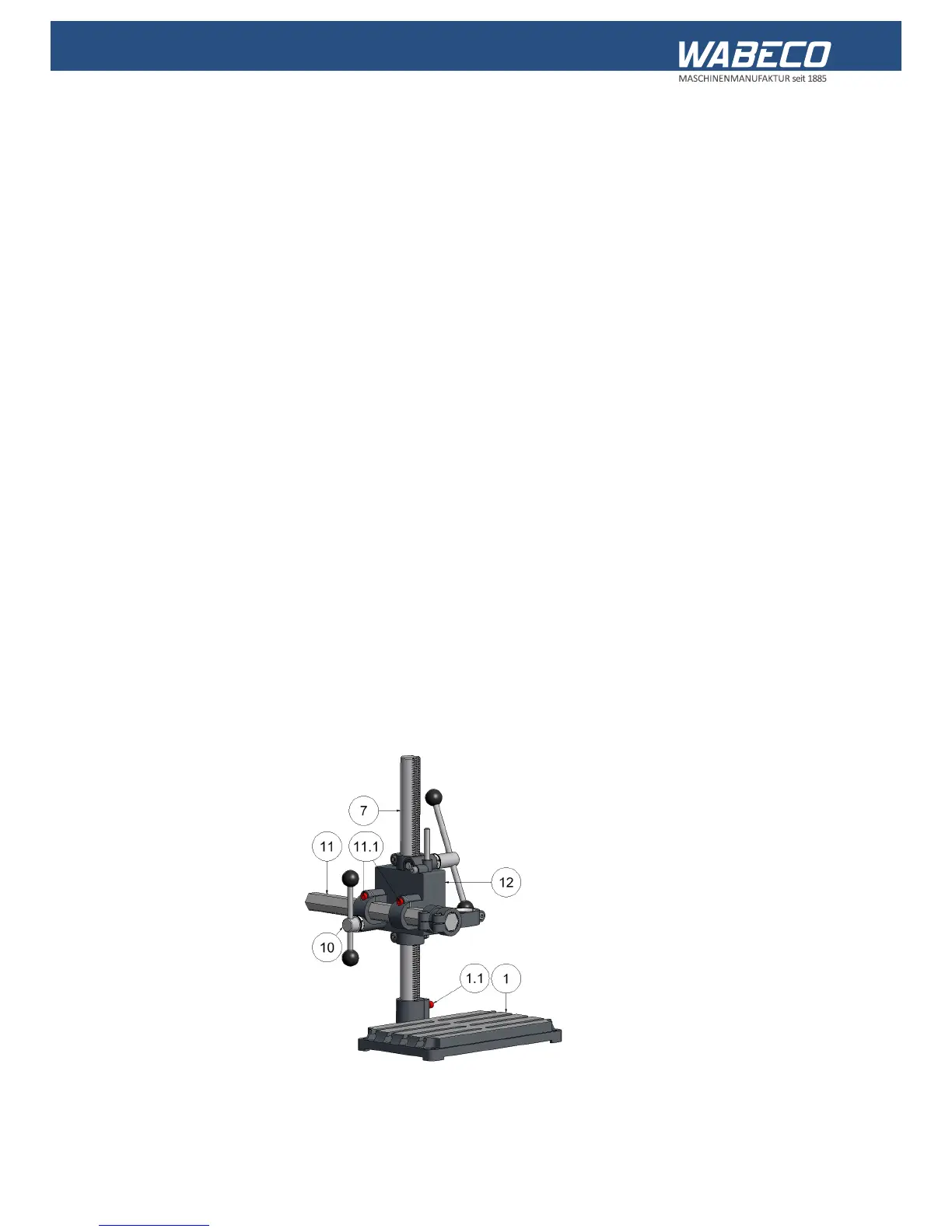

4.2 Assembly
1. Please put the column (7) into the hole of the base plate (1).
2. Tighten the clamping screw (1.1).
3. Insert the hexagonal steel boom (11) into the hexagonal bore of the guide housing (12), so that the toothing of the
steel boom (11) and the feed shaft (10) t together.
4. By means of the clamping screws (11.1) the guide is play-free adjustable.
5. Not the drilling milling stand is complete and ready to work.
6. Fix the drilling milling stand to a strong support featuring absolute plainness and use 4 screws M8.
4.3 Lubrication
Prior to every use, some commercially available lubricating oil should be applied to the steel column and to
the rotating points of the feed shaft. The housing and the hexagonal steel boom of the drilling and milling
stand must be moved up and down in this process.
