Wabtec Microphor MICROFLUSH LF-210 - LF-219 Rough-In Dimensions; LF-219 Rough-In: Downward Discharge; LF-219 Rough-In: Rear Discharge; LF-219 Rough-In: Integral Flush

MICROFLUSH Toilet Manual 13 March 2005

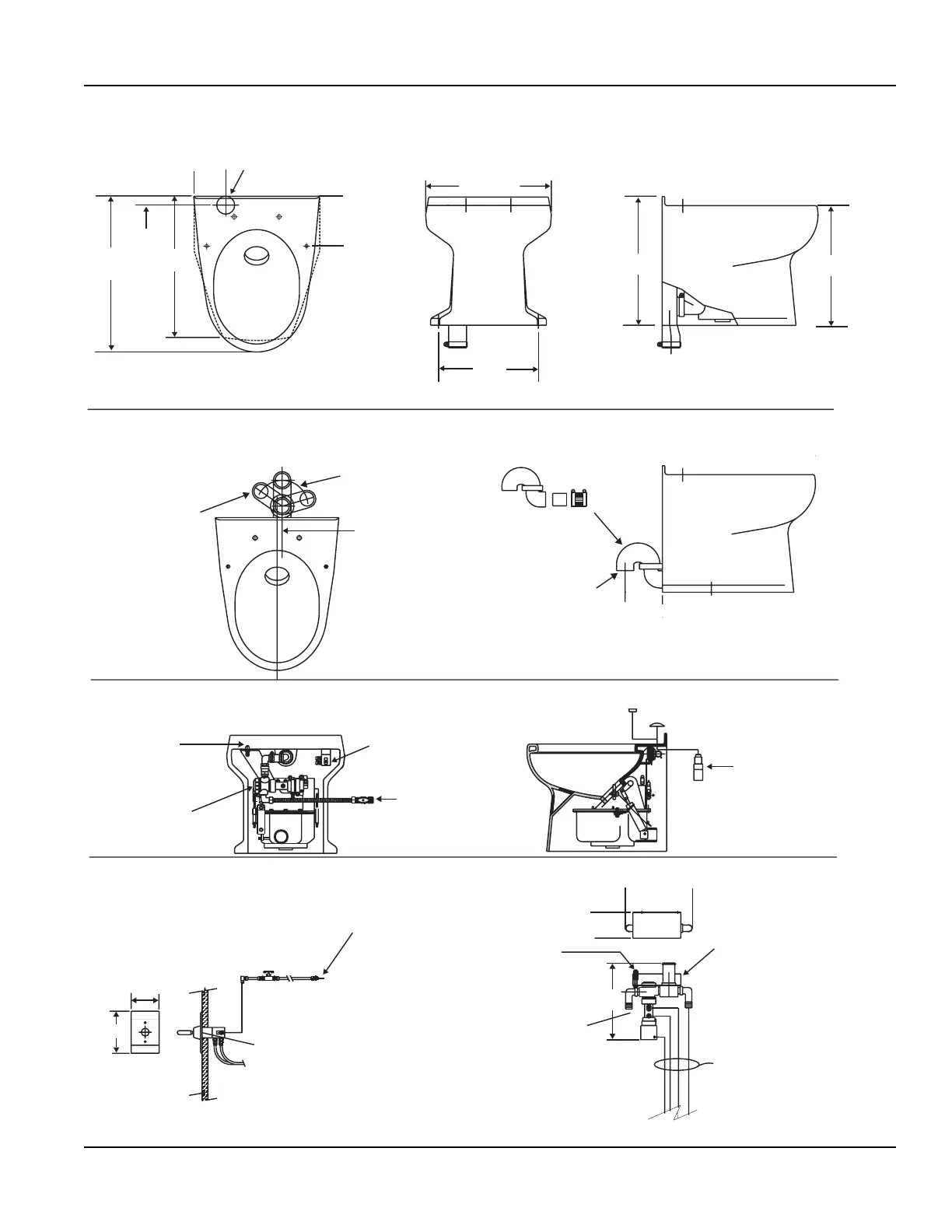

LF-219 ROUGH-IN DIMENSIONS NOTE: All dimensions may vary ½”
NOTE: Do NOT use P-Trap in vertical rise waste line applications.
OUT
14.5"
4"
TOILET DISCHARGE
1-7/8" I.D. RUBBER HOSE CONNECTION
FOR 1-1/2" PIPE SIZE (IPS)
17.25"
16.5"
Downward Discharge
Rear Discharge
5.25"
TOILET DISCHARGE
1-1/2" SLIP/HUB
PIPE SIZE (IPS)
THESE PARTS SHIPPED
UNASSEMBLED
WITH TOILET
TOILET DISCHARGE
1-1/2" SLIP/HUB
PIPE SIZE (IPS)
3.3" RADIUS
Integral Flush
FLUSH ACTIVATOR
AIR/WATER
SEQUENCE VALVE
1/2" WATER SUPPLY
CONNECTION
AIR CONNECTION
AT FITTING
BLEED-OFF
ASSEMBLY
Integral Check Valve - No Vacuum Breaker - Check Local Code for Approval.
File: 219-Spec
17.25"
.65"
6.25"
1.12"
13"
Remote Flush Rough-In
THE MAXIMUM WATER LINE DISTANCE BETWEEN THE TOILET AND THE REMOTE FLUSH ASSY IS SIX (6) FEET.
CUSTOMER WATER
SUPPLY CONNECTION
3/4" HOSE BARB
9.6"
3.25"
8.4"
VALVE ASSEMBLY
CUSTOMER AIR
SUPPLY CONNECTION
1" DIA. HOLE REQUIRED
THRU WALL (.38“ min/.75” max).
OPTIONAL WALL BOX KIT,
P/N 91870
PUSH TO FLUSH
5.25"
3.25"
FLUSH ACTIVATOR
Top View
BLEED-OFF
ASSEMBLY
TOILET DISCHARGE
2.25“ DIA. THRU FLOOR
INSTALL THE FLUSH
ASSEMBLY WITH
THE BASE OF THE
VACUMM BREAKER
6" Min. ABOVE THE
RIM OF THE TOILET.
THE AIR AND
WATER LINES ARE
PRE-INSTALLED.
19.5"
Round
