WAC Lighting MOCHA - Attaching the Fan Blades; Blade Attachment Procedure; Blade Collector Ring

11F-001
3

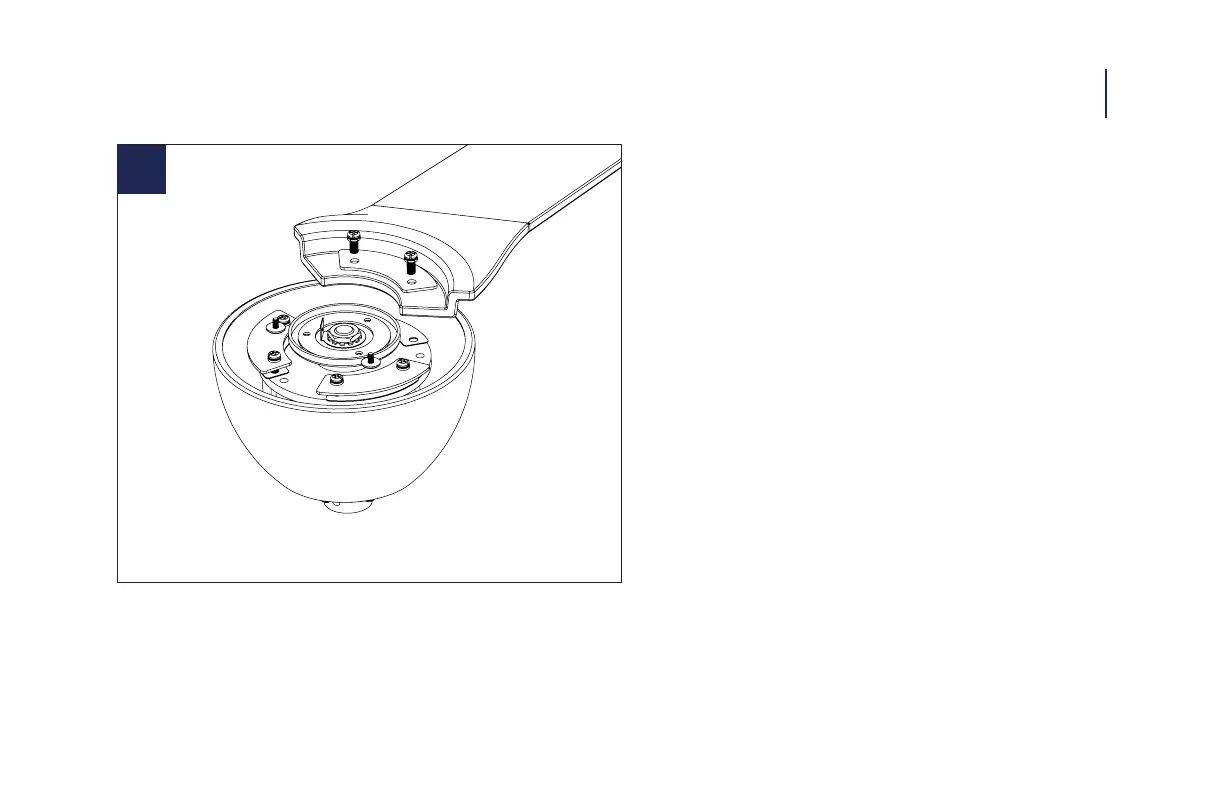

1. Place blade on motor and secure with the blade attachment,
screws and washers.
2. Insert blades in slots, aligning with motor assembly holes.
3. Secure blades with blade attachment screws & washers.
4. Remove set screws from motor housing, install blade collector
ring (when applicable), and re-install screws.
ATTACHING THE FAN BLADES 06
