F-001
14
7
White (neutral)
Outlet Box
Black (hot)
Black (“AC IN L”)
Red (to motor)
Gray (to motor)
Yellow (to motor)
Yellow (motor)
Gray (motor)
Red (motor)
Receiver
Green (ground)
To Hanger Ball
Green (ground)
To Hanger Bracket
Green (ground)
White (for light)
White (for light)
Blue (for light)
Blue (for light)
White (“AC IN N”)
Green (ground)

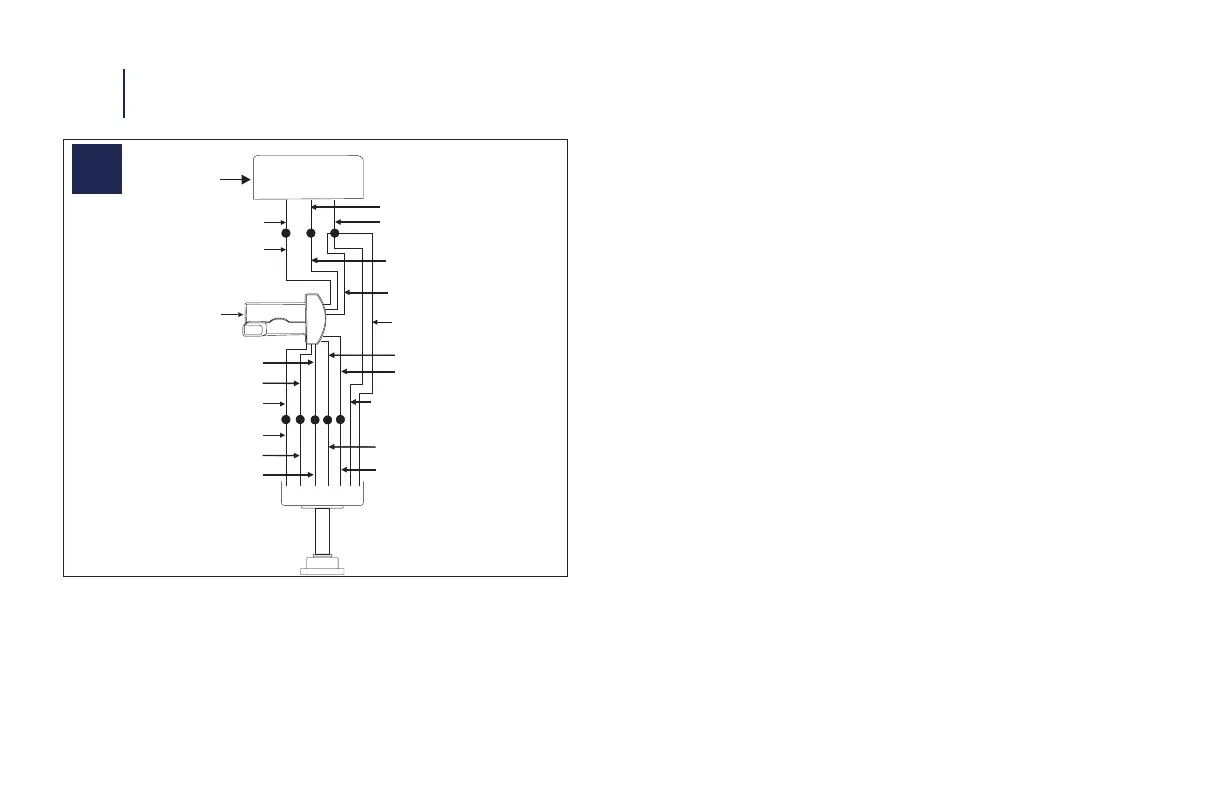

08 MAKING THE ELECTRICAL CONNECTIONS
1. Connect the wires from fan to the corresponding wires
on the receiver.
2. Connect the wires from the outlet box to the corresponding
wires on the receiver.
NOTE: Follow wiring diagram found on the receive hardware.
After making electrical connections, spliced connectors should be
turned upward and pushed carefully up into the outlet box. The
wires should be spread apart with the grounded conductor and the
equipment-grounding conductor on one side of the outlet box and
ungrounded connector on the other side of the outlet box.
