WAC Lighting MOCHA - Installing the Wall Control - Part 2; Multi-Controller Wiring Diagram; Pairing Wall Controls

F-001
16

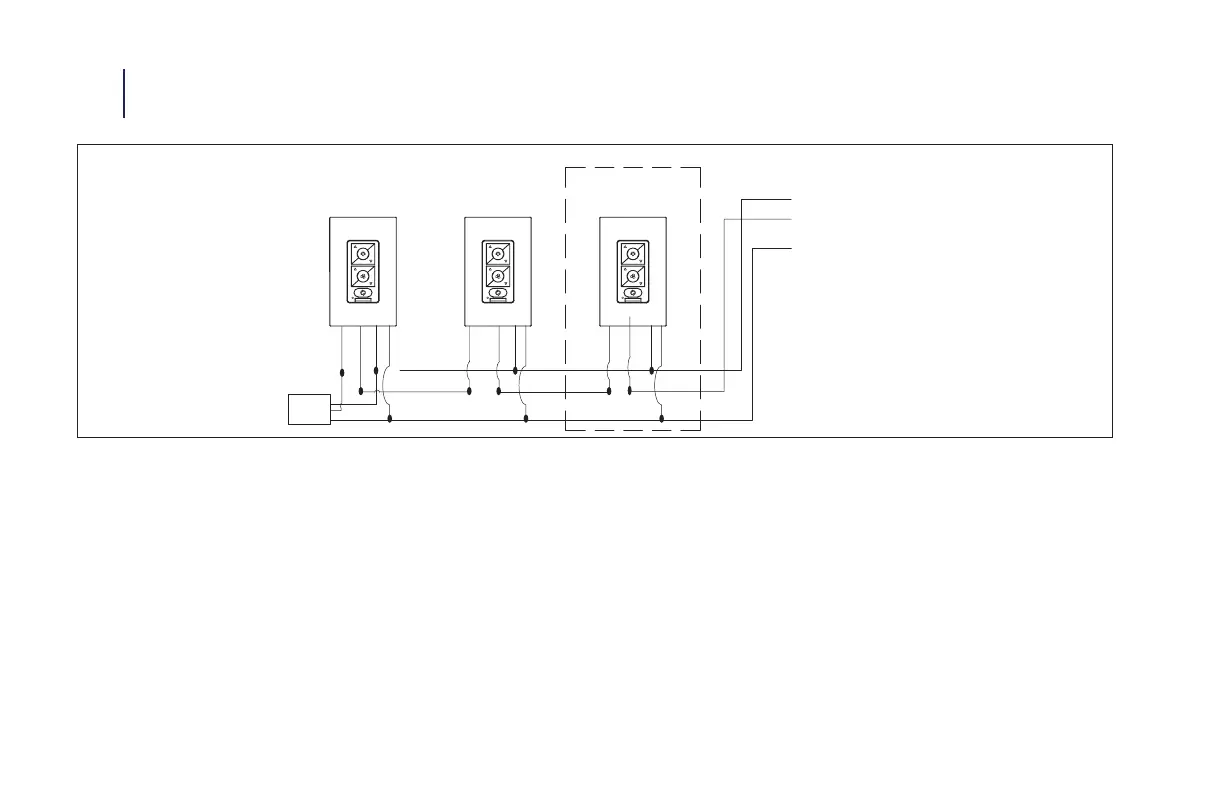

1. Install the wall control using the wiring diagram above.
2. Individually pair each of the wall controls with the fan receiver using the pairing instruction.
Wall Controller 1 Wall Controller 2 Wall Controller 3
if Applicable
Green
Green to Fan
Black to Fan
White to Fan
Green White Black Red
Black Black White Red Red White Green Green
HOT IN
