Maintenance
Maintenance work 12.3
49
[us] | 06/2020 | 5100056974 | AS | Operator’s manual

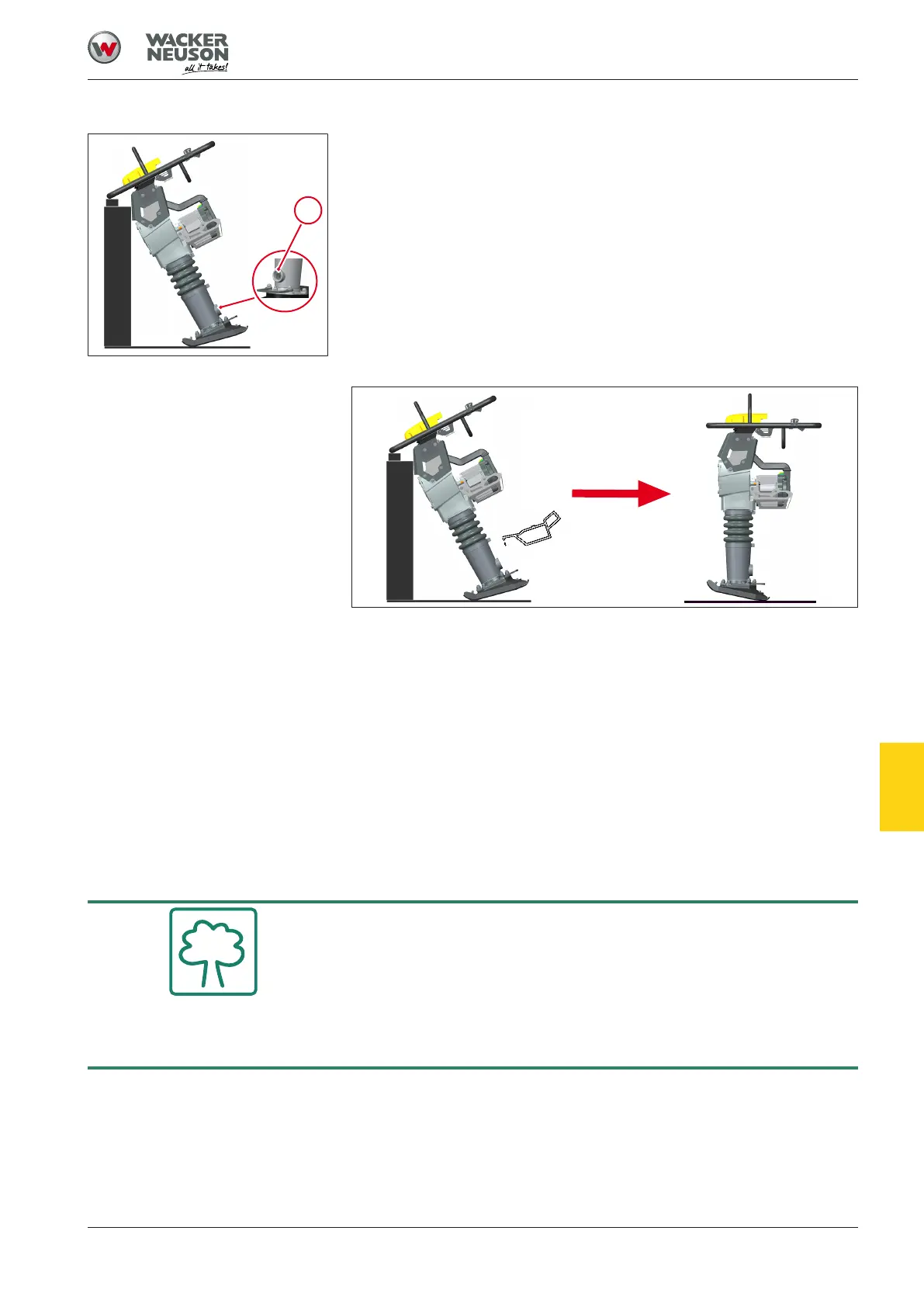

1. Tilt the machine forward to access the oil sight glass 1.
2. Secure the machine in this position.
3. Unscrew the oil sight glass.
4. Clean the threads of the oil sight glass and wrap with Teflon tape.
1. Pour oil into the housing through the opening in the oil sight glass.
2. Screw the oil sight glass back on, but do not tighten.
3. Place the machine in upright position to check the oil level.
4. If necessary, top up oil until the oil sight glass ½ to ¾ is filled.
5. Tighten the oil sight glass. Tightening torque 9 Nm.
6. Wipe the area of the oil sight glass with a clean cloth.
12.3.5 Changing oil
AS50e / AS60e
Environment
Soil contamination due to oil leaking or overflowing.
► Line work surface with impermeable foil.
► Use collecting container for used oil.
► Dispose of used oil in an environmentally friendly manner in accor-
dance with statutory regulations.
