Maintenance
T00963GB 56
Replacement retum springs are delivered inside a housing and
pretensed. CAUTION, the spring can jump out.
A spring that has jumped out can be placed back in the housing by
following the drawing (pay attention to the direction of rotation!).
The new return spring (4) must be lightly greased with multipurpose
grease before proceeding with mounting inside the fan housing. After
greasing insert retum spring (4), press in slightly so that the brackets
(5) snap into the seats. Screw in screw (3) and only tighten lightly. Tum
rope drum slightly when placing until it snaps in audibly. Mount
retaining ring. Coil starter rope (see chapter “starter rope
replacement“).
Assemble air duct (see picture 62). If the need arises, pull starter
handle lightly until the starting device grips wehn replacing the fan
housing.
8.10 Cutting arm in inboard/outboard

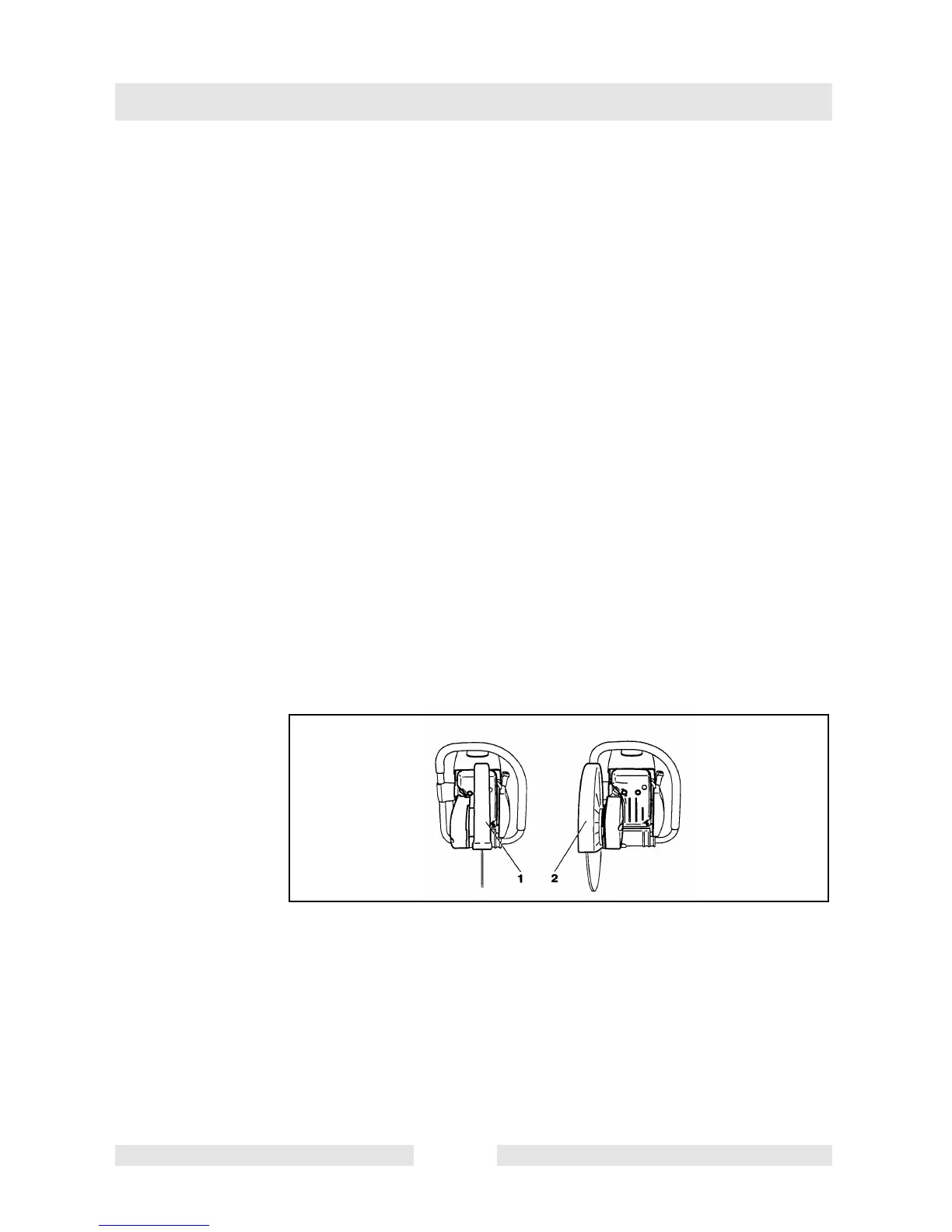

NOTE: The cut-off saw is delivered with the cutting arm mounted in the
inboard position (1). For cutting up against obstacles, such as curbs or
walls, the cutting arm can be mounted to one side (outboard) (2). Use
this position only when actually necessary, and afterwards return the
cutting attachment to the inboard position. In this position the cut-off
saw has better balance, is easier to guide, and is not as fatiguing for
the operator.
64
