Maintenance
T00963GB 58

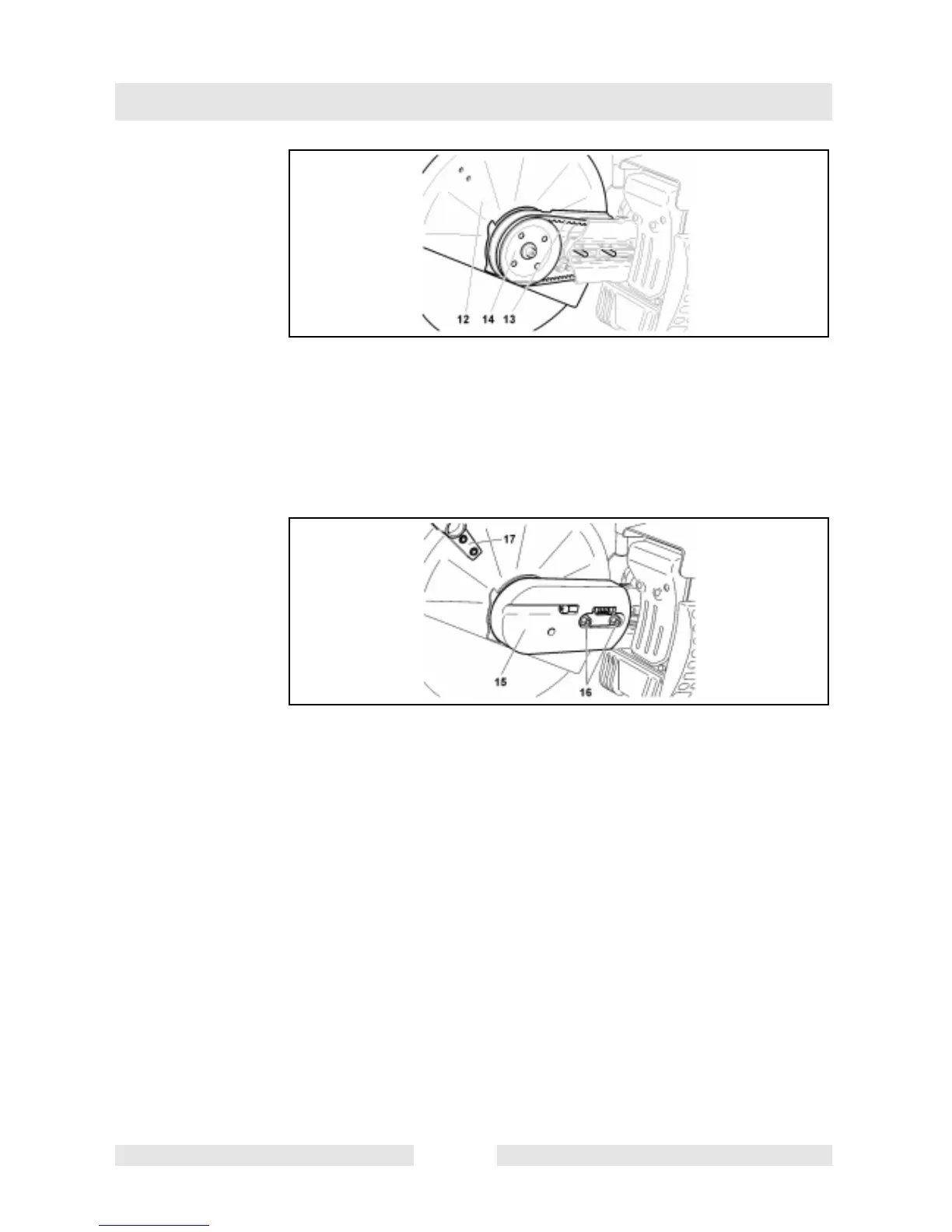

Press the cutting arm (12) in the side position onto the drive arm
attachment.
Guide the V-belt (13) over the V-belt wheel (14).
Put the guard plate (15) on.
Screw on nuts (16) and tighten by hand.
To tighten the V-belt see “Tightening the V-belt / Checking V-belt
tension“.
Tighten the nuts (16) firmly with the combination wrench.
ATTENCION:
When you reposition the cutting attachment, the direction of
rotation of the cutting wheel changes.
Diamond blacks must be filted according to the turning direction!
