CT Repair Guide Handle
wc_tx000551gb.fm 67

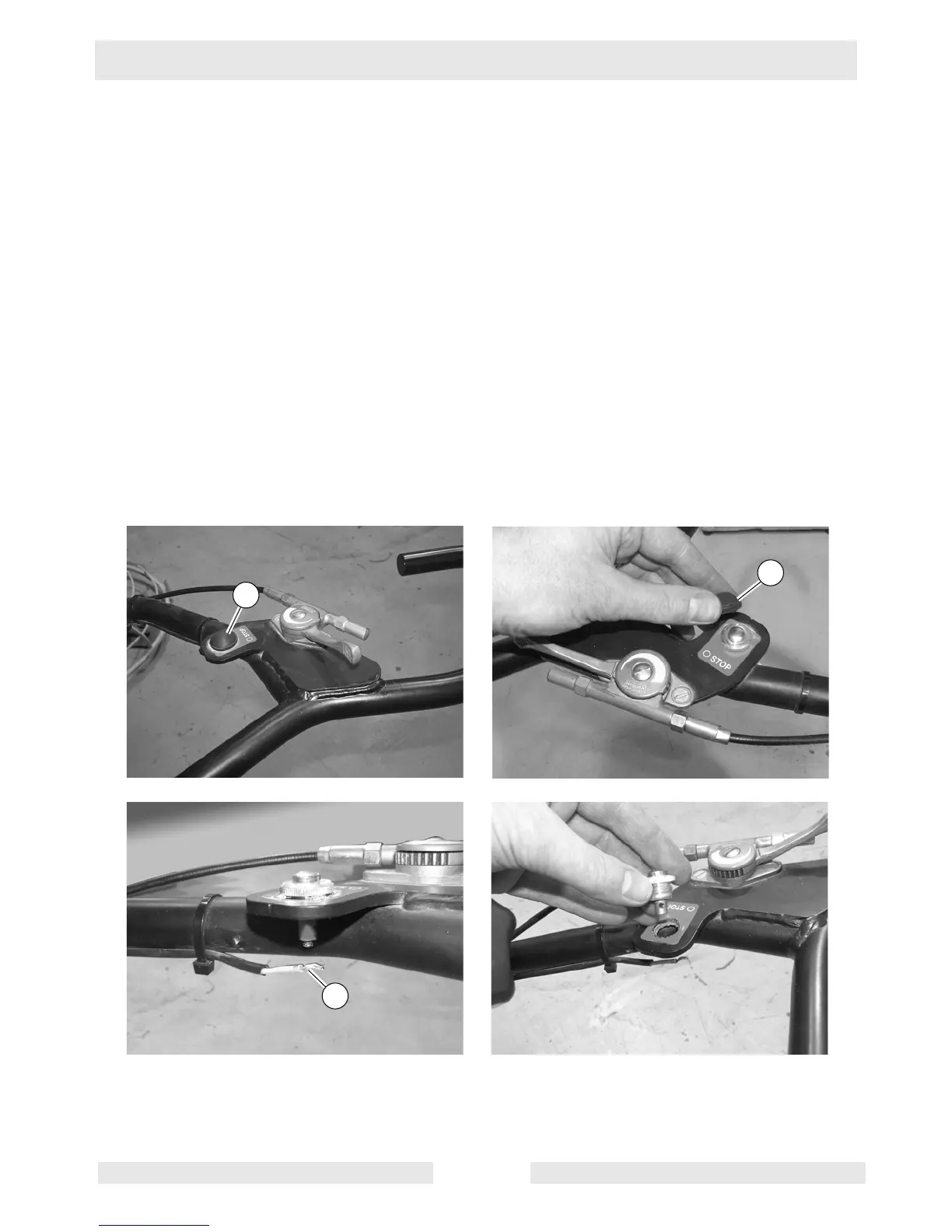

5.8 Replacing the Stop Switch
See Graphic: wc_gr003371
To replace the stop screw (a), carry out the following procedures:
Removal:
5.8.1 Remove the protective boot (b).
5.8.2 Disconnect the wire (c).
5.8.3 Unthread the stop switch from the handle.
Installation:
5.8.4 Thread the stop switch (a) into the handle.
5.8.5 Connect the wire (c).
5.8.6 Install the protective boot (b).
wc_gr003371
a
b
c
