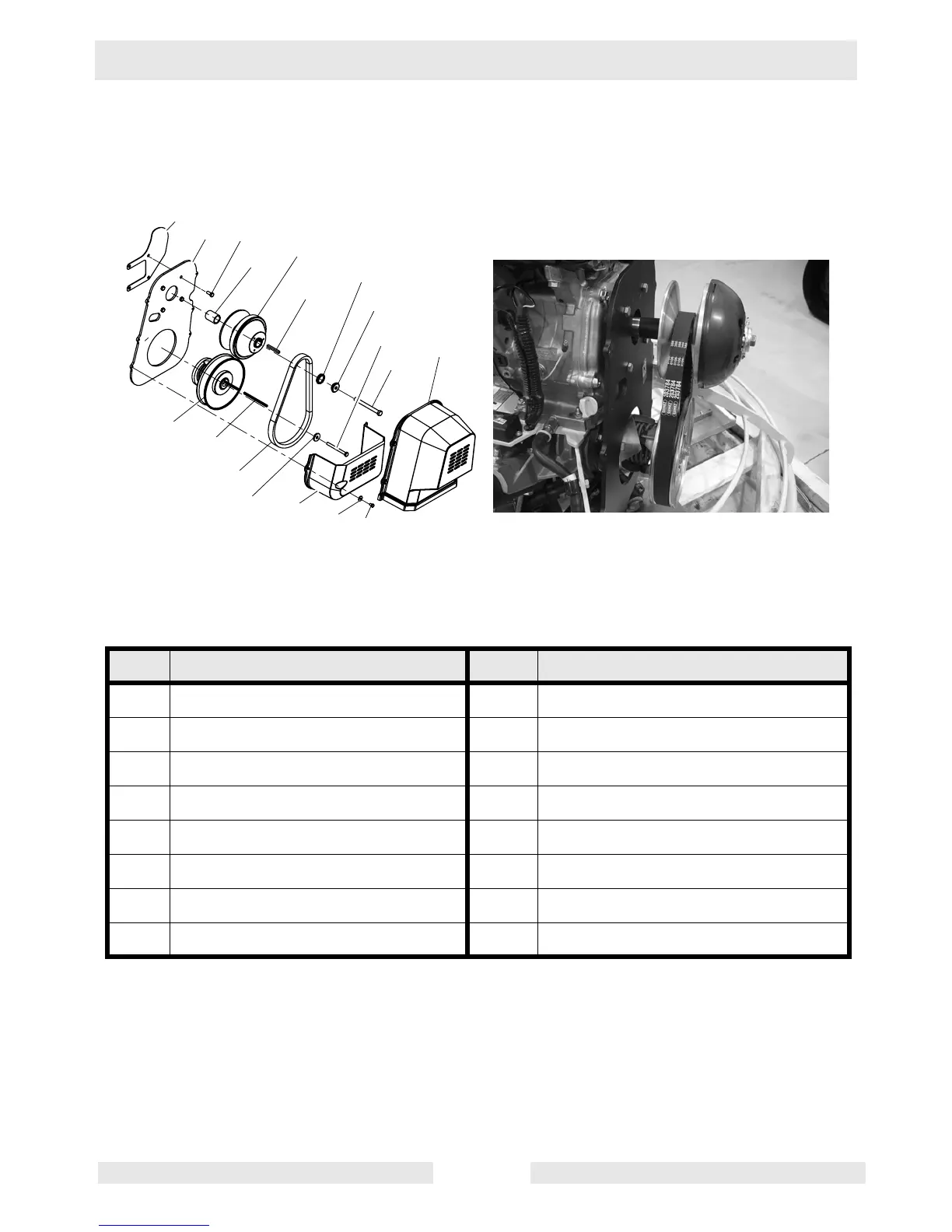

6.3 Drive Belt—Variable Speed Clutch
Ref. Description Ref. Description
3 Upper belt guard 58 Hex head screw
4 Beltguard plate 69 Fender washer
23 Clutch 70 Washer
24 Clutch pulley 71 Washer
26 Belt 84 Key
36 Spacer 127 Lower beltguard
51 Screw 132 Key
53 Hex head Screw - ---
81
4
50
23
84
74
51
3
36
71
24
132
26
70
58
69
53
127
