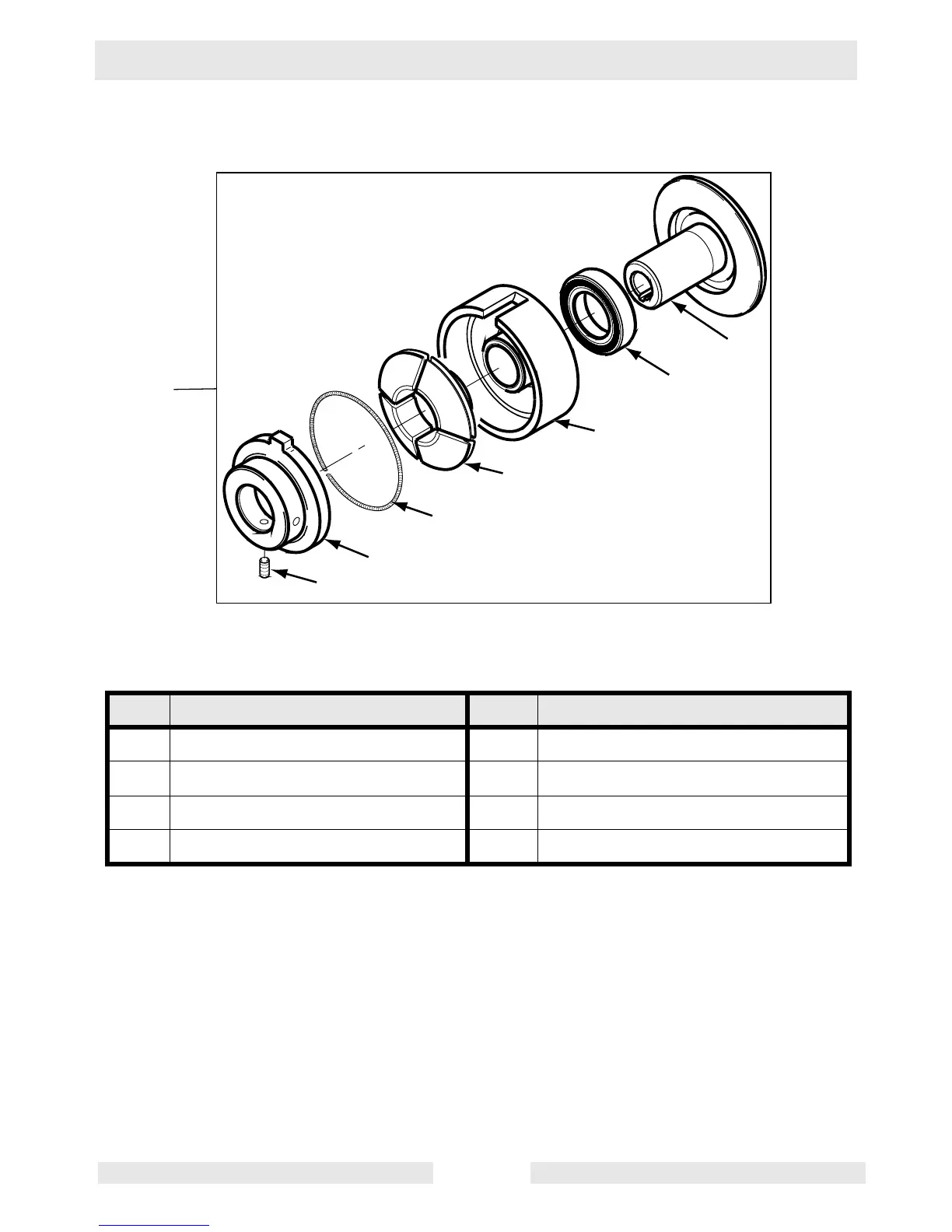

6.5 Standard Clutch—Exploded View
Ref. Description Ref. Description
1 Clutch assembly (incl. 2–8) 5 Clutch shoe
2 Setscrew 6 Ball bearing
3 Clutch plate 7 Clutch drum
4 Spring 8 Clutch pulley
wc_gr002068
2
3
4
5
7
6
8
1
