T00467GB
17
MAINTENANCE
Engine oil
Check oil level:

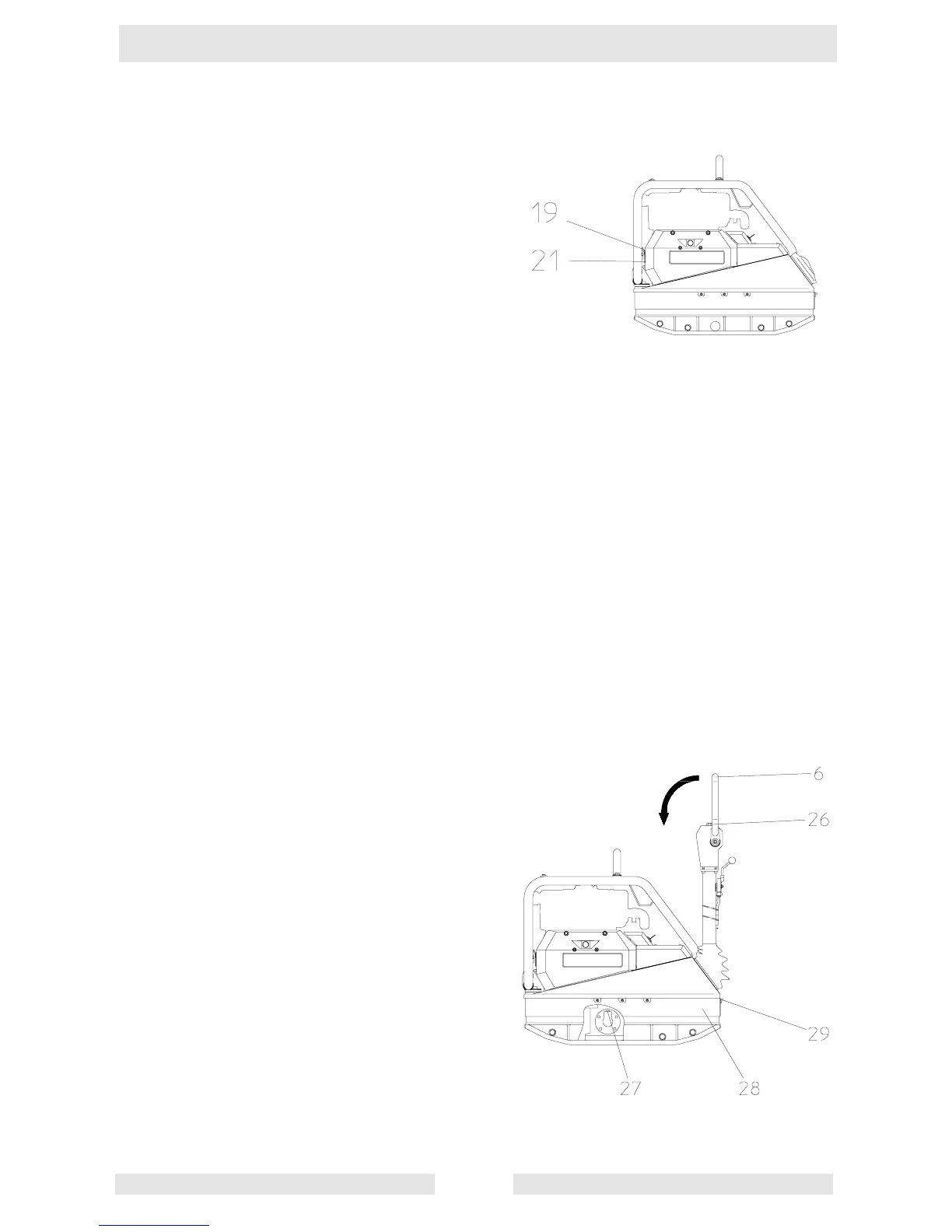

Check oil level on oil dipstick (21).
If the oil level is too low, top up with Fuchs Titan Unic
10W40 MC though the filler nozzle (19).
Changing the oil:
1. Let engine warm up.
2. Loosen oil drain screw.
3. Loosen fastening screws and place bracket over used oil
container.
4. Remove oil drain screw and pour oil into container.
5. Screw oil drain screw back in and refasten bracket.
6. Pour in 1,0 l of oil through the filler nozzle (19).
Battery
Check acid level:
1. Remove battery cover.
2. Check acid level, if necessary top up with distilled water.
3. Secure battery cover.
āATTENTION! Do not close venting opening!
Note: Only replace defective batteries with original Wacker batteries. Standard batteries are
not suitable for the high vibration loads.
4. When changing the battery:
Removal: First disconnect negativ, then positive terminal of battery.
Assembly: First connect positive, then negative terminal of battery.
When using starting sprays etc., see chapter operation.
Hydraulic control
Check oil level:
1. Move centre pole into vertical position.
2. Open filler bore (26).
3. Oil level must be at mark, if necesary top up with hydrau-
lic oil Fuchs Renolin MR 520.
4. Close filler bore (26).
Venting hydraulic control:
1. Remove apron (28) by undoing the screws (29).
2. Move centre pole into vertical position, move shift lever
(6) right into the reverse position, open filler bore (26).
3. Loosen connecting screw (27).
4. Slowly push the shift lever (6) into forward motion direc-
tion until hydraulic oil emerges bubblefree at the connec-
tion screw.
5. Tighten connecting screw (27), mount apron (28).
6. If necessary, top up with Fuchs Renolin MR 520, seal fill-
er bore (26).
