E0127049GB-1
20

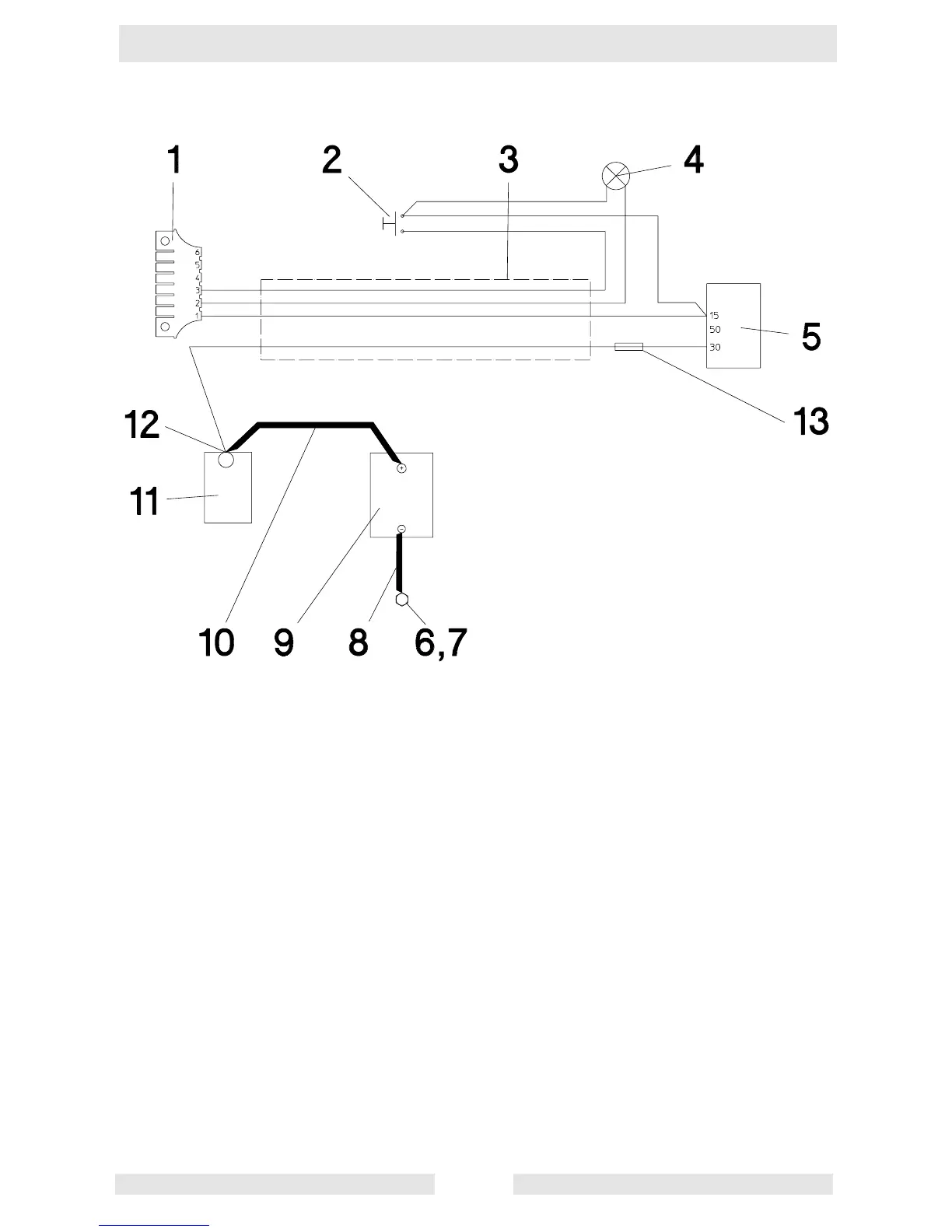

ELECTRIC WIRING DIAGRAM
1 Bush plug
2 Button switch
3 Wire harnes
4 Battery charge gauge
5 Central plug
6 Hexagonal head cap screw DIN933 - M8x16
7 Washer DIN125 - B8,4
8 Mass line
9 Battery
10 Positive pol strop
11 Starter
12 Nose cap
13 Overcurrent switch
