Introduction
Meaning
The reservoir contains hydraulic oil.
– see chapter Adding hydraulic oil on page 5-18
Application
Next to the filler inlet of the hydraulic oil reservoir
Meaning
Read the Operator’s Manual before using the machine.
Application
On left and right of skip
Meaning
Use a safety prop before performing work under the skip.
Application
On left and right of skip
Meaning
General indication of danger
This symbol alerts persons standing or working near the machine of an existing shearing
hazard around the machine.
Application
On left and right of skip
Meaning
Do not touch hot surfaces, wait for parts to cool down.
Application
Near the exhaust system
Meaning
Danger of burns, and danger due to rotating fan! Stop the engine before opening the
engine cover.
Application
On the engine cover
Meaning
Danger due to components under spring tension! Indicates the device for adjusting track
tension.
Application
Right and left side of chassis
Meaning
This label explains the machine’s control elements
– see chapter 3. 1 Overview of the operator's cab (front tip skip model, front tip skip for
lightweight material) on page 3-1
Application
On the control stand

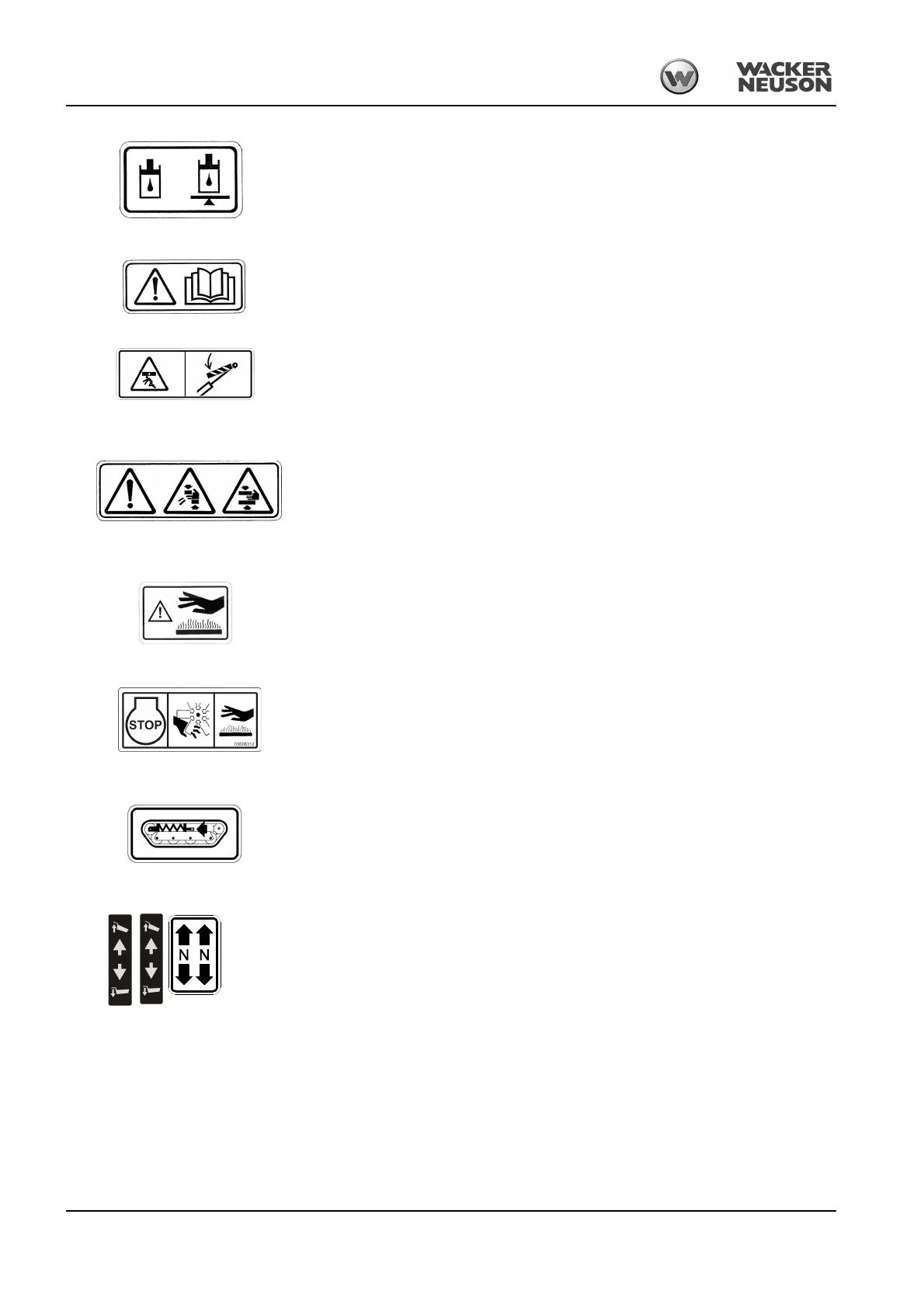

Fig. 14: Hydraulic oil
Fig. 15: Read and understand the Operator’s Manual
Fig. 16: Safety prop
Fig. 17: Shearing hazard
Fig. 18: Hot surfaces
Fig. 19: Engine stop
Fig. 20: Track tension adjustment
Fig. 21: Main label
