BA DT10 en - Edition 1.5 * dt10b110.fm 1-9
Introduction

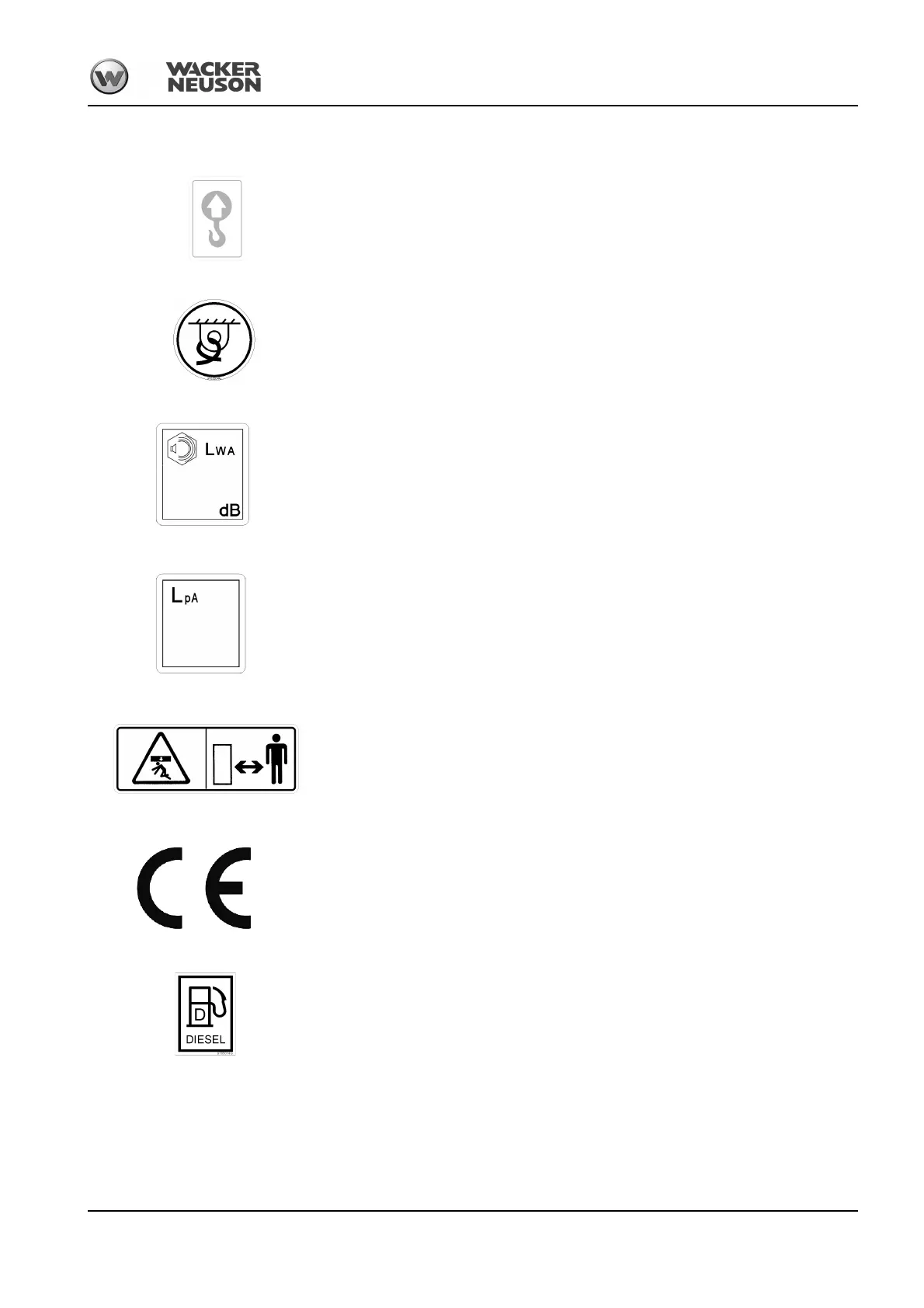

The following states signs and symbols which are not unequivocally comprehensible. They
do not contain explanatory text and are not explained in the following chapters.
Meaning
Machine is raised by the lifting eyes
– see chapter Crane handling the machine on page 3-21
Application
On the chassis near the front and rear lifting eyes
Meaning
Tie-down points for tying down the machine for transport.
– see chapter Tying down the machine on page 3-23
Application
On the chassis at the front and rear anchoring points
Meaning
Noise levels produced by the machine.
L
Wa
= sound power level
Other information – see chapter 6.13 Noise levels on page 6-5
Application
Protective plate on control stand
Meaning
Indication of operator-perceived sound pressure level.
L
Pa
= sound pressure level
Other information – see chapter 6.13 Noise levels on page 6-5
Application
Protective plate on control stand
Meaning
General indication of danger
This symbol alerts persons standing or working near the machine of an existing danger.
Application
On left and right of skip
Meaning
The CE mark means that the machine meets the requirements of the Machine Directive
and that the conformity procedure has been performed. The machine meets all the health
and safety requirements of the Machine Directive.
Application
On the type label
Meaning
Add diesel fuel only!
Application
On the control panel
Fig. 7: Lifting eye label
Fig. 8: Label for points used for tying down the machine
Fig. 9: Noise level label
XX
Fig. 10: Label with indication of sound pressure
XX
