Wacker Neuson DT10

3-18 BA DT10 en - Edition 1.5 * * dt10b330.fm
Operation
High-tip skip (option)
Danger!
Do not operate the skip during machine travel and operation on slopes,
otherwise –
Accident hazard!
☞Do not actuate the skip when driving across slopes
☞Do not actuate the skip when driving up or down slopes
Notice!
The loader unit also moves as the skip is tilted in and out.
Swivel skip (optional)
Danger!
Do not operate the skip during machine travel and operation on slopes,
otherwise –
Accident hazard!
☞Do not actuate the skip when driving across slopes
☞Do not actuate the skip when driving up or down slopes

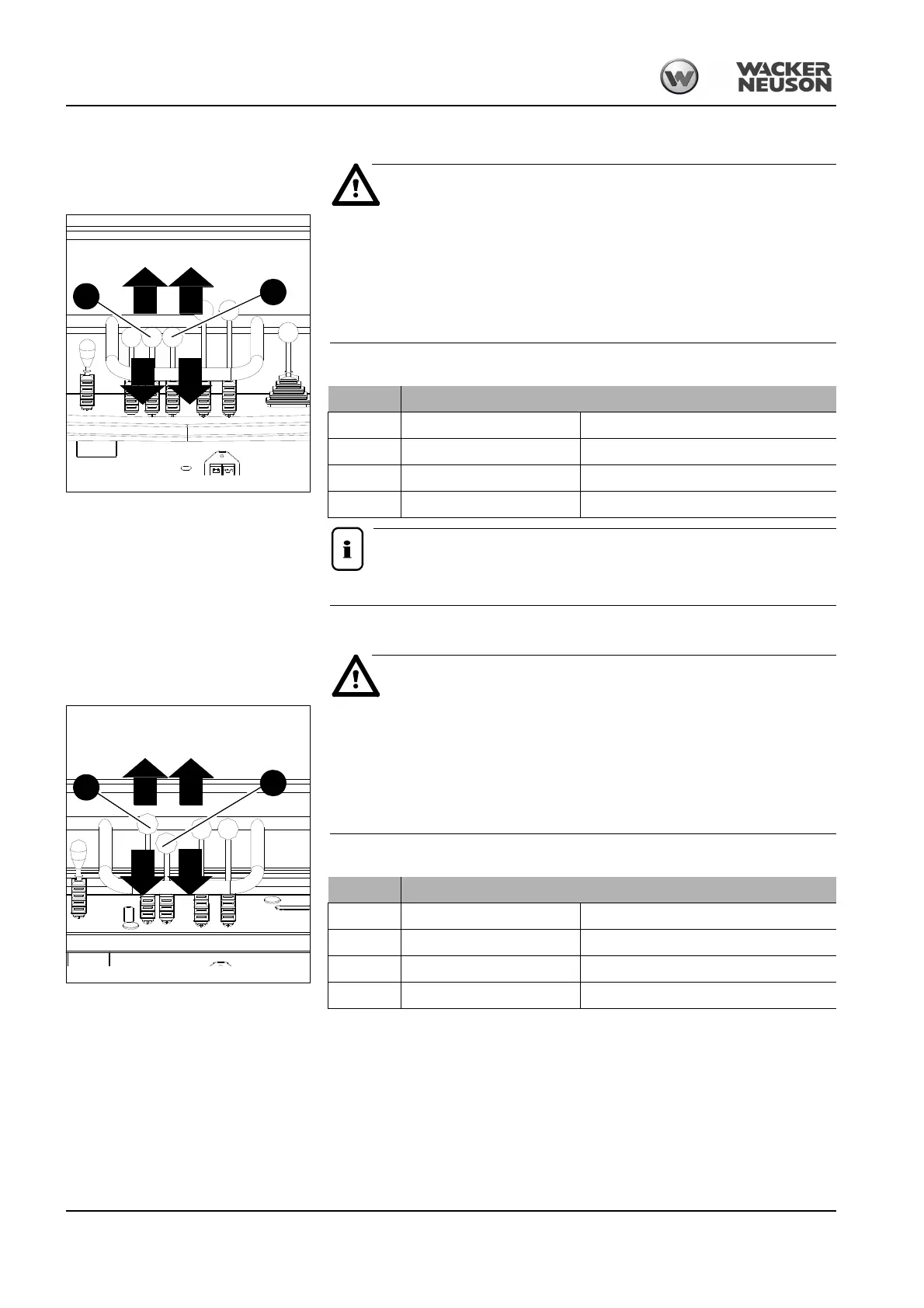

Fig. 41: Operating the high-tip skip
A
B
E
F
15
16
Position Function
•A 15 Pushed forward Skip is tilted out
•B 15 Pulled to the rear Skip is tilted in
•E 16 Pushed forward Skip is lowered
•F 16 Pulled to the rear Skip is raised
Fig. 42: Swivel skip operation
C
D
A
B
20
19
Position Function
•A 19 Pushed forward Skip is tilted out
•B 19 Pulled to the rear Skip is tilted in
•C 20 Pushed forward Skip swivels to the left
•D 20 Pulled to the rear Skip swivels to the right
