Operation
Hydraulic PTO shaft (HPTO) (Opt.)
The hydraulic PTO shaft has an operating pressure of 155 bar and an output of 28 l/min.
☞Stop the engine
☞Check whether the control lever for releasing the PTO shaft 14 is in the neutral position
➥The PTO shaft is switched off
☞Insert the quick couplers of the accessories into the corresponding connections P and
P1 of the PTO shaft of the machine.
☞Connect PTO shaft; in the process, bring the control lever 14 into position A or B,
depending on what line is to be pressurized.
☞Regulate the throttle of the dumper until reaching the output required for correct opera-
tion of the work equipment
Release the hydraulic PTO shaft only with the quickcouplers used for the work
equipment. Switching on the PTO shaft with no work equipment connected
can be the cause of starting failure or output loss of the dumper, or of oil
overheating in the hydraulic system
.
P1
P

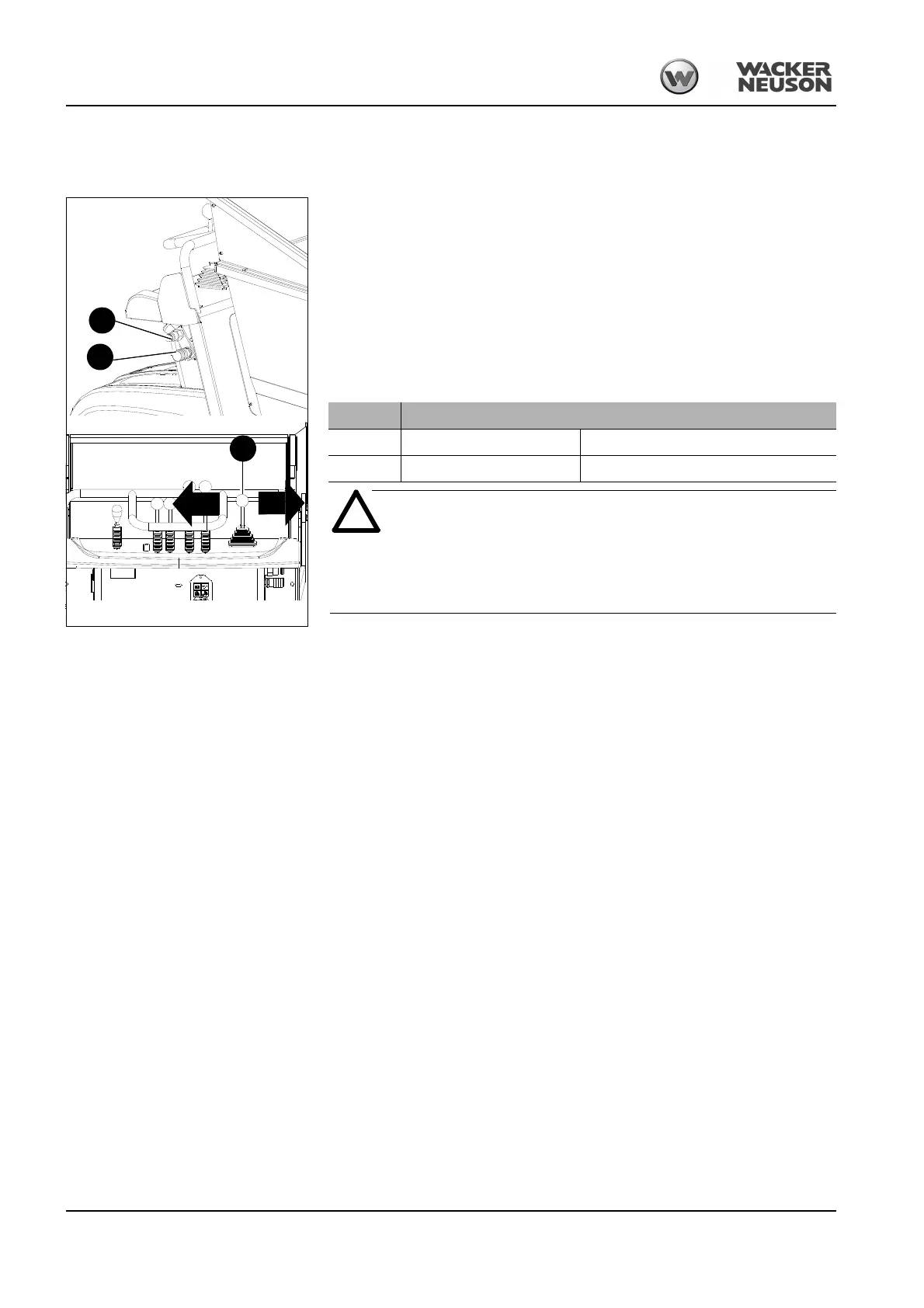

Fig. 58: Hydraulic PTO shaft (HPTO)
14
A
B
Position Function
•A 1 pushed to the right Additional upper connection P
•B 1 pushed to the left Additional lower connection P1
