Operation
Empty the high tip skip (optional)
Careful when handling the high-tip skip –
Accident hazard!
☞Do not raise or dump out the skip when driving
☞Do not raise or dump out the skip on slopes or in an inclined position
☞Park the vehicle on level and horizontal ground
☞Dump out skip A upwards
☞Move the control lever 16 C to the rear
➥Skip is raised
☞Dump out skip D
☞Move the control lever 15 F to the front.
➥Skip dumps out
Emergency lowering of the skip
Emergency lowering of the skip –
Crushing hazard and injury!
☞Stay clear of the skip
Emergency lowering of the skip is only possible with the help of two persons.
☞Pull lever 2 A backward during emergency lowering and hold it in this position
• Once the skip is fully tilted out
☞Press the front tip skip by hand downwards to over the pivot point B and at the same
time pull the lever 2 A to the rear.
☞The skip is lowered by its own weight once it is beyond the pivot point
D
A
F
16
C
15

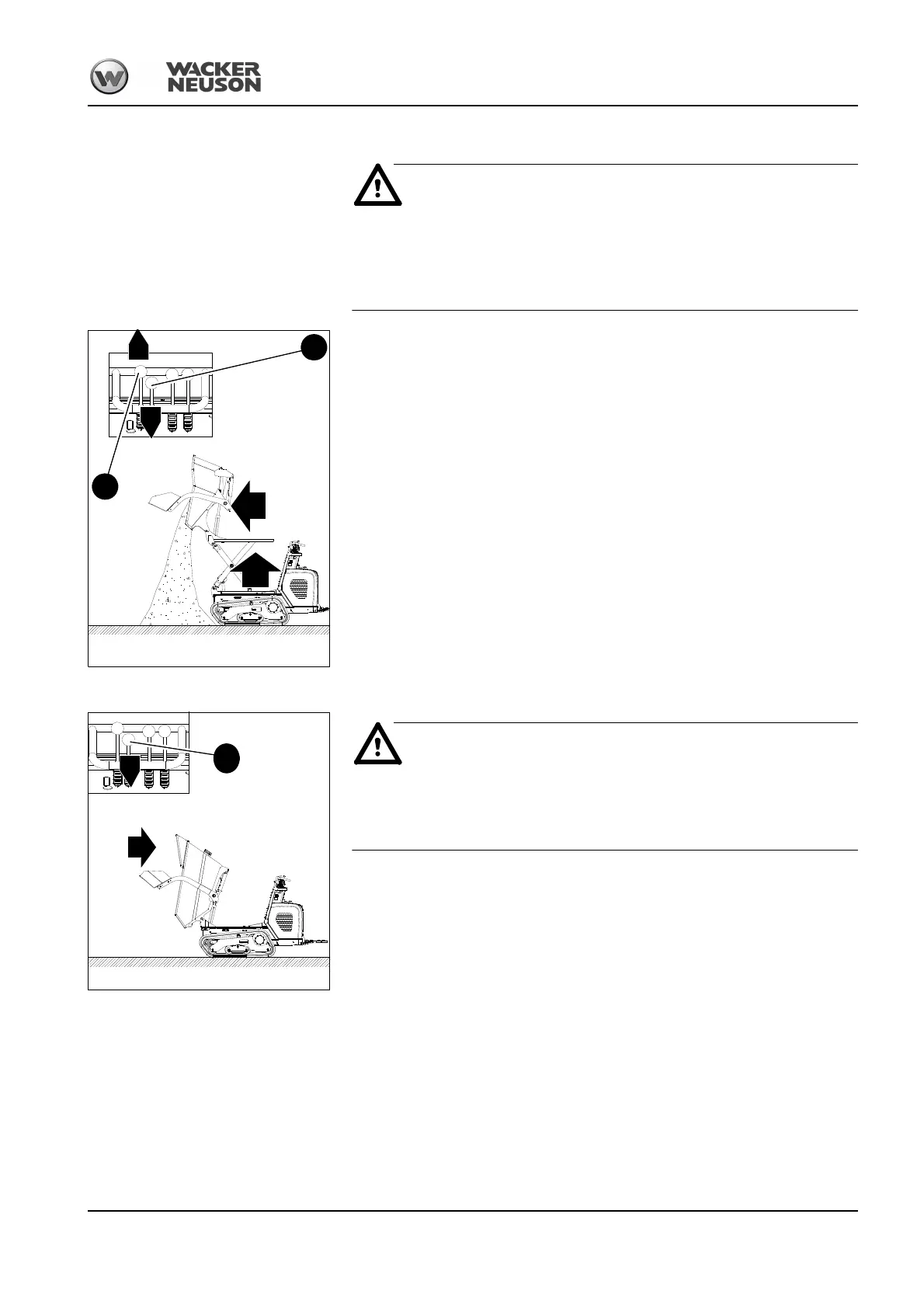

Fig. 56: Empty the high tip skip (optional)
Fig. 57: Emergency lowering of the skip
B
2
A
