Maintenance
The substructure must be raised and the maintenance prop installed for maintenance and
service work. Perform the starting aid as follows:
☞Unscrew screws A
☞With the skip fully tilted, raise the substructure by pressing on the upper edge of the skip
☞Remove the maintenance prop B from the transport bracket
☞Insert the maintenance prop B in the corresponding bracket
☞Secure the maintenance prop B with the screws A

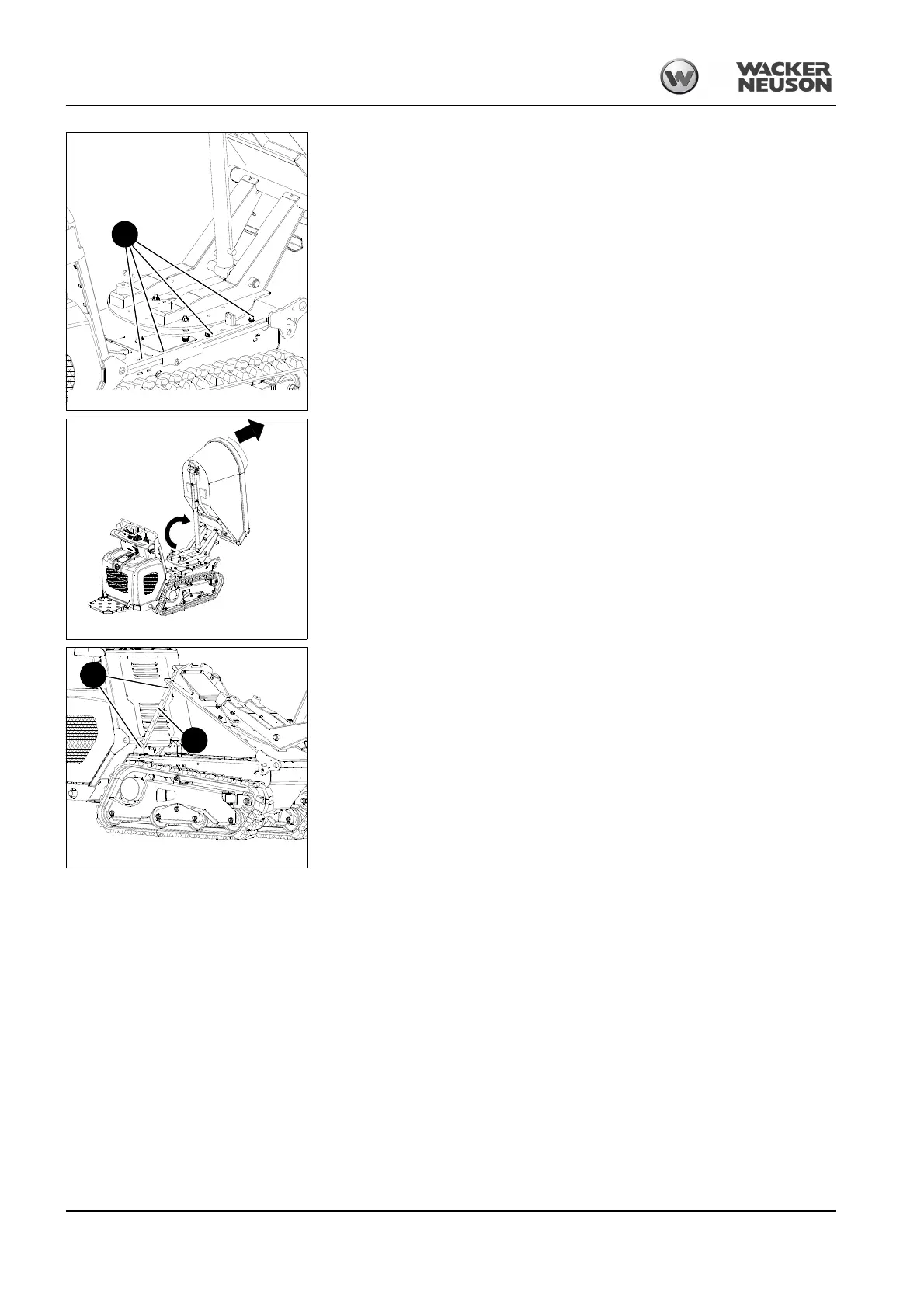

Fig. 67: Maintenance prop
A
Fig. 68: Maintenance prop
Fig. 69: Maintenance prop
B
A
