Maintenance
Maintenance strut for swivel skip
Careful when performing maintenance on or under the skip, and in general
when performing maintenance with the skip tilted out –
Accident hazard!
☞Use the maintenance prop
Proceed as follows to attach the maintenance prop:
☞Remove the maintenance prop A from the transport bracket
☞The maintenance prop is fastened with lock pin C and pin D
☞Insert the maintenance prop A on the tipping cylinder B
☞Secure the maintenance prop A with the locating pin C and the pin D
During transport fit maintenance point A in the seat as shown in Fig. 65.

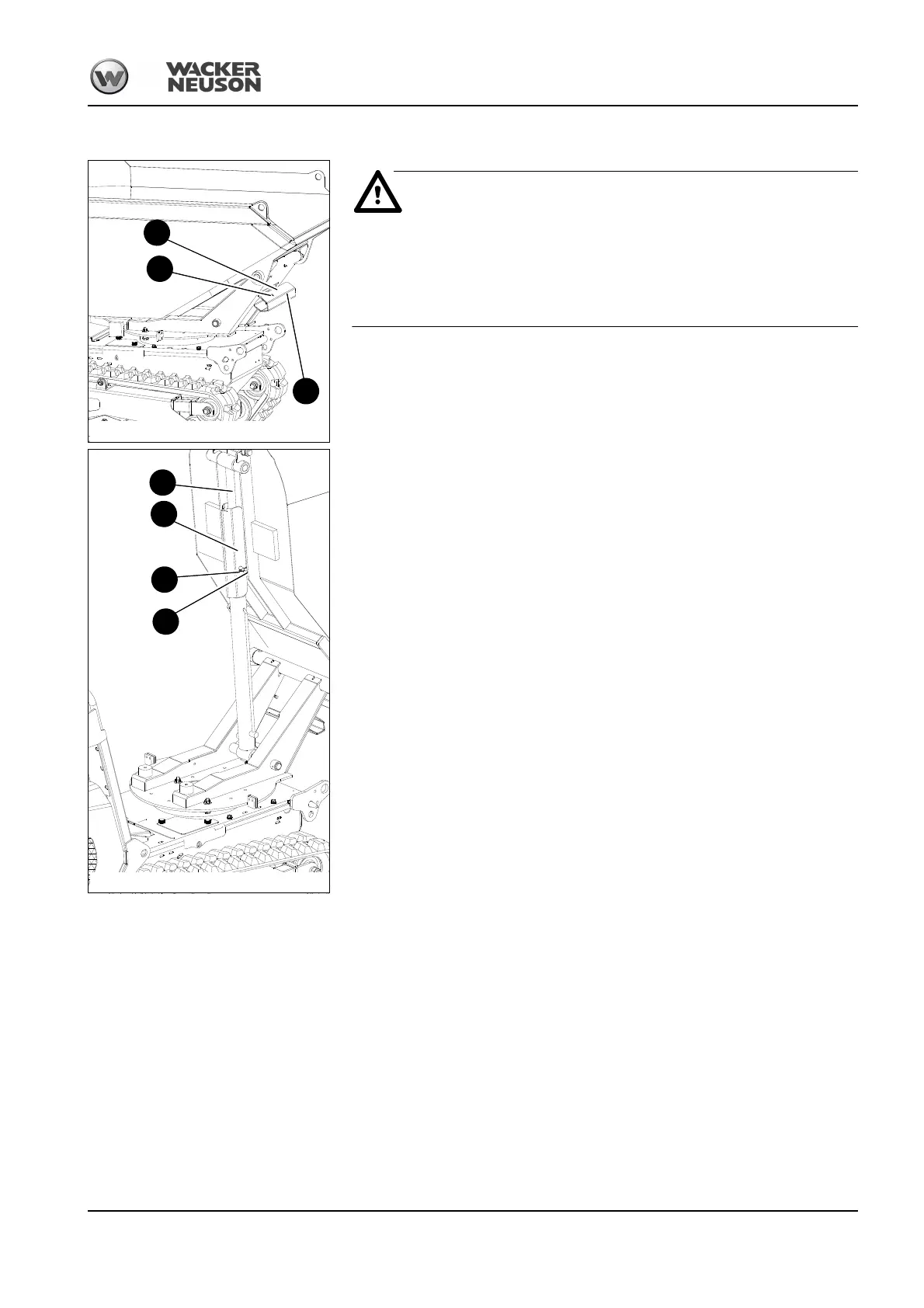

Fig. 65: Transport bracket
C
A
D
Fig. 66: Maintenance prop
D
C
A
B
