5-4 BA DT10 en - Edition 1.5 * * dt10b510.fm
Maintenance
Maintenance prop for front skip
Careful when performing maintenance on or under the skip, and in general
when performing maintenance with the skip tilted out –
Accident hazard!
☞Use the maintenance prop
Proceed as follows to attach the maintenance prop:
☞Empty front tip skip
☞Remove lock pin C and splint D
☞Turn maintenance prop A around tilt cylinder B
☞Secure the maintenance prop A with the locating pin C and the pin D

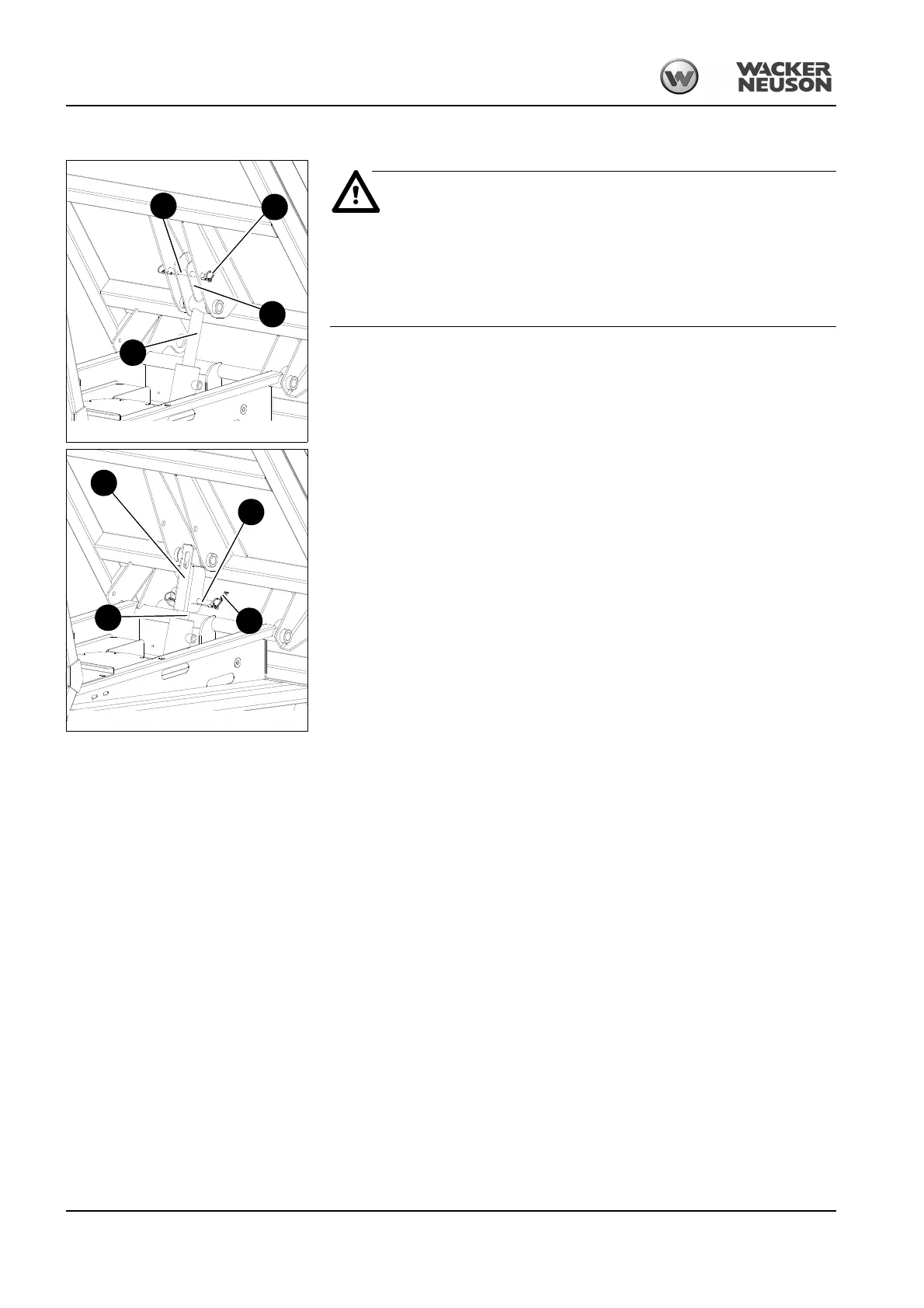

During transport fit maintenance point A in the seat as shown in Fig. 63.
Fig. 63: Transport bracket
B
C
A
D
Fig. 64: Maintenance prop
D
C
A
B
