BA DT10 en - Edition 1.5 * dt10b510.fm 5-3
Maintenance
Maintenance strut for high-tip skip
Careful when performing maintenance on or under the skip, and in general
when performing maintenance with the skip tilted out –
Accident hazard!
☞Use the maintenance prop
Proceed as follows to attach the maintenance prop:
☞Empty front tip skip
☞Remove lock pin C and splint D
☞Turn maintenance prop A around tilt cylinder B
☞Secure the maintenance prop A with the locating pin C and the pin D
➥The skip is blocked in the raised position
☞Remove safety pin E and pin F and insert into the opening G
➥The skip is blocked in the raised position
During transport fit maintenance point A in the seat as shown in Fig. 61.
B
D
A

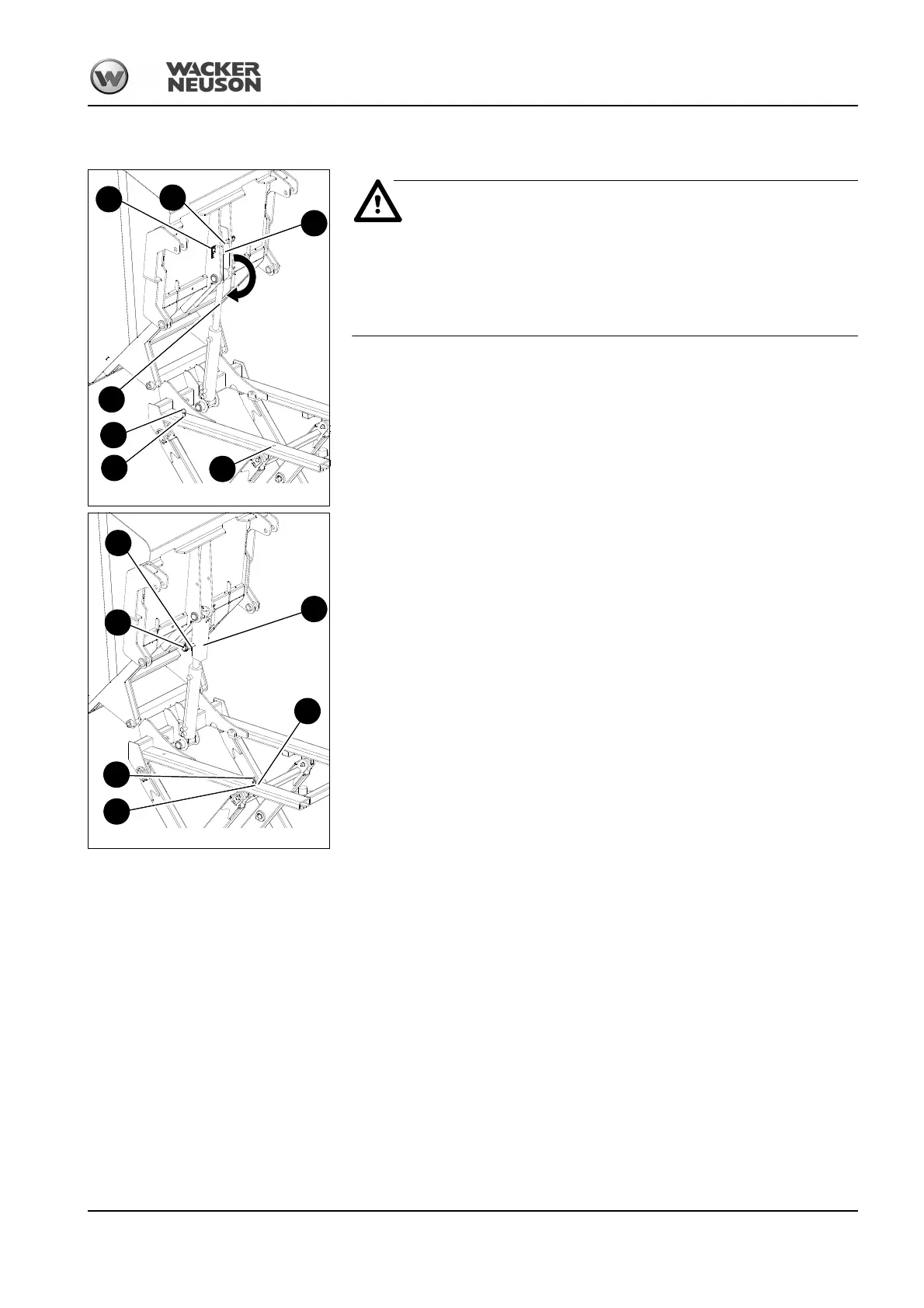

Fig. 61: Transport bracket
C
F
E
G
Fig. 62: Maintenance prop
D
C
A
F
E
G
