Operation G 50/G 70/G 85
wc_tx000483gb.fm 32
3.9 Main Line Circuit Breaker

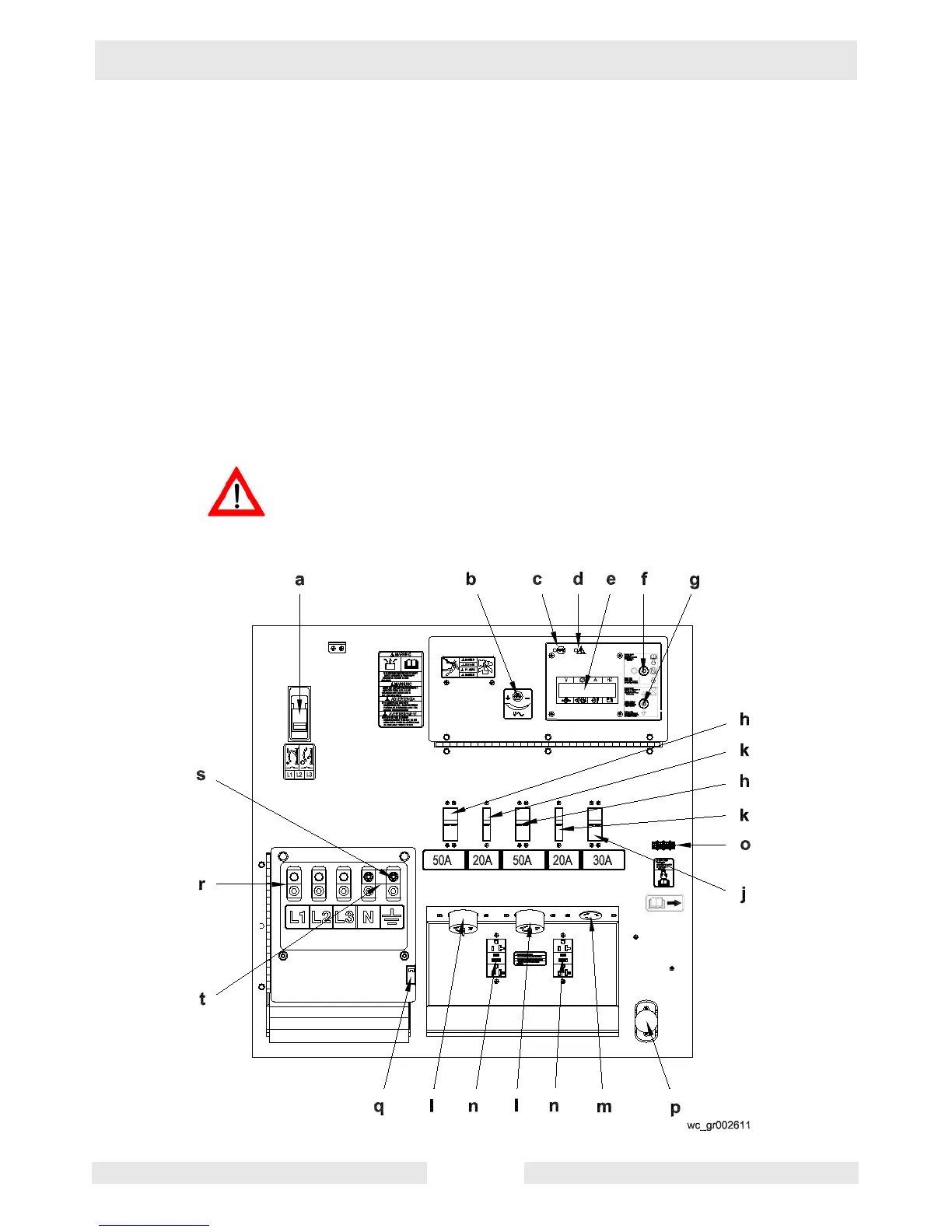

See Graphic: wc_gr002611
The main line circuit breaker (a) is located on the control panel.
In the “off” position, this breaker interrupts power from the selector
switch to the terminal lugs at the bottom of the generator panel.
NOTICE: Before shutting down the generator or performing any
service to the generator unit, make sure the main circuit breaker is in
the off “O” position.
NOTICE: The convenience receptacles are not connected through the
main line circuit breaker but are connected directly to the generator
windings. As a result, the receptacles are powered even with the main
breaker in the “off” position. To turn off power to receptacles, open the
individual circuit breakers provided for each.
DANGER OF ELECTROCUTION! High voltage is present inside this
panel when the generator is operating!
DANGER
