Wacker Neuson GPS 8500 Repair Manual

Disassembly and Assembly GPS 8500/GPS 9700
wc_tx000829gb.fm 42
Continued from the previous page.

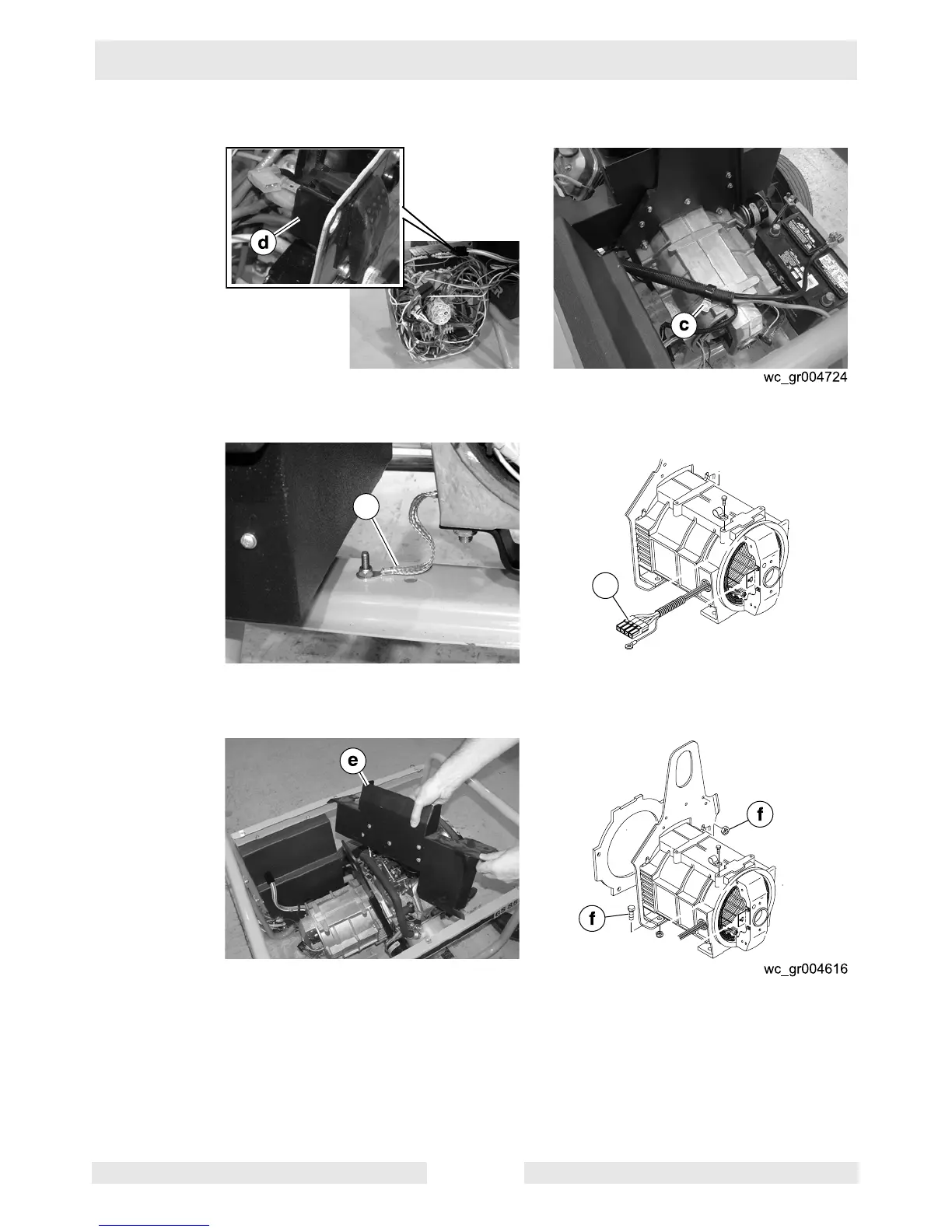

5. Connect the blue wire at the auto idle switch (d).
6. Install the screw (c) that secures the battery cable.
7. Connect the ground wire (g) to the frame.
8. Slide the connector (h) into the control box.
9. Install the engine exhaust guard (e).
10.Install the hardware (f) that secures the lifting eye.
This procedure continues on the next page.
wc_gr004718
g
h
