Wacker Neuson GPS 8500 Repair Manual

GPS 8500/GPS 9700 Disassembly and Assembly
wc_tx000829gb.fm 41
4.10 Installing the Stator and Rotor
Prerequisites  Engine shut down
 Engine cool
Procedure Follow the procedure below to install the stator and rotor.

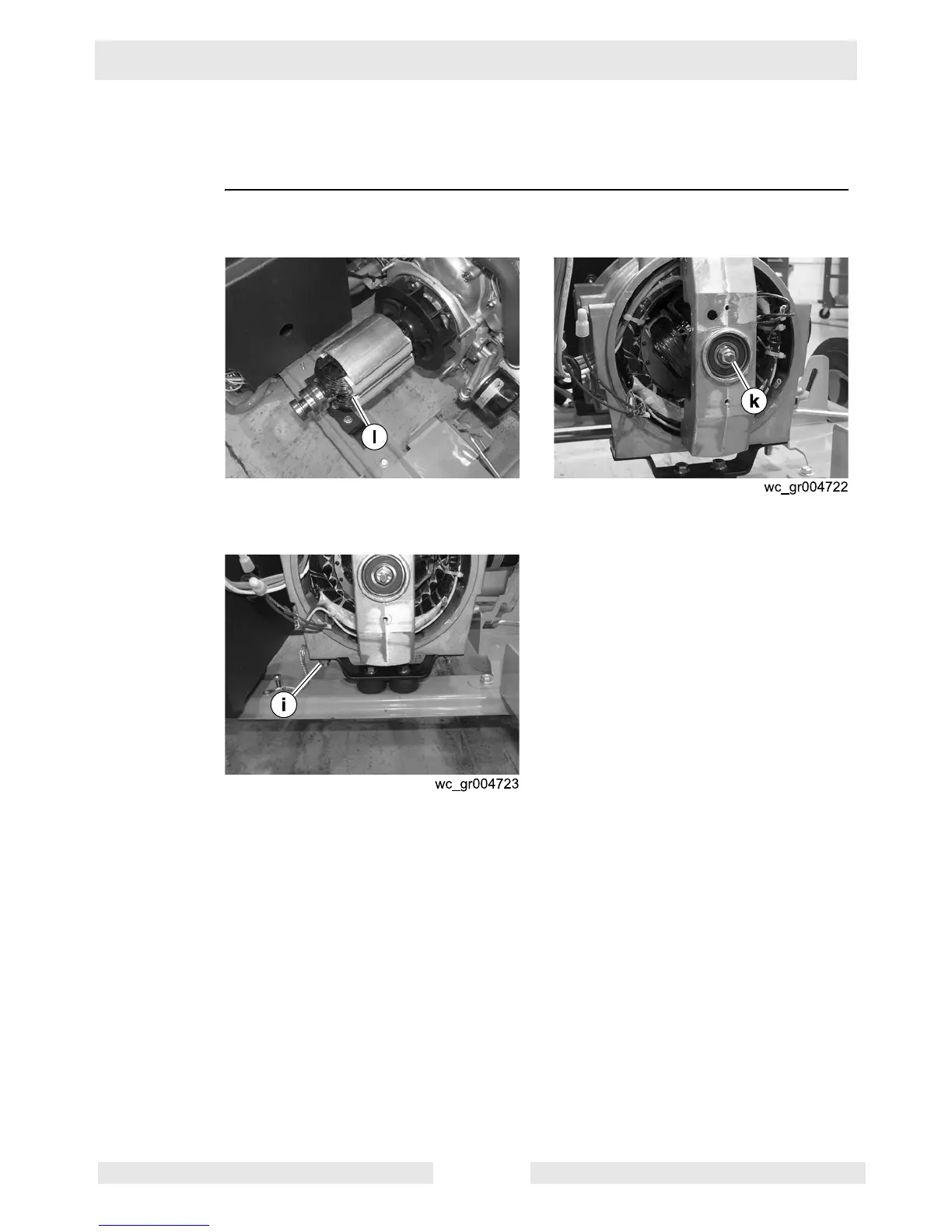

1. Slide the rotor (l) onto the engine shaft.
2. Install the threaded rod (k) into the rotor.
3. Install the screws and nuts (i) that secure the shock mount bracket to the stator.
4. Slide the AVR wires out of the generator and into the control box.
This procedure continues on the next page.
