9 Assembly of the HMS
100_0101_is_0003.fm 24

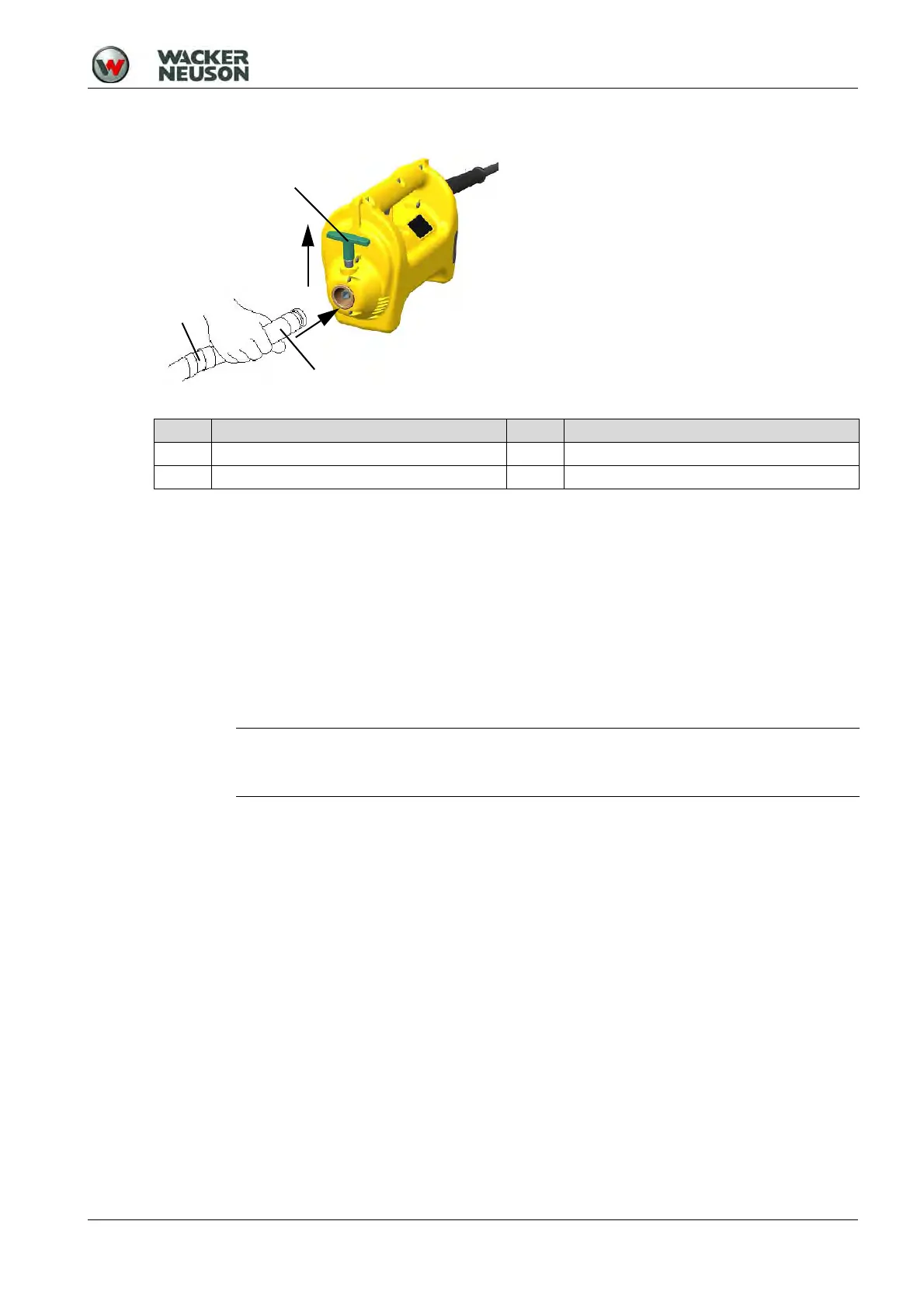

Connect the flexible shaft to the drive motor
1. Switch the drive motor off with the ON/OFF switch.
2. Pull the plug out of the plug receptacle.
3. Place the drive motor on the ground.
4. Pull the t-handle upwards.
5. Insert the coupling of the flexible shaft into the quick disconnect coupling of the drive motor and note
the detent. In the process, the shaft core is received in the shaft core adapter of the drive motor.
6. Release the t-handle.
7. Rotate the flexible shaft until the quick disconnect coupling locks into place.
8. Pull on the flexible shaft to control whether the quick disconnect coupling is completely locked into
place.
Item Designation Item Designation
1 Flexible shaft 3 T-Handle
2 Coupling piece
NOTICE
If the shaft core of the flexible shaft is new, you have to run in the drive motor for about 5
minutes with a connected flexible shaft (possibly also with the vibrator head).
