SET-UP
ATTACH RETURN HOSE
1. Be sure motor switch is turned OFF.
2. Screw brass fitting of return tube into upper port on
side of pump. (The brass fitting is located in the
literature set.) Tighten firmly by hand. See figure
above.
3. Press return tube (small tube) to brass fitting and
fasten with clamp. See Figure 9.
ATTACH PAINT HOSE
1. Attach high pressure hose to hose port, using an
adjustable wrench to tighten firmly. (See illustration
above.)
2. Attach gun to other end of high pressure hose.
Tighten securely with two adjustable wrenches. See
Figure 10.

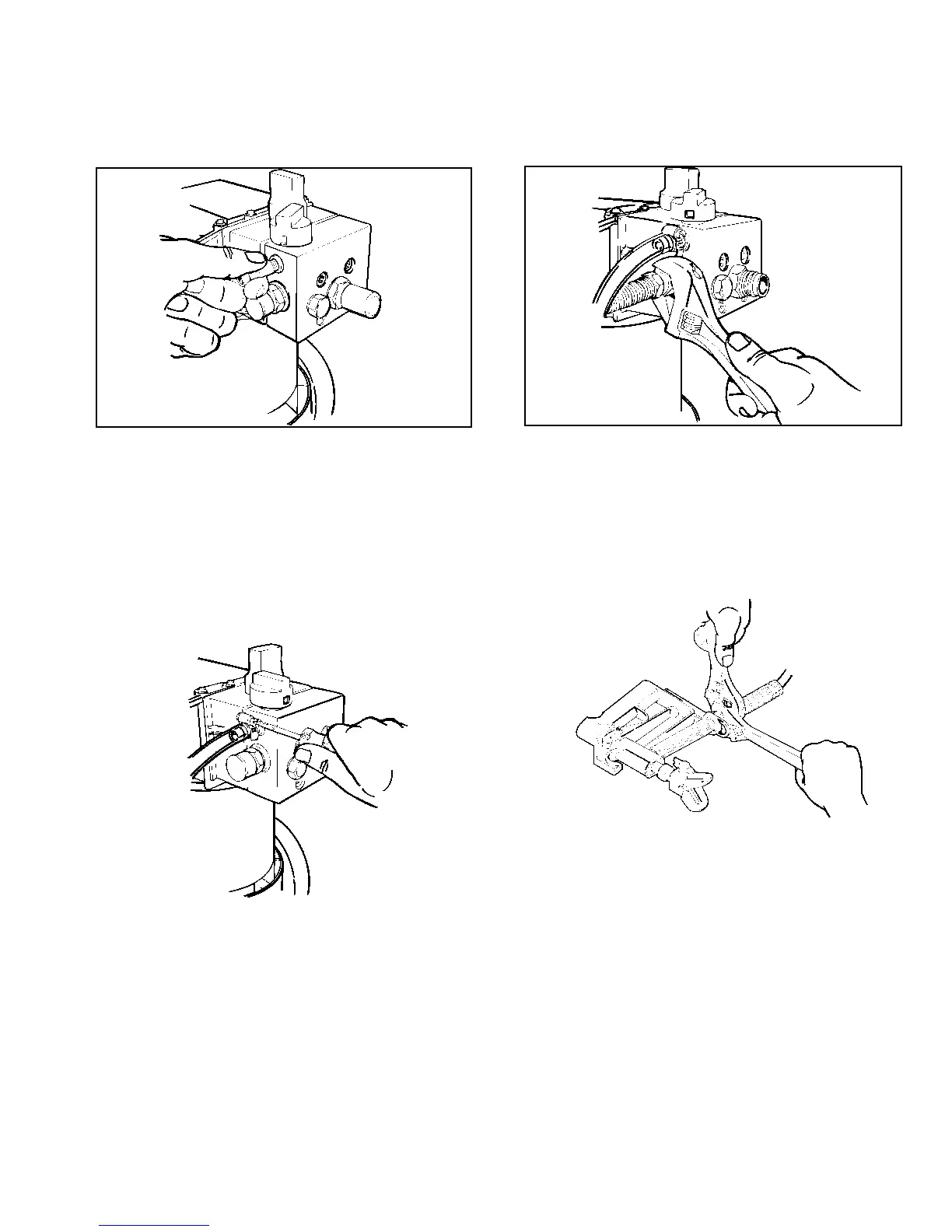

Figure 9 - Fastening Return Tube with Clamp
3. Plug unit into a properly grounded outlet or heavy
duty grounded extension cord. Do not use more
than 100 feet of cord. If you must spray a long
distance from a power source, use more paint hose,
not more extension cords. Use a minimum size of 16
gauge electric cord for 50 feet; 12-14 gauge for 100
feet.
Figure 10 - Attaching High Pressure Hose to Gun.
To Next Page
