WAGNER 505 User Manual

2
CONTENTS
General Description ....................................................... 2
Safety Precautions ...................................................... 3-6
Extension Cord............................................................... 7
Grounding Instructions ................................................... 7
Pressure Relief Procedure ............................................. 8
Set Up ....................................................................... 9-11
Priming .................................................................... 12-14
Spraying .................................................................. 15-18
Short Term Storage...................................................... 19
Cleanup and Long Term Shutdown ........................ 20-22
Maintenance........................................................... 23, 24
Optional Hopper ........................................................... 25
Trouble Shooting .................................................... 26, 27
Parts Lists ............................................................... 28-30
Accessories List ........................................................... 31
Warranty........................................................ Back Cover
Components:
The shipping carton for your 505 Painting System contains the following components:
Cart frame with wheels, motor and pump attached.
Cart handle
Pail bracket/cart foot
Suction set and return tube
Spray gun and filter
Spray tip and gasket
Three bolts, washers and wing nuts
25-foot 3/16-inch higher pressure hose
General Description
The Wagner 505 High Performance Airless Sprayer is a
precision power tool used for spraying many types of
materials. It is a relatively simple machine to operate,
however, a basic understanding of its components is
necessary.
Read and follow this instruction manual carefully for proper
operating instructions, maintenance and safety
information.
Specifications
Weight: ................................................... 27 lbs. (12 kg )
Capacity: ...............................................Up to 1/3 gallon
(1-1/4 liters) per minute
Power Source: ............................ 1/3 HP Electric Motor,
totally enclosed, fan cooled.
Power Requirement: ......................... 15 amp minimum
circuit on 115 VAC, 60 HZ current.
Generator – 15 amp A/C.
Spraying Pressure: ..............................Up to 2,500 psi.
Safety Features: .................. Spray gun safety lock and
pressure diffuser; built-in tip safety
guard; priming knob for safe
pressure release.
Portability:........................ Compact design, light weight
for easy movement.
Capability: ............................ Sprays a variety of paints,
oil base, latex, primers, stains,
preservatives and other nonabrasive
materials, including pesticides and
liquid fertilizers.
Spare Outlet Spring, P/N 0047485
Spare Tip Seal , P/N 0156713
Return tube fitting , P/N 0088715
Operator’s manual

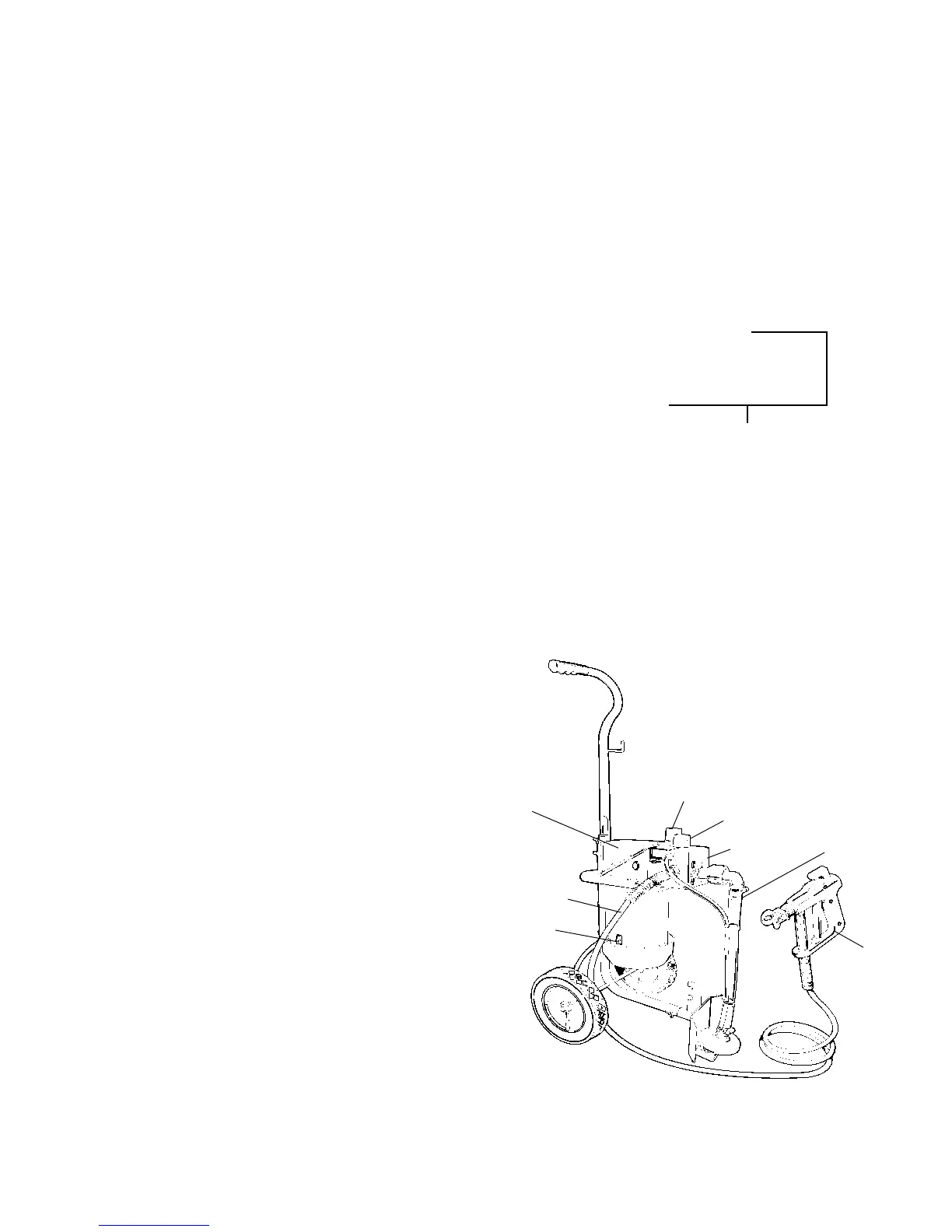

Figure 1 – Wagner 505 Airless Sprayer
Priming Knob
On/Off Switch
ARE LOCATED IN THE
LITERATURE SET WITH
REGISTRATION CARD
Paint Hose
Hydraulic Pump
Suction Set
Paint Block
Spray Gun
Pressure Control
Knob
