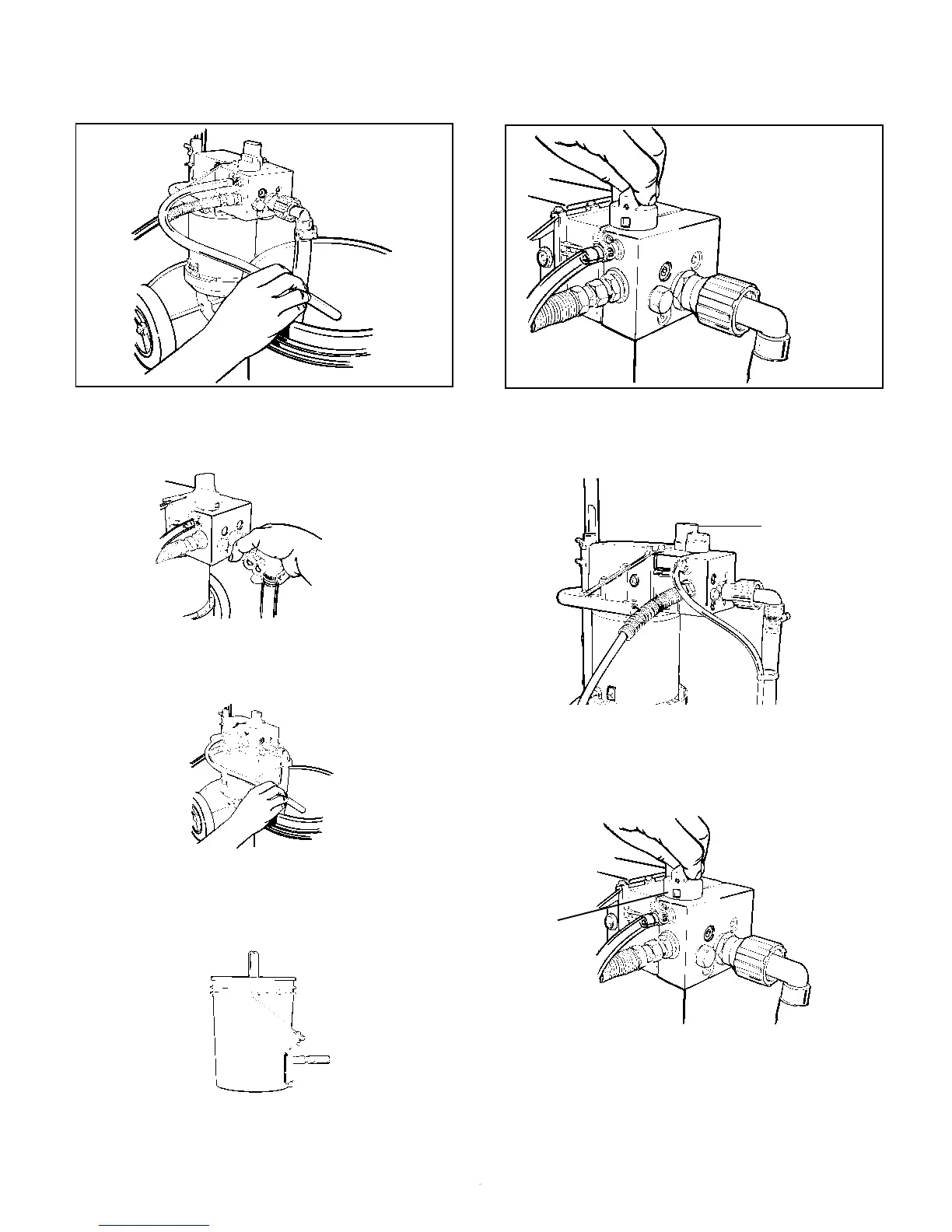

WAGNER 505 - Attach Suction Set; Prime the Pump

13
Figure 17 - Attaching Paint Pail Handle
PRIME THE PUMP
1. Attach Suction Tube to inlet valve and tighten firmly
by hand. See Figure 15. Be sure threads are straight
so the fitting turns freely without binding.
Figure 15 - Attaching Suction Tube
2. Place suction tube and return tube in paint. See
Figure 16.
1. Make sure the PRESSURE CONTROL KNOB is at
its lowest setting (counterclockwise). See Figure
18.
Figure 16 - Place Suction Tube and Return Tube in
Paint.
3. Set paint bucket onto pail bracket and attach
handle. See Figure 17.
Pressure Control
Knob
Figure 18 - Set Pressure Control Knob
2. Turn PRIMING KNOB to Prime A position. See
Figure 19.
Figure 19 - Priming Knob Setting
Prime A
Spray B
Knob
ATTACH SUCTION SET
PRIMING
13
(Do Not
cross thread)
