CLEAN UP
21. Lock gun, reduce pressure and turn Prime/Spray
Knob to prime A .
22. Lay unit back on handle so inlet valve is facing
upward. Clean threads of inlet valve with a damp
cloth. Fill inlet valve with light household oil. See
Figure 43. Slowly increase pressure to distribute the
oil through the pump. Turn Prime/Spray Knob from
prime A to spray
BB
BB
B to distribute oil. Replace large
suction tube to inlet valve.

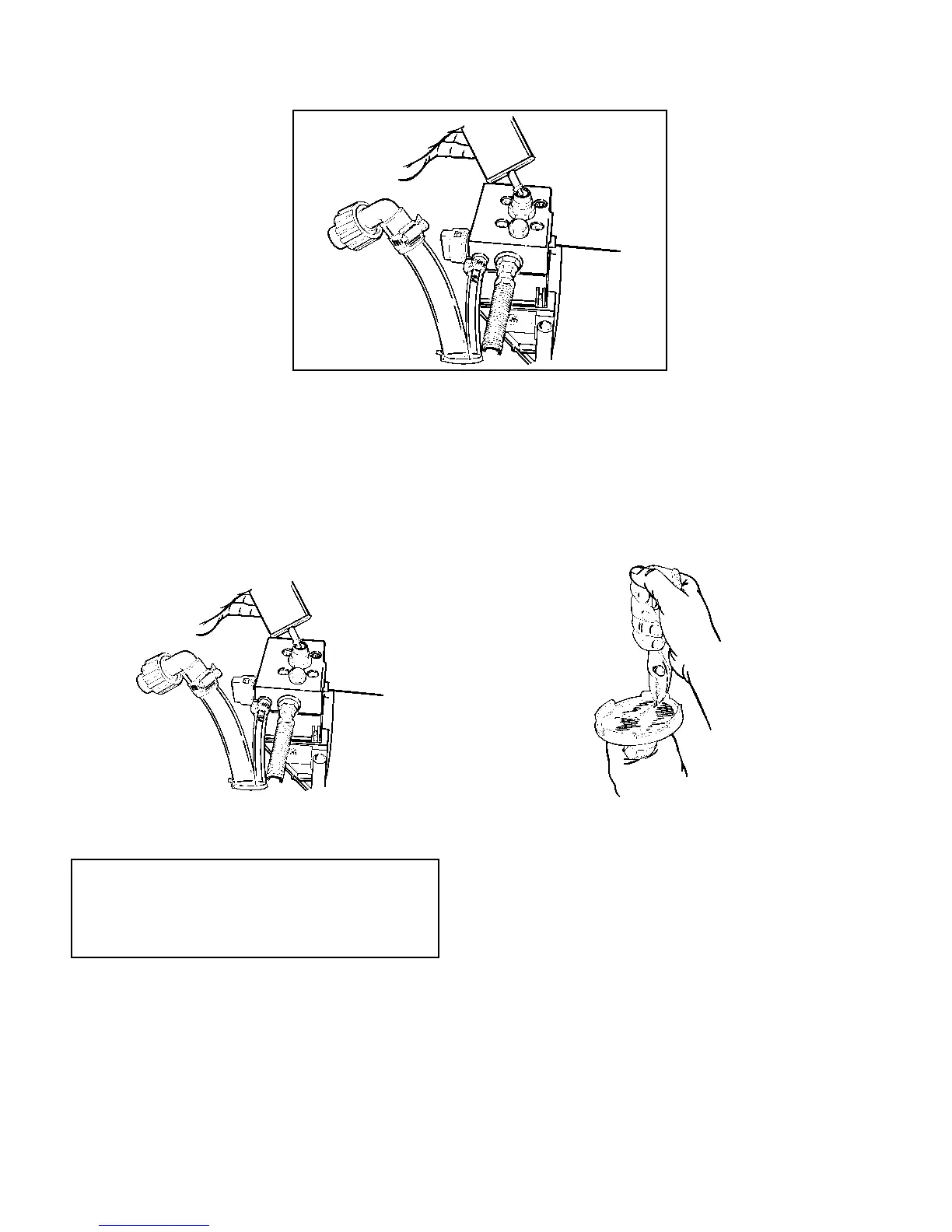

Figure 43 - Fill Inlet Valve With Oil
Figure 44 - Remove And Clean Filter
25. Wipe entire unit, hose and gun with a damp cloth to
remove accumulated paint.
23. Turn Prime/Spray Knob to prime A , reduce pres-
sure, shut sprayer off. Unplug sprayer. Refer to
Pressure Relief.
24. Remove and clean suction set filter in clean water or
solvent with soft brush. Reassemble.
IMPORTANT!
Proper cleaning and oiling of the pump after use
are the most important steps you can take to insure
proper operation after storage.
