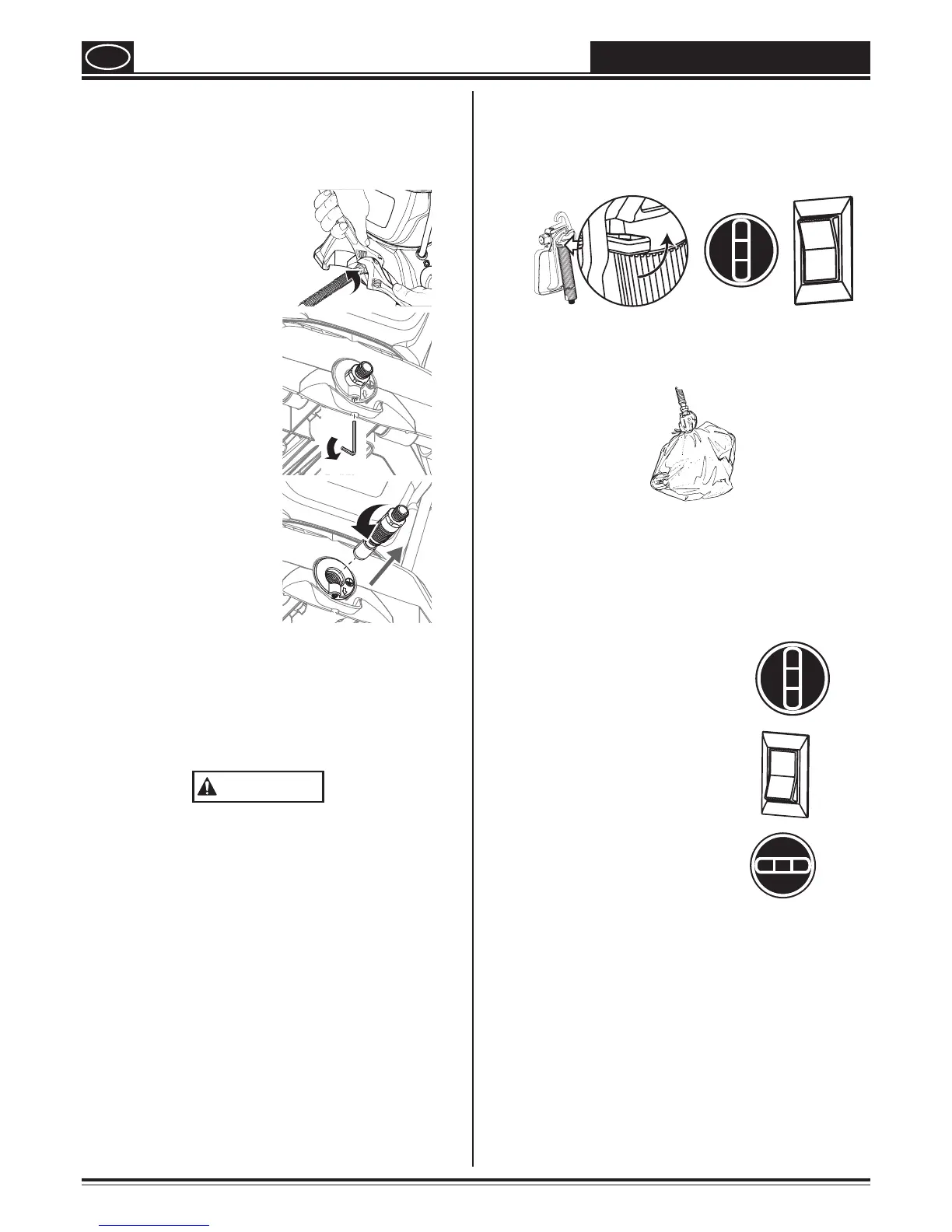

Replacing the outlet valve
Replacement of the outlet valve may be necessary if
your spray performance remains poor after having
performed all the steps contained in the Spraying
Troubleshooting section of this manual.
1)
Remove the high-pressure
hose from the outlet
valve using two spanners.
2) Loosen the screw (2.5 mm
Allen key) on the bottom of
the outlet valve, but do not
remove it.
3) Remove the outlet valve
from the base unit using a
spanner.
4) Check the outlet valve and
clean thoroughly (especially
the ball seat on the back).
Replace if necessary.
5) Inspect the inside of the
outlet valve housing.
Remove any accumulated
paint.
6) Reinsert the new or cleaned
outlet valve (tighten into
outlet valve housing with an
adjustable wrench).
7) Re-tighten the screw.
WARNING
Securely tighten the screw to ensure grounding of the
hose and gun.
MAINTENANCE / STORAGE
Short-term storage (up to 8 hours)
Shutdown
1)
Perform all the steps of the PRESSURE RELIEF
PROCEDURE (page 8).
O
2) Pour 1/2 cup water slowly on top of the paint to prevent
it from drying. Replace the hopper lid.
3) Wrap the spray gun assembly in a damp cloth and place
it in a plastic bag. Seal the bag shut.
4) Unplug the sprayer.
5)
Place the sprayer in a safe place out of the sun for
shortterm storage.
Startup
1)
Remove the gun from the
plastic bag and stir the water
into the paint.
2) Check to be sure the PRIME/
SPRAY knob is set to PRIME.
3) Plug sprayer in and turn the
switch to ON.
4) Turn the PRIME/SPRAY knob
to SPRAY.
5) Test the sprayer on a
practice piece and begin
spraying.
l
To Next Page
