OPERATING AND ASSEMBLY MANUAL
VERSION 08/2015 ORDER NUMBER DOC2350372

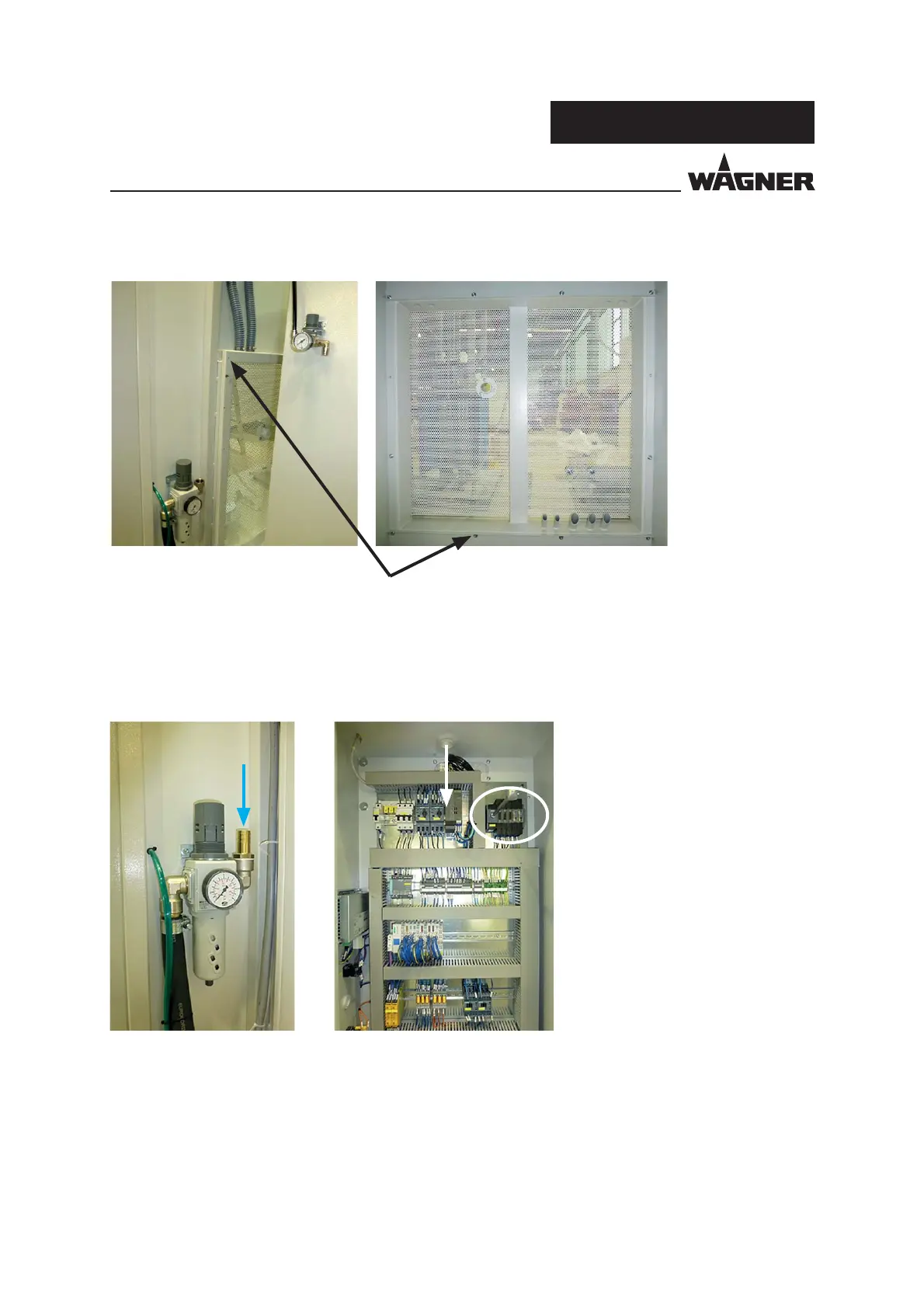

1. Fasten lter module (if available) to the powder center housing.
It is fastened with 12 screws from the back; two screws must have contact disks for
proper grounding.
2. Connect the compressed air supply to the air connection point (air connection point1";
supply at least 1.5"; pressure regulator setting 6 bar).
3. Introduce the electrical cables from the top or from the back and connect these to
the main terminal.
